5
ASSEMBLY INSTRUCTIONS

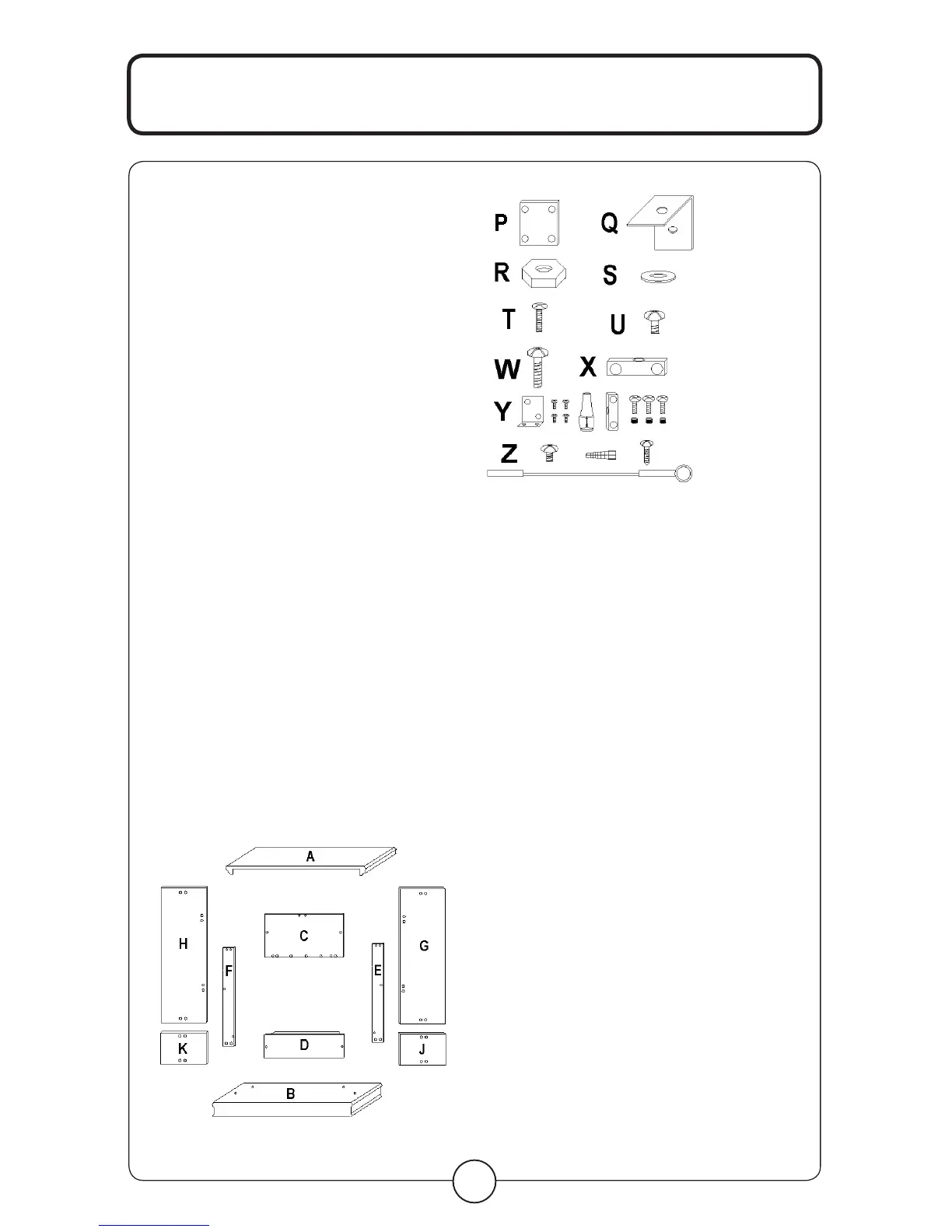

PARTS LIST:
Fireplace insert 1
A) Top panel 1
B) Base panel 1
C) Upper front panel 1
D) Lower front panel 1
E) Left front panel 1
F) Right front panel 1
G) Left upper side panel 1
H) Right upper side panel 1
J) Left lower side panel 1
K) Right lower side panel 1
P) Wood connectors 4
Q) Large “L” brackets 2
R) Nuts 2
S) Washers 2
T) Small screws 2
U) Short KD screws 5
W) KD screws 51
X) Plastic connectors 11
Y) SELF REPAIR SET
Touch-up repair paint (bottle)
L-shape bracket 2
Screws for L bracket 8
Plastic connectors 1
KD screws 3
KD nuts 3
Z) WALL ANCHOR SAFETY CABLE
Wall anchor 1
Screw for wall anchor 1
Screw for mantel 1
Safety cable 1
TOOL REQUIRED: PHILLIPS HEAD SCREWDRIVER
MANTEL ASSEMBLY:
CAUTION: Place a piece of cardboard or
protective sheet on the floor in order to avoid
scratching the decorative surface of your
mantle during assembly.
Please DO NOT fully tighten the KD screws
until all panels are assembled.
NOTE: Each plastic connector is pre-assem-
bled (pre-drilled) on the specific panels with
2 screws. If the KD screw(s) do not fit during
assembly, loosen the 2 (pre-drilled) screws
to adjust the Plastic Connector until the KD
screws are able to be installed. Tihten all KD
screws once all panels are assembled.
Step 1: Attach 11 PLASTIC CONNECTORS [X] to
PANELS C, E, F, G, H, J and K as shown in Fig.
A (2 pcs KD screws for each PLASTIC CON-
NECTOR). Attach PANELS H and K together
with 4-HOLES WOOD CONNECTOR [S] and 4
KD screws. Attach PANELS G and J together
with 4-HOLES WOOD CONNECTOR [S] and 4
KD screws. See Fig A.
