QUANTA 230W Security Floodlight - Connection Diagram

Wall Plate
Cable Entry
Blue Green/Yellow Brown
(N) (E) (L)
Match the three pins
on the unit to the wall
plate.
Connect the mains
cable to N,E & L
connections in the
terminal block

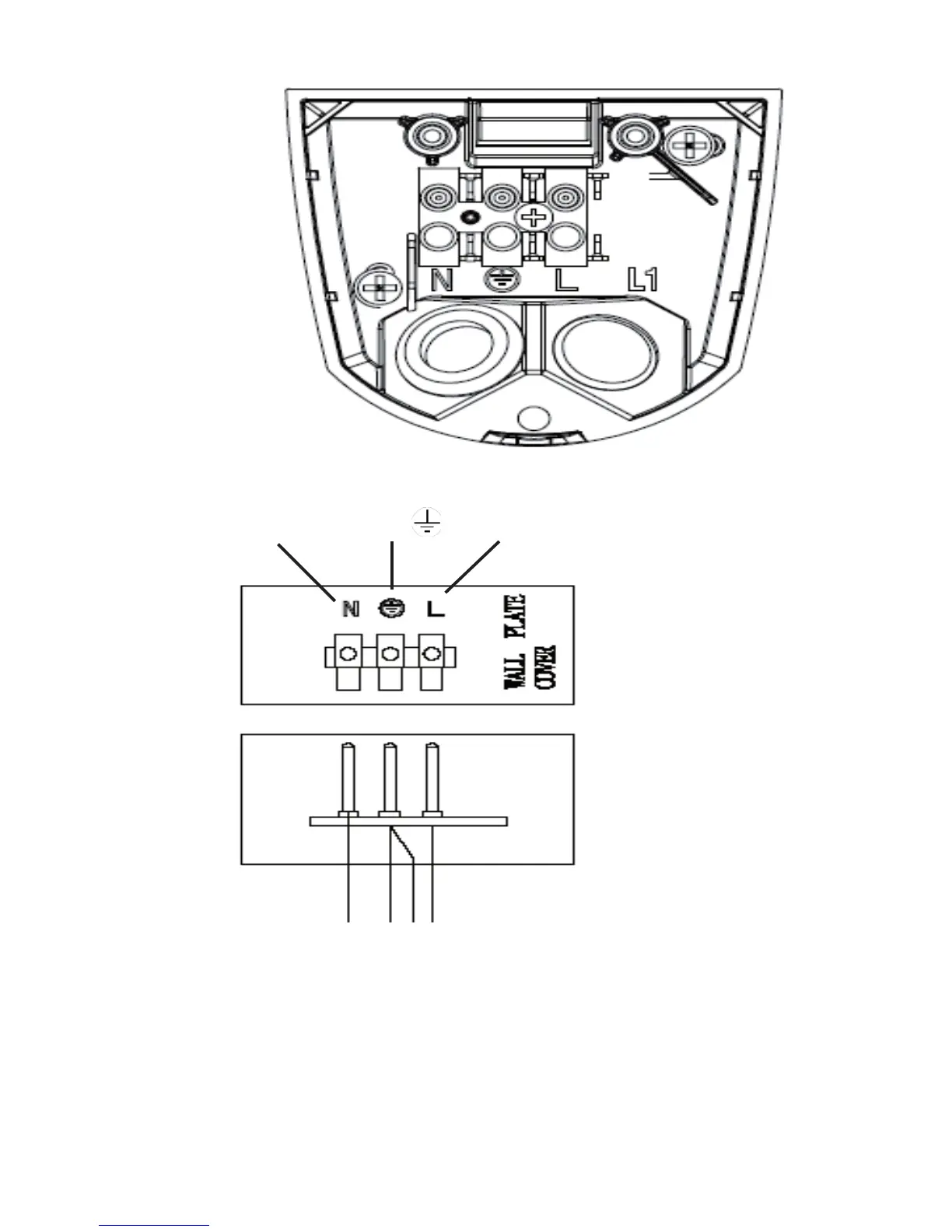

CONNECTION DIAGRAM
