780 Handheld Test Instrument Page 15

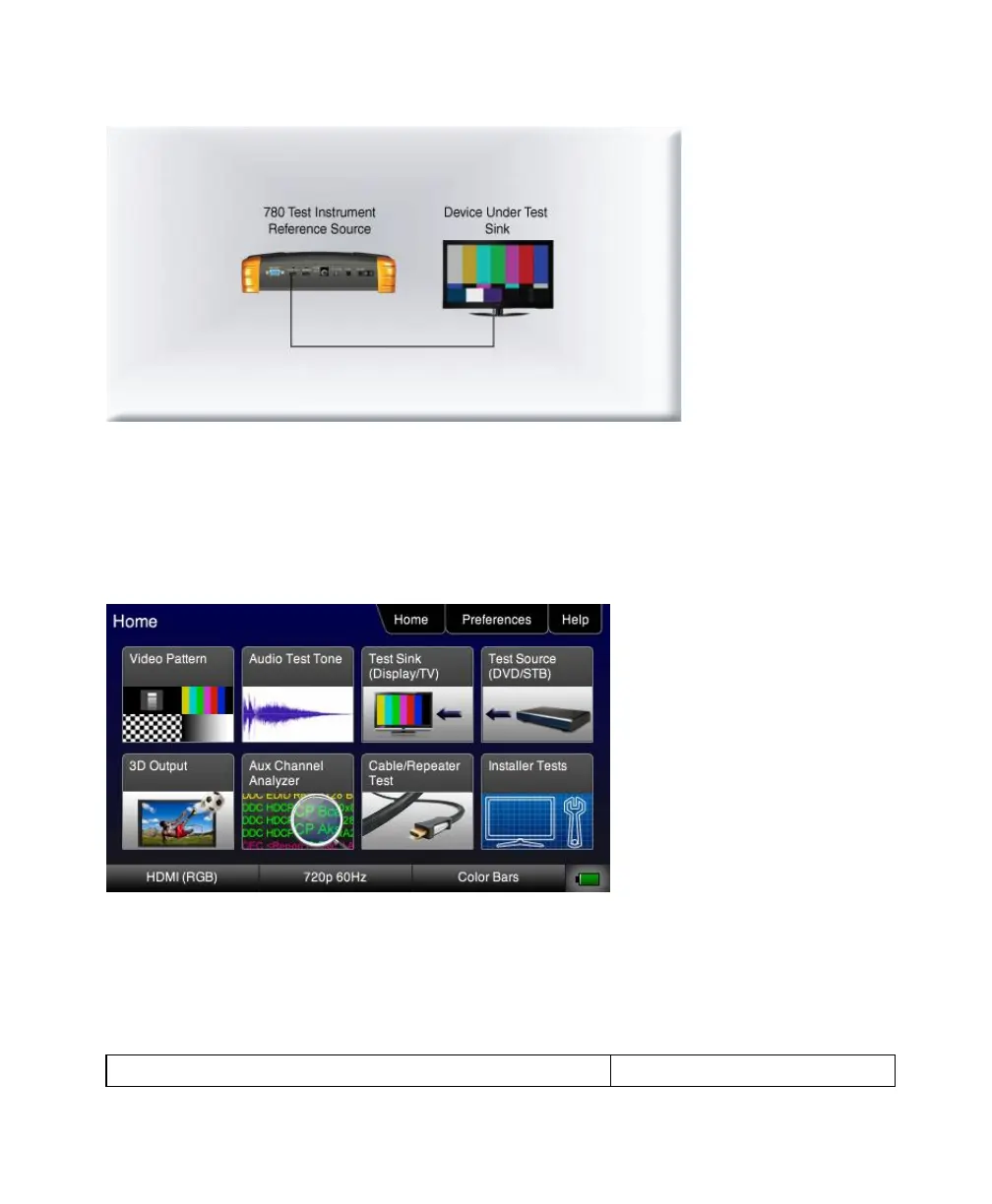

4.4.2 Procedures for Rendering 3D Patterns on HDMI Sink Device
Use the procedures below to render 3D test patterns on an HDMI sink.
1. Follow the procedures provided in the Section entitled ―Selecting a Signal Type and Resolution for configuring the
proper HDMI format.
2. From the Home menu select 3D Output. The Home menu is shown in the screen example below:
The folowing screen appears:
