780 Handheld Test Instrument Page 73
7.2.2 Procedures for Testing Downstream (Sink Test) with the Installer Utility
Use the following procedures to test the video from an HDMI sink device.

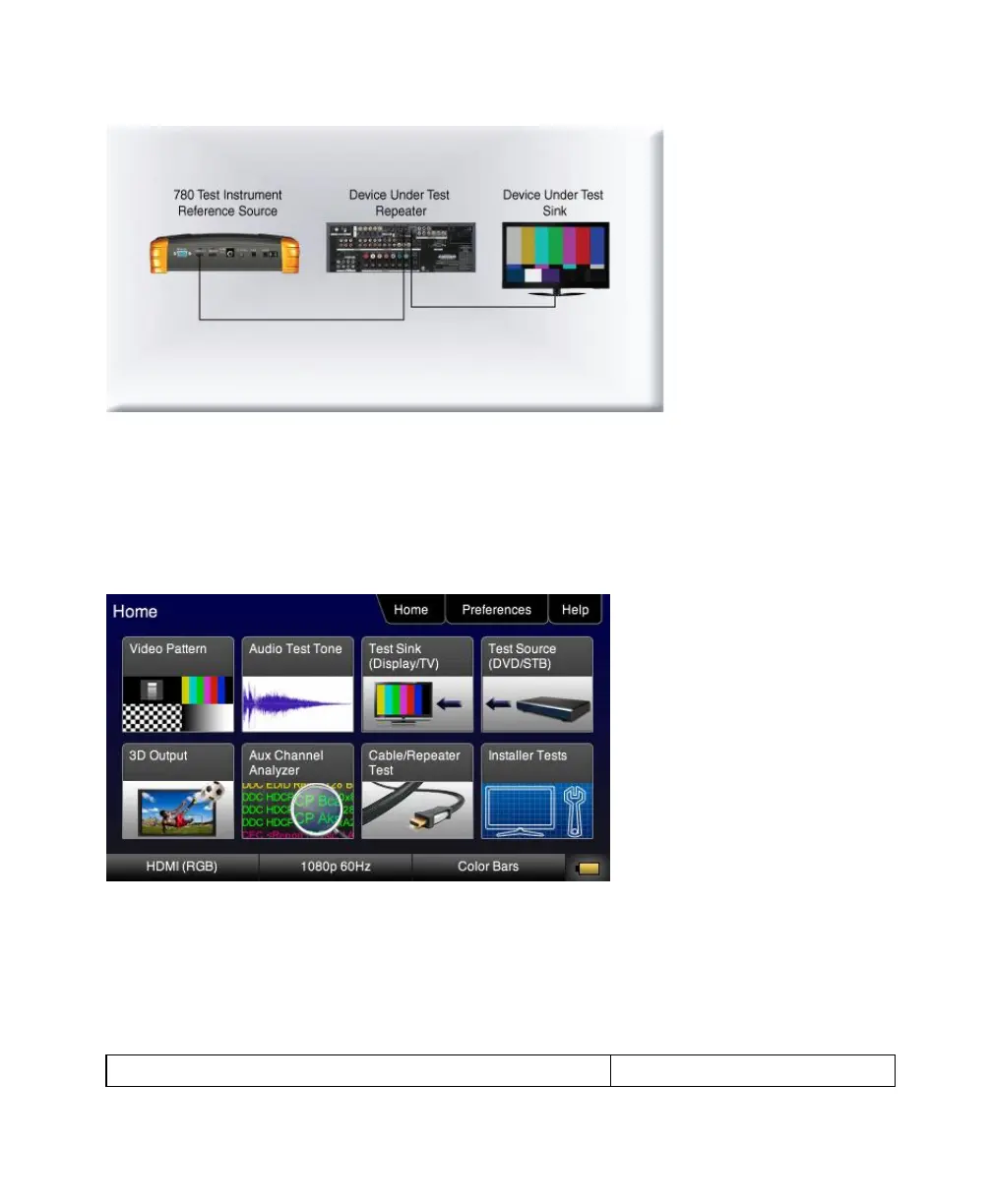

1. Make the physical connection between the 780 HDMI OUT port and the sink device under test using the
configuration instructions above or by following the instructions on the screen.
2. Touch select Installer Test from the top level menu shown below.
3. Touch select Sink Test from the Test Selection menu shown below.
To Next Page
