780 Handheld Test Instrument Page 80
7.4.2 Procedures for Testing HDMI Networks (Links) with the Installer Utility
Use the following procedures to test the video on an HDMI link with the Installer Utility.

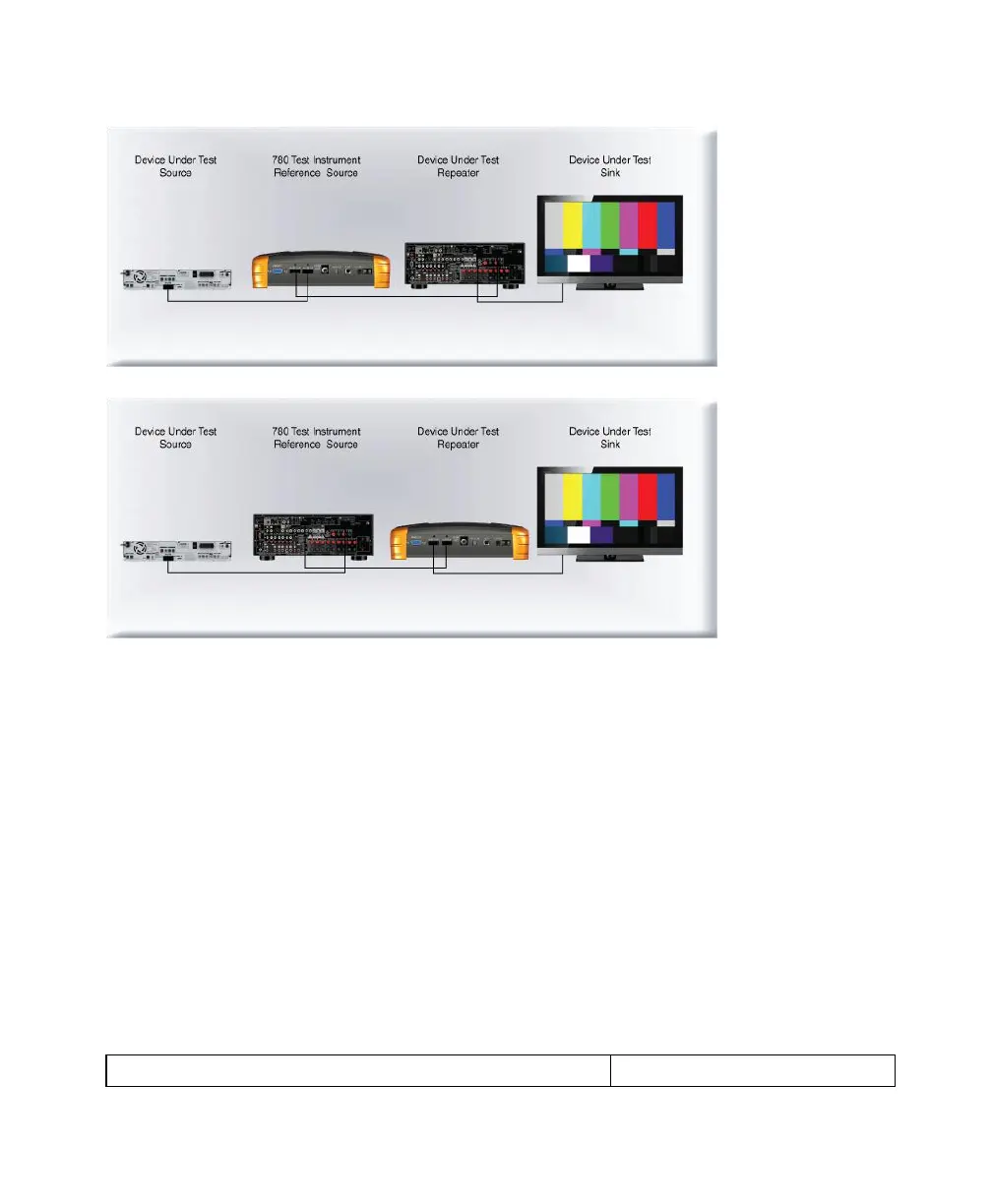

1. Make the physical connection between the 780 HDMI IN and OUT ports and the HDMI source and sink devices
under test using the configuration instructions above or by following the instructions on the screen.
2. Touch select Installer Test from the top level menu shown below.
