Quantum Data Product Guide Rev. A5
Page 5 October 13, 2015
4 804 Series Video Test Generators
The rack mountable 804, 804A and 804B Video Test Generators are optimized for testing modern HDMI flat panel TVs in manufacturing
facilities.

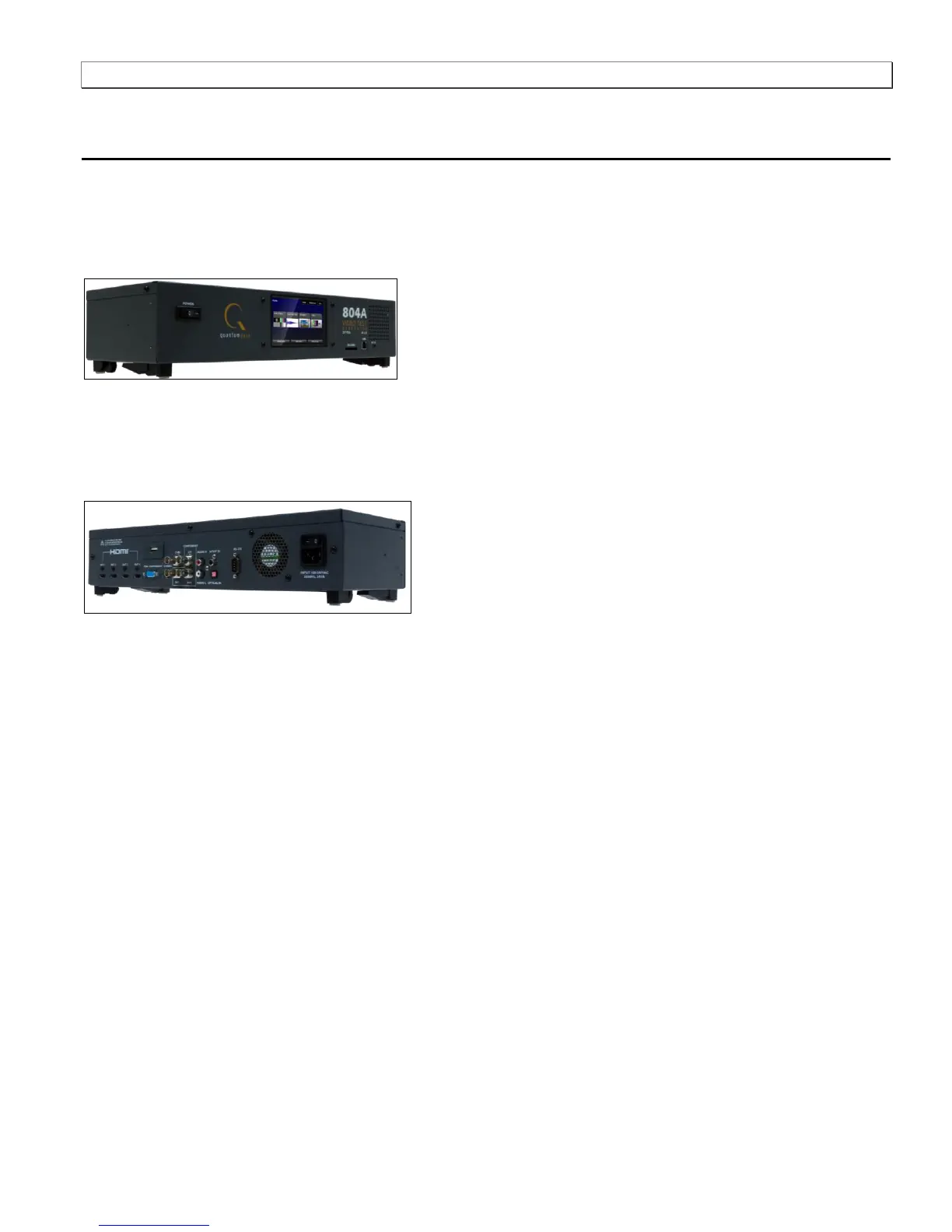

804A – Front View
804A/B – Rear View
There are three (3) 804 test instruments:
The 804 Video Generator - Features four (4) HDMI outputs—all active
simultaneously—for testing HDTVs with multiple HDMI inputs operating at
pixel rates up to 165MHz and TMDS rates up to 225MHz. The instrument is
also equipped with component analog and composite analog video.
Switching between video timings and images is fast. The 804 is equipped
with all the standard video timings and test patterns—including support for
3D—necessary for testing HDTVs including tests for HDMI protocols such
as HDCP, EDID and CEC.
The 804A Video Generator - Supports all the features and functions of the
804 instrument but supports HDMI testing at pixel rates and TMDS rates up
to 300MHz for testing 4K capable HDMI devices. The 804A also supports
HDMI 2.0 4:2:0 pixel encoding for testing ultra Hi-Definition TVs at 4K
resolutions at 60Hz.
The 804B Video Generator - Supports all the features and functions of the
804A instrument but supports HDMI testing at pixel rates and TMDS rates
up to 600MHz for testing 4K capable HDMI devices. The 804B also
supports HDCP 2.2 testing on HDMI 2.0 ultra Hi-Definition TVs.
