SPEAKER OUTPUT
LEFT
BRIDGED
RIGHT
POWER
PROTECT
QUANTUM AUDIO
GND REM FUSE+12V
POWER INPUT
SPEAKER OUTPUT
LEFT
BRIDGED
RIGHT
POWER
PROTECT
QUANTUM AUDIO
GND REM FUSE+12V
POWER INPUT
9 10

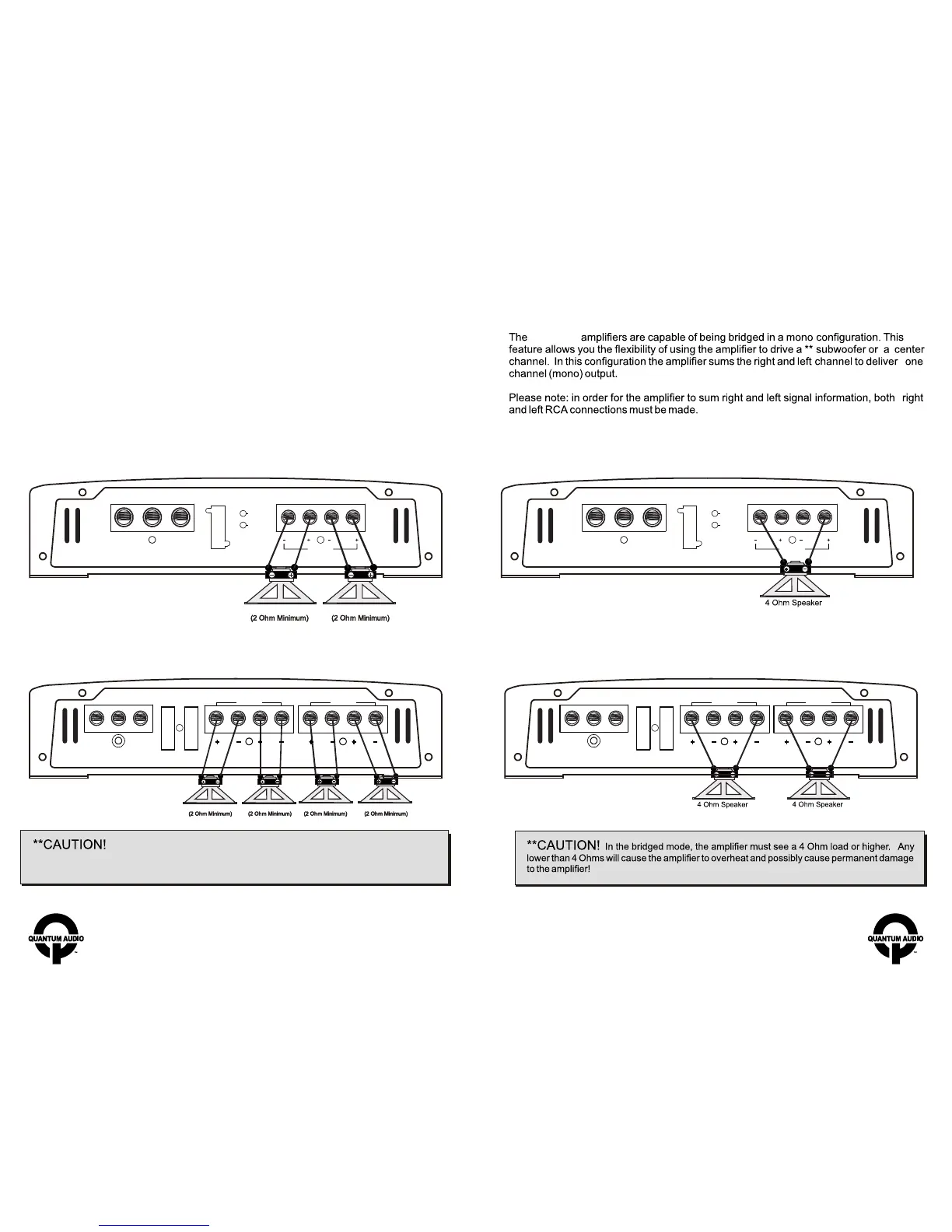

SPEAKER CONNECTIONS
(QE1200.2, QE2000.4, QE2400.4)
Make the speaker connections using speaker wire that is at least 16
gauge or heavier.
As with any audio component, proper phasing of the amplifier and speakers is essential
for strong bass response. When connecting, make sure that positive (+) from the amplifier
is connected to the positive (+) of the speaker, and the same for negative (-).
SPEAKER CONNECTIONS
(Bridged)
2 CHANNEL SPEAKER CONNNECTION
4 CHANNEL BRIDGED CONNECTIONS
Quantum
When in the stereo mode, the QE1200.2, QE2000.4 and QE2400.4 must
see a 2 Ohm load or higher. Any lower than 2 Ohms will cause the amplifier to lower heat
and possibly cause permanent damage to the amplifier!
4 Ohm Speaker
4 Ohm Speaker
2 CHANNEL SPEAKER CONNNECTION
4 CHANNEL BRIDGED CONNECTIONS
4 Ohm Speaker
4 Ohm Speaker
4 Ohm Speaker
4 Ohm Speaker
GND REM +12V
FUSE BRIDGED BRIDGED
CH1 CH2
SPEAKER OUTPUT SPEAKER OUTPUT
CH3 CH4
POWER INPUT
QUANTUM AUDIO
GND REM +12V
FUSE BRIDGED BRIDGED
CH1 CH2
SPEAKER OUTPUT SPEAKER OUTPUT
CH3 CH4
POWER INPUT
QUANTUM AUDIO
