Quantum Q6 Series - Page 19



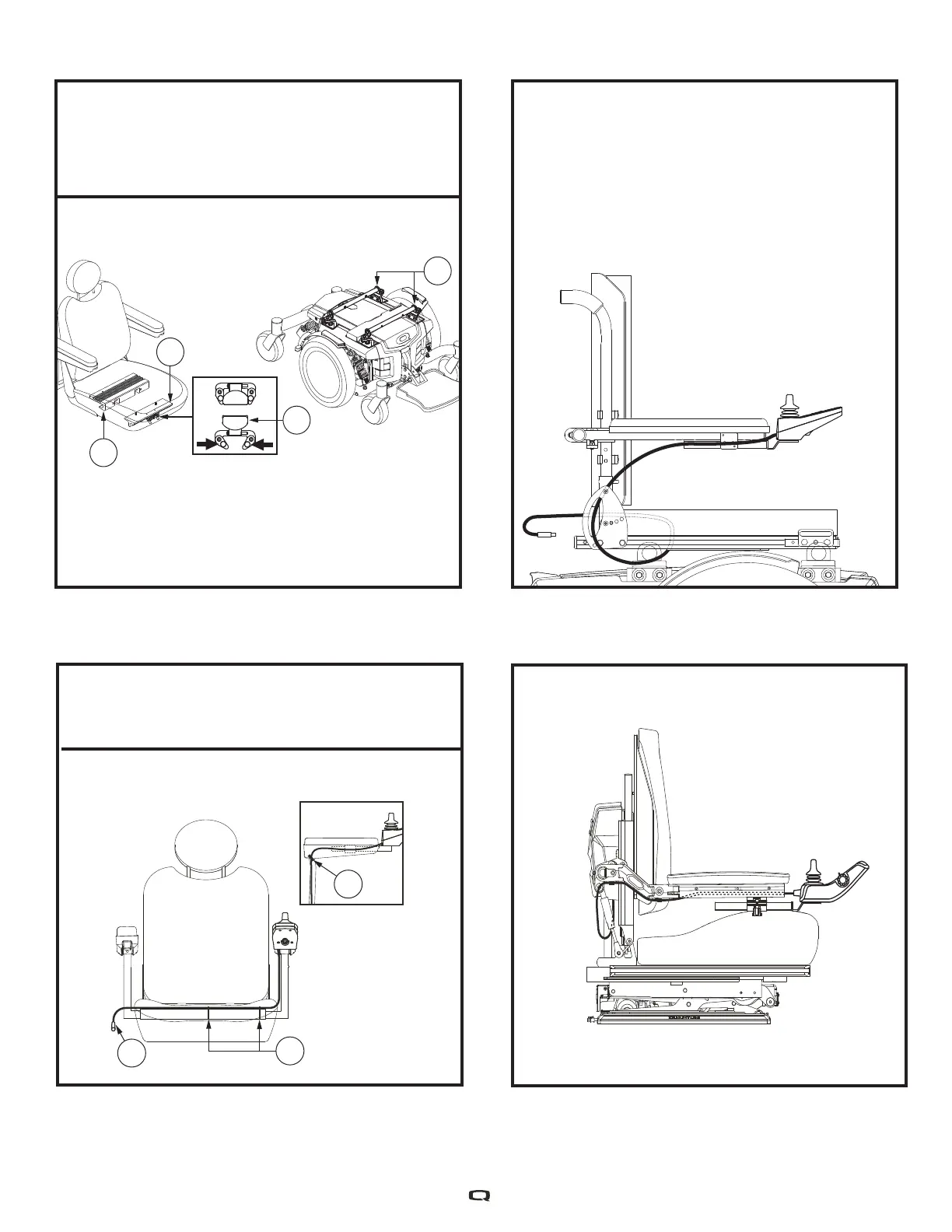

Figure 8. Controller Harness Routing on a Synergy
Seat
4
1
2
3
Figure 7. Universal Mounting System and Contour Seat
Identification Key
1. Rear Extrusion
2. Seat Latch Safety
3. Front Extrusion
4. Trapeze Bars
1
2
1
Figure 9. Controller Harness Routing on a Contour
Seat
Figure 10. Controller Harness Routing on a Tru-Balance®
Seat
Identification Key
1. Wire Ties
2. To Power Base
