Eagle 2000 – 2kW FM Broadcasting Amplifier

User’s manual – Page 13 of 66

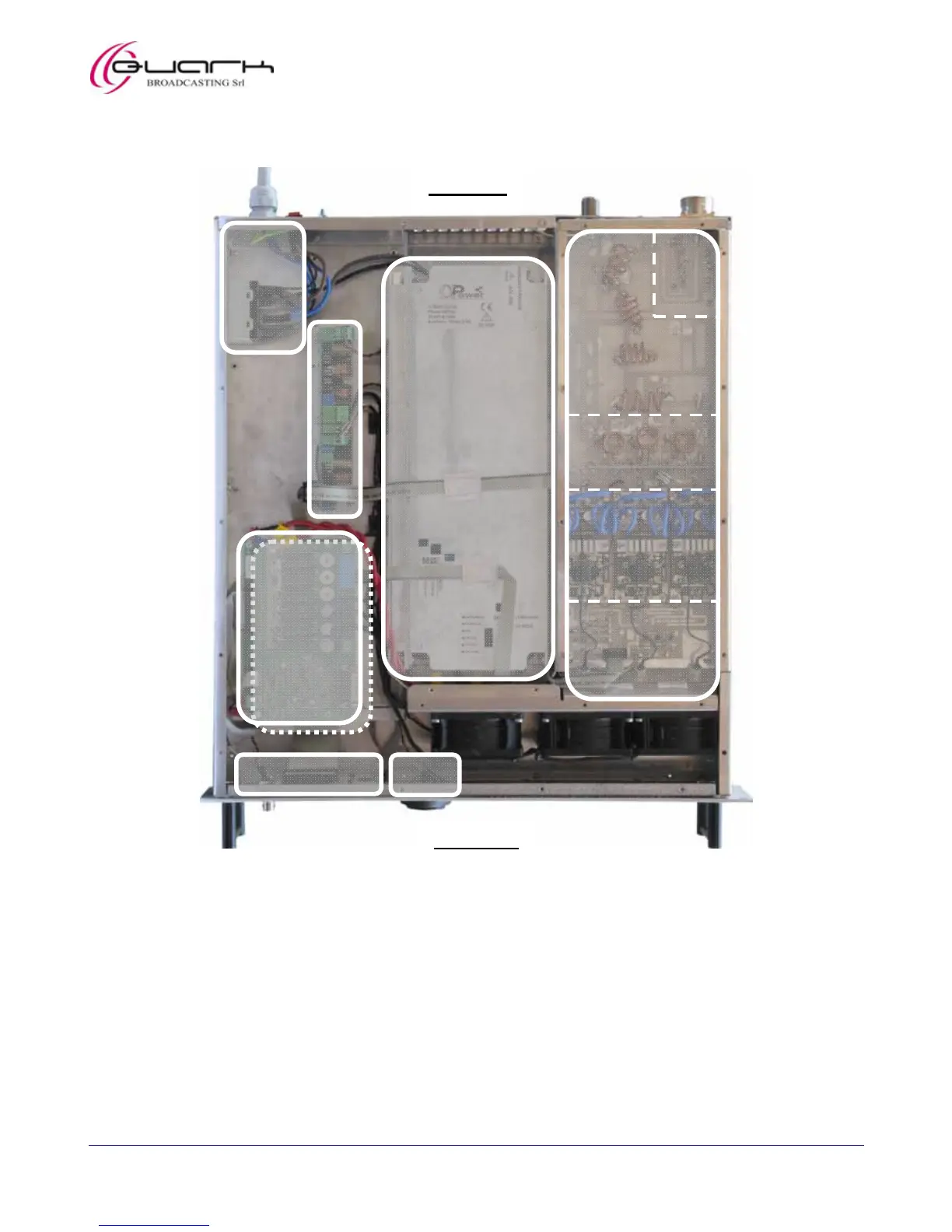

4.4 Internal top view - main parts location

[19] Digital encoder – multifunction knob (Ö

5.7).

[20] Display board (Ö

5.6).

[21] Analog board (Ö

5.4).

[22] Control (CPU) board (Ö

5.3) - installed underneath the analog board.

[23] Fans control board (Ö

5.5).

[24] Main power supply switch and AC power supply relay.

[25] Power Supply unit (Ö

5.1).

[26] Amplifier section / 3-ways Wilkinson splitter.

[27] Amplifier section / 800W power modules.

[28] Amplifier section / 3-ways Wilkinson combiner.

[29] Amplifier section / Low-pass filter.

[30] Amplifier section / Directional couplers.

Front side

Rear side

21/22
