Quarton ML-100 User Manual

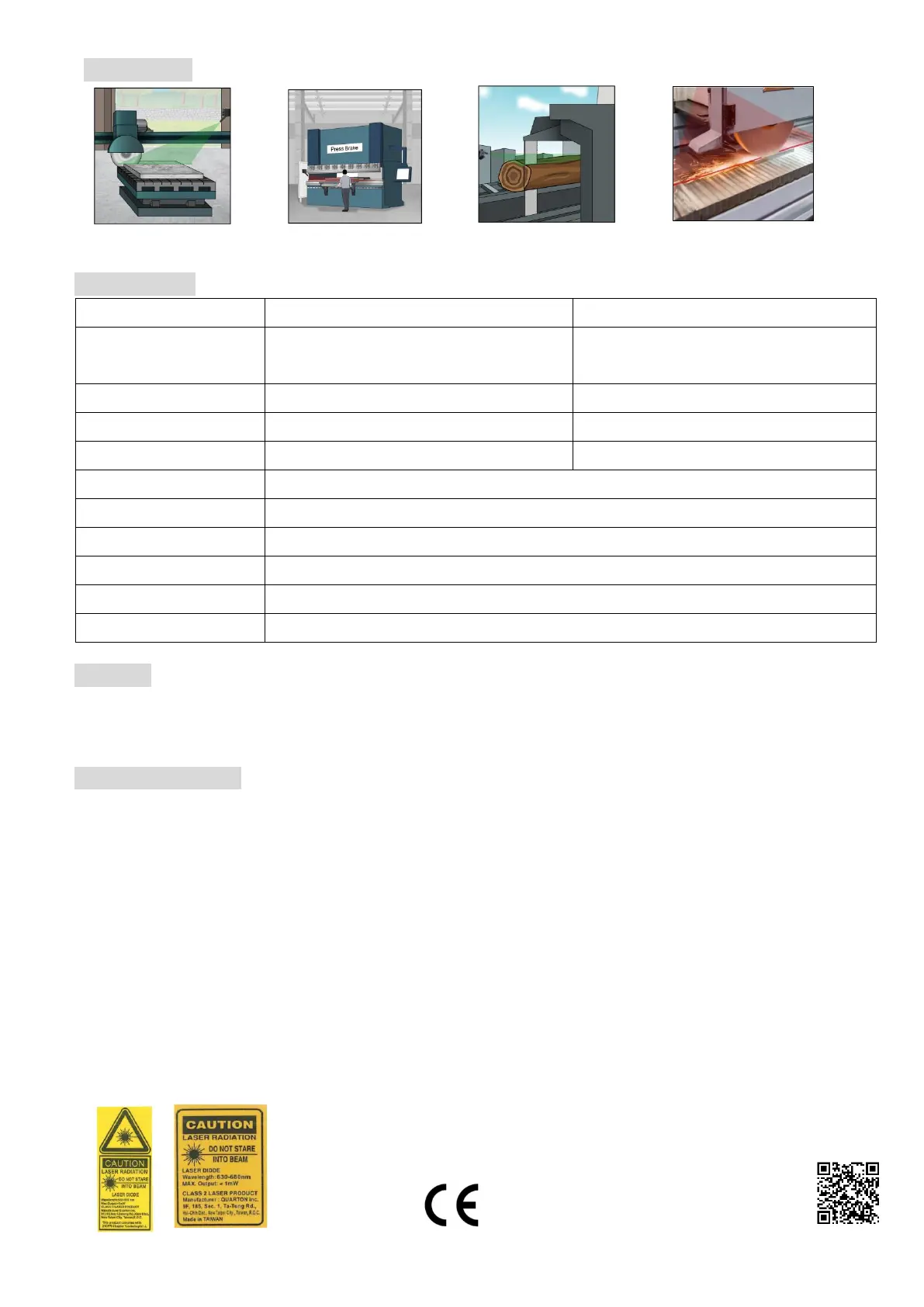

APPLICATIONS
SPECIFICATIONS
Model name
ML-100
ML-200
Dimension(L X W X H)
4.60”x2.13”x2.32” (11.7cm X 5.4cm X 5.9cm)
Switch cable : 67.5±1cm
4.60”x2.13”x2.32” (11.7cm X 5.4cm X 5.9cm)
Switch cable : 67.5±1cm
Weight
200±5g / 7.05±0.17 oz.
200±5g / 7.05±0.17 oz.
Wavelength
635 nm (Red)
520 nm (Green)
Width of laser line
<2mm at 4M
<3mm at 5M
Output power
CL II CW mode
Operating temp range
-20°C ~ 60°C / -4°F ~ 140°F
Emitting angle
>120 ﾟ
Housing
Metal
Finishing
Black anodized
Power
Type C (adapter included)
WARNING
Use of controls of adjustment or performance of procedures other than those
specified herein may result in hazardous radiation exposure
SAFETY PRECAUTIONS
Laser radiation is harmful to the eyes, never look directly into the laser beam or its direct reflection
1. Never aim the laser beam at persons’ eyes.
2. This unit must be used by experienced technical personnel only.
Do not leave the laser beam unattended.
3. Do not target vehicles or aircraft with the laser beam when the unit is used
Outdoors.
4. Do not look directly into laser beam with optical instrumentation unless adequate
protective filters are used to protect the eyes.
5. Avoid aiming the laser beam at mirror- likes surfaces. Remove any unnecessary
mirror-likes surface from the vicinity of the laser beam path.
6. The warranty will no longer exist once the product been taken apart.
Stone cutting
Press Brake
Wood cutting
Surface grinder
Safety Label
More Information:
https://www.quarton.com/laser-line-generators.htm
