9
5
5
5
(Type A)
(Type A)
11
1
2 3 4
8 11
12
9
765
10
Shipping
Screws
Lower guide

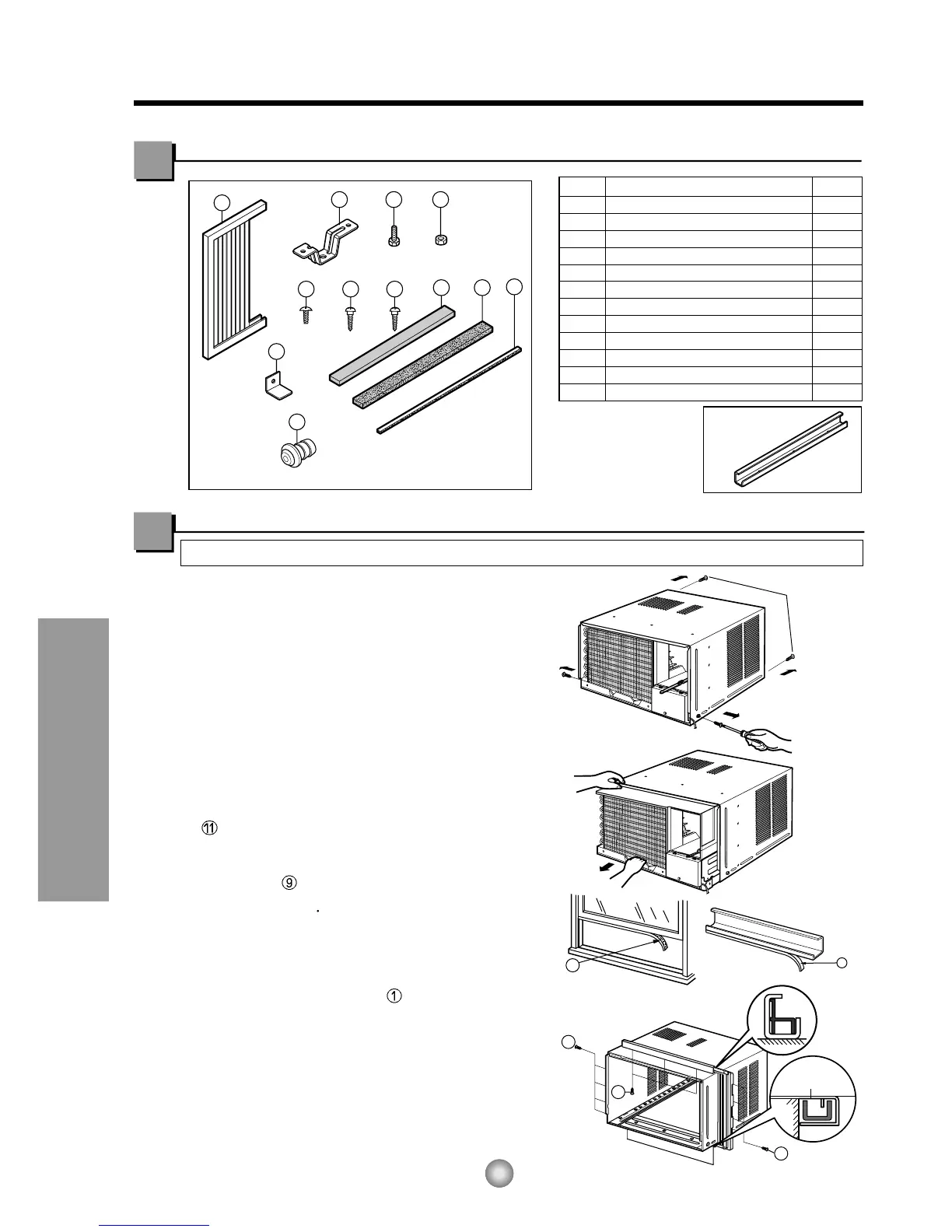

PREPARATION OF CHASSIS
1. Remove the screws which fasten the cabinet
at both sides and at the back.
2. Slide the unit from the cabinet by gripping the
base pan handle and pulling while bracing the
cabinet.
3. Cut the window sash seal to the proper
length.
Peel off the backing and attach the FOAM-PE
to the underside of the window sash.
4. Remove the backing from the top upper guide
FOAM-PE and attach it to the bottom of
the upper guide
5. Attach the upper guide onto the top of the
cabinet with 3 type A screws.
6. Insert the Frame Curtain into the upper
guide.
7. Fasten the curtains to the unit with 4 Type
A screws.
10
Features and Installation
Suggested Tool Requirements
Installation Kit Contents
SCREWDRIVER(+, -), RULER, KNIFE, HAMMER, PENCIL, LEVEL
NO. NAME OF PARTS Q'TY
1 FRAME CURTAIN 2
2 SILL SUPPORT 2
3 BOLT 2
4 NUT 2
5
SCREW(TYPE A) 10mm (25/64")
16
6
SCREW(TYPE B)
3
7
SCREW(TYPE C)
5
8 FOAM-STRIP 1
9
FOAM-PE (466mm x 10mm x 2mm)
1
10
WINDOW LOCKING BRACKET
1
11
FOAM-PE
(920mm x 30mm x 2mm)
1
12 DRAIN PIPE 1
D5.1mm(3/16")/16mm(5/8")
D4.1mm(5/32")/16mm(5/8")
■ Top retainer bar is
in product package.
