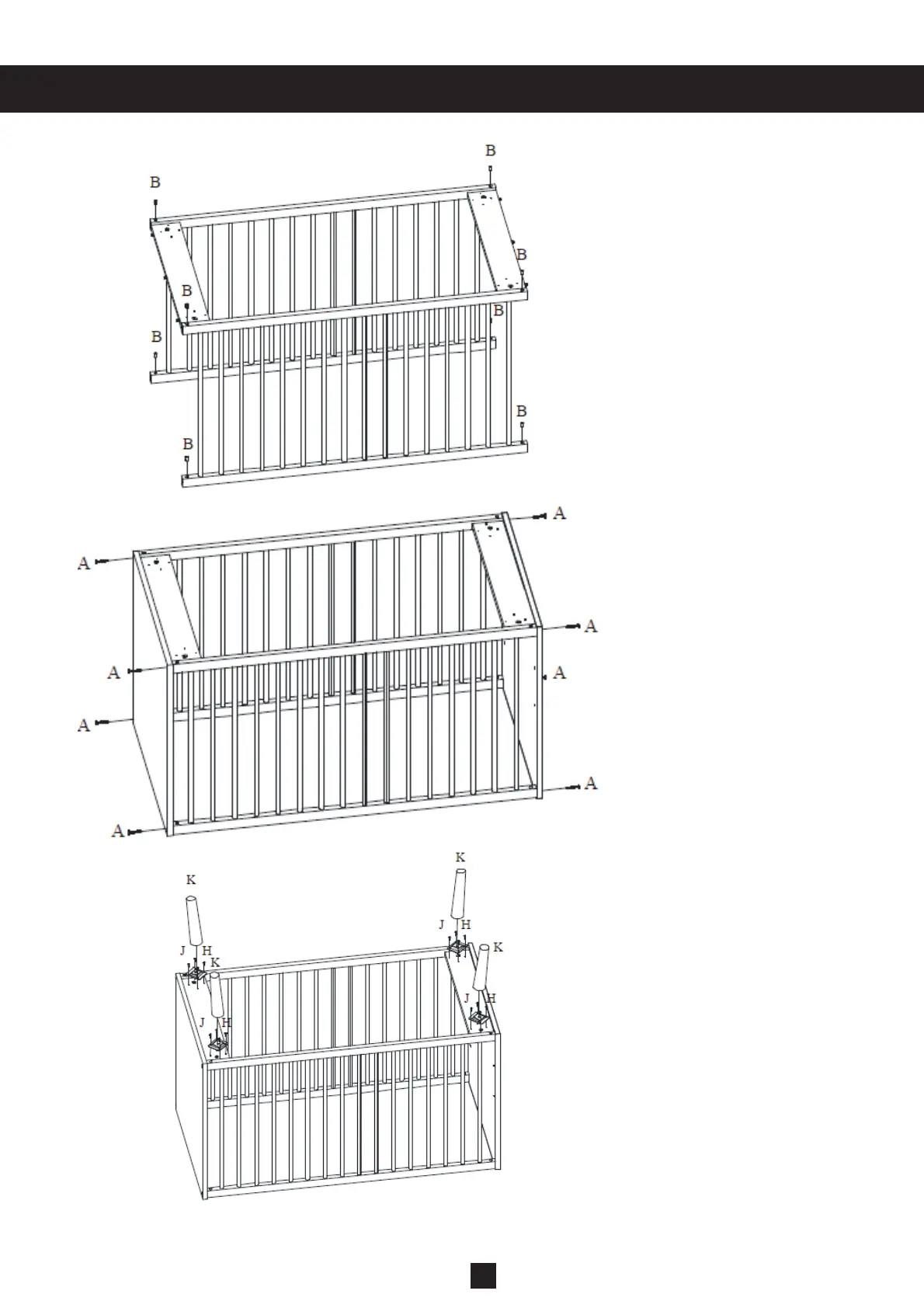

Step 4.3 : Use the parts from step
4.2 and eight cylindrical nuts B.
Push the cylindrical nuts (B) into
the drillings under the sides with
bars (4).
Step 4.4 : Use the parts from step
4.3, both end sides 1 and eight
bolts A.
Push the end sides (1) with their
holes on the wooden dowels of
the cross bars. Push the bolts (A)
into the drillings of the end sides
and tighten them in the cylindrical
nuts.
Step 4.5 : Use the parts from
step 4.4, the four legs K, the four
mounting plates H and sixteen
wood screws J.
Place the mounting plates (H)
on the drillings of the cross bars.
Push the wood screws (J) into the
holes of the mounting plates and
tighten them in the cross bars.
Tighten the legs (K) in the moun-
ting plates.
