Quax COCOON 54F01-0100x User Manual

COCOON 54F01-0100x
4. Assembling the bed
Quax nv Karel Picquélaan 84 B-9800 Deinze Belgium
T
T 0032 9 380 80 95 www.quax.eu -
E
E info@quax.eu
23

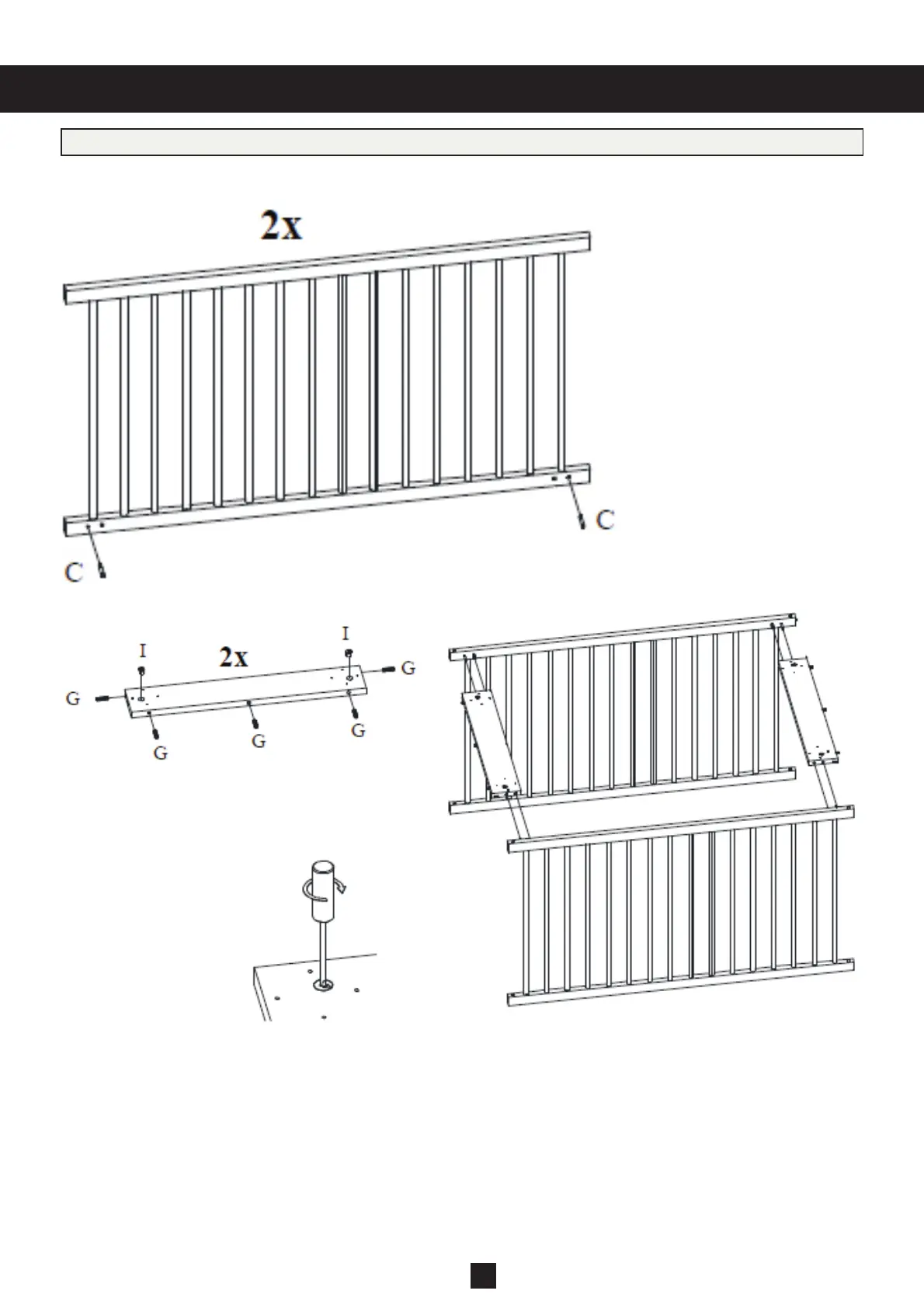

Step 4.1 : Use both sides with
bars 4 and four connectors C
Tighten a connector (C) in the
outer drillings at the bottom of the
inside of a side with bars (4).
Step 4.2 : Use the parts from step 4.1, both cross bars 2, four minifi x I and ten wooden dowels G.
Push fi ve wooden dowels (G) into the drillings on the outside of the cross bars (2). Push two minifi x (I) into the holes
at the bottom of the cross bars. Push the cross bars with their dowels into drillings and onto the connectors of a side
with bars, tighten the minifi x. Push the other side with its connectors into the holes and on the dowels of the cross bars.
Tighten the minifi x.
