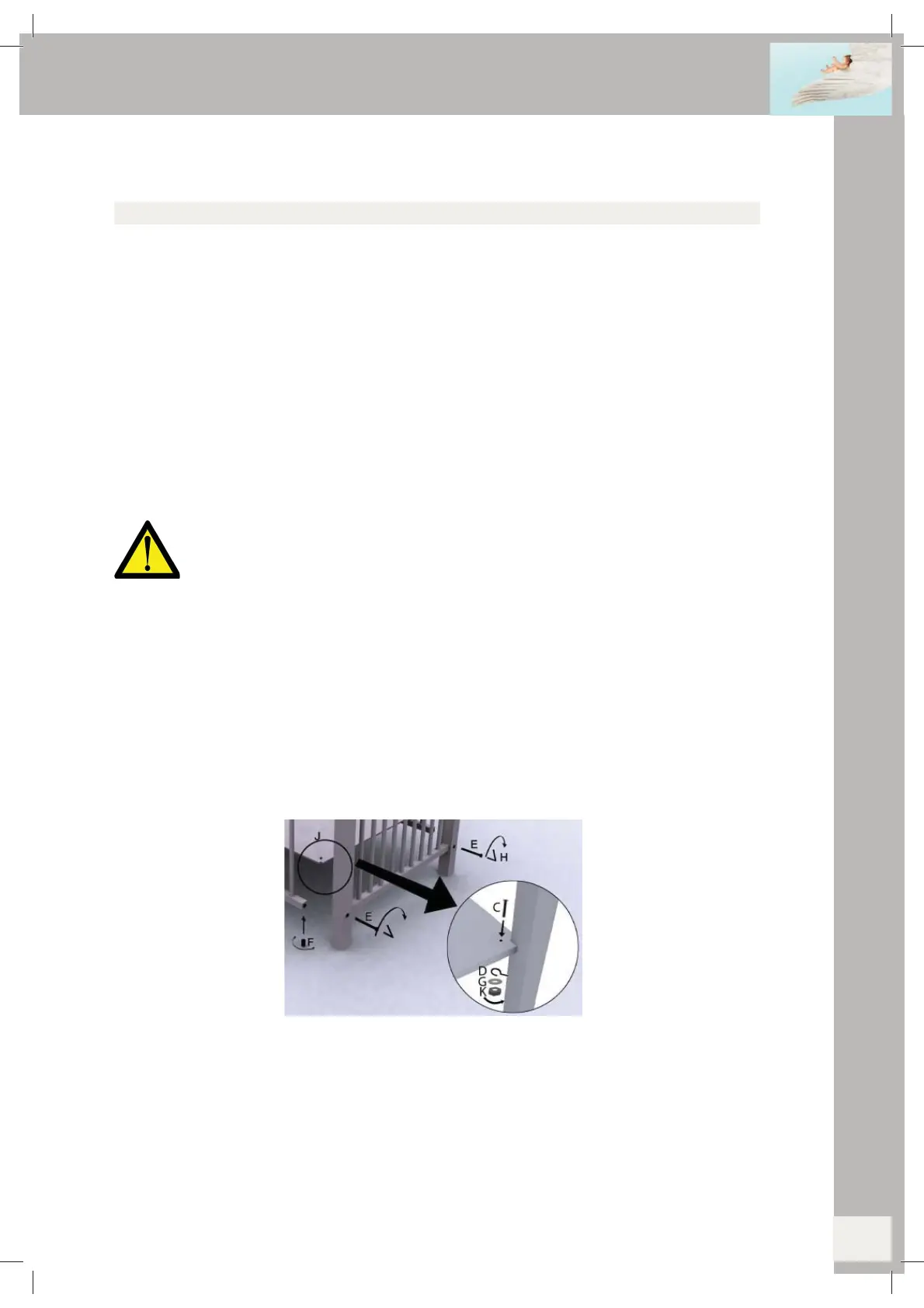

4. Assembling the playpen
Step 1 : Use parts A, B and the 8 large bolts (E)
Place the 8 large bolts (E) in the provided openings on the upperside and the bot-
tom of the legstructures (A). Insert the sides (B) with the holes on the bars faced
inwards the box, between the legstructures and pull the bolts one by one backwards
and push them back into the openings of the sides. The sides are now hanging free
between the legs.
Step 2 : Use the 8 cylindrical dowels M6 (F) and the parts of step1
Insert one by one the cylindrical dowels (F) in the provided openings of the sides (B).
Pay attention that the opening in the dowel faces the bolt. Tighten slightly with the
hexagonal key (H). Repeat this action for the remaining 7 bolts.
Attention
If you will use the drawer for this playpen, than you need to turn at
this moment to its manual to install the lid of the drawer F and then
proceed with step 3.
Step 3 : Use the parts of step 2, the bottom J, 4 crochet hooks (D), 4 spacers (G), 4
short bolts (C) and the 4 nuts M6
(K)
Place the crochet hooks (D) in the provided openings on the legs (A). Pay attention
that the four of these are on the same height of one of the possible positions for the
base. Insert the base (J) into the playpen and let it rest on the crochet hooks. Push a
short bolt (C) through an opening of the base and the underlying crochet hook, place
one spacer (G), a nut (K) and thighten slightly. Repeat for the remaining three bolts.
Finally tighten.
Step 4 : FInally fasten all large bolts fi rmly (E - step 1)
Step 5 : Changing the position of the base
Redo all actions of step 3 in reversed order. Replace the crochet hooks on a different
level and repeat step 3.
