* 24-30 VDC connection is only used when adding, removing or resetting the device with S button, and
NOT for normal shutter operation.
For 24VDC shutter solution please look for: Flush Shutter DC PN: ZMNHOD
** In case of loads other than resistive loads, please pay attention to the value of cos φ. If
necessary, connect loads less powerful than what they’re rated for – this applies to all motor
loads. Max current for cos φ=0,4 is 2 A at 250 Vac
Supported loads
400 W (240 Vac)
200 W (110 Vac)
For power factor = 0,4
In case of inductive loads,
it is reccomended to use RC snubber circuit.**
* Please contact Qubino support regarding marked load types.
** Please check below for more information about RC snubber
RC snubber
RC Snubber function is to prevent arcing and welding of the relay contacts that can occur with
some types of motors. In case that contact welding occour there is a high risk of permanent motor
damage!
RC Snubber must be connected parallel with the load.

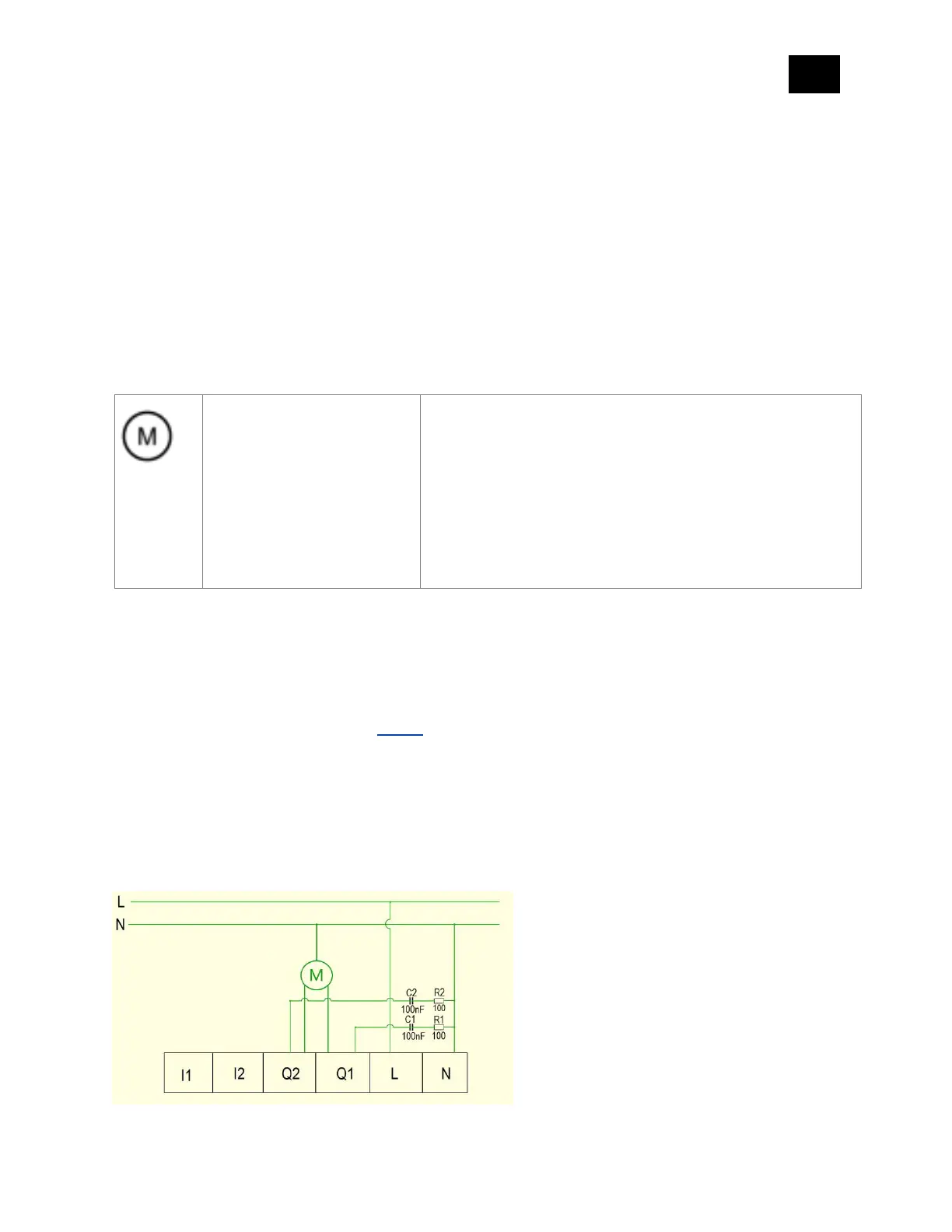

Connection diagram:
