Wiring guide - Continued
CAUTION: Never use shielded cable for speaker output.
Maintain correct polarity on output connectors.
For each output channel, connect the output terminal block connector to the speakers.
Use terminals marked COM and 4Ω / 8Ω for low impedance speakers, or use terminals marked 70V or 100V, and COM
for high impedance speakers.
Connect the COM terminal to the nega�ve (-) terminal of the speaker; connect one of the other terminals to the
posi�ve (+)
terminal of the speaker.
Output impedance and voltage are as shown in Table 2.2

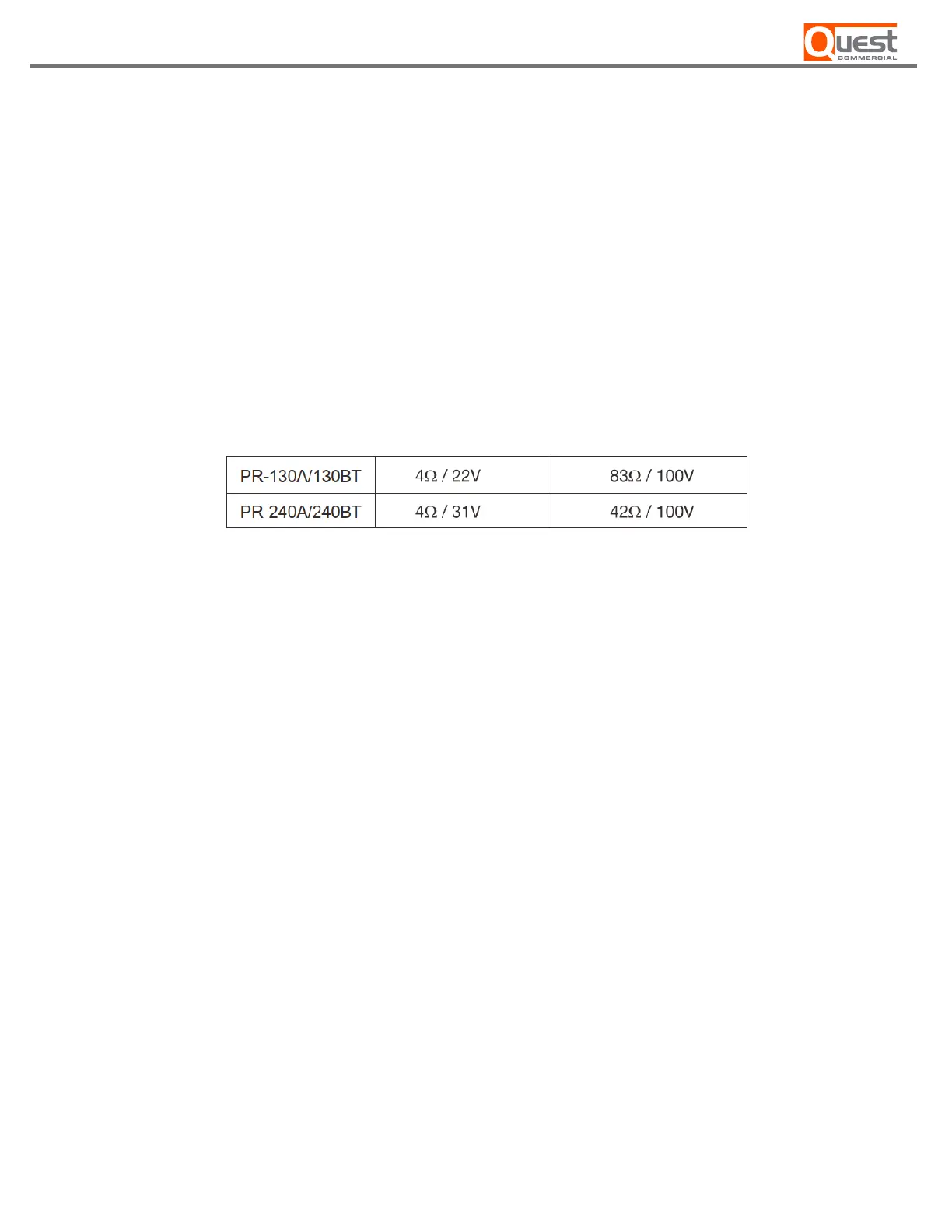

[Table 2.2 Output voltage and impedance]
NOTE: The impedances listed in Table 2.1 represent the total impedance of all speakers connected.
CAUTION : Never use both the Low-Z (4 ohms) and Hi-Z (70V or 100V) terminals at the same time.
– 13 –
PR-130BT / PR-240BT
