Quick ARIES Series User Manual

32
19
20
13
7
7
12
21
10
8
9
11
1
2
3
4
5
6
35
18
33
32
29
31
30
29
23
29
31
30
29
22
34
17
16
21
14
24
25
24
26
27
28
24
25
24
26
27
28
15
18
36
37
38
39
40
41
42
43
44
45

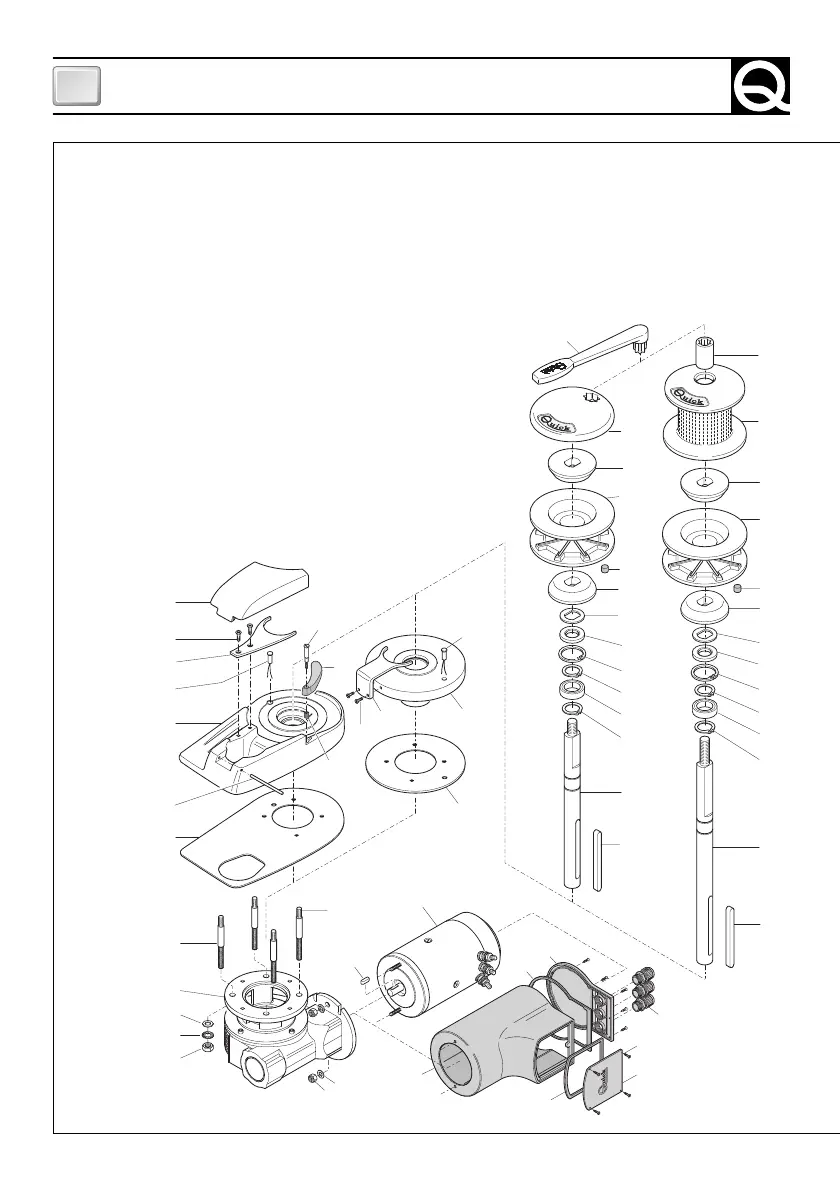

POS. DENOMINACION CÓDIGO
1A Portilla de inspección base Aries
SGMSGG100000
1B Portilla de inspección base Flair PDGC10DW0000
1C Portilla de inspección
base Flair negra
PDGC10DB0000
2A Tornillo base Aries MBV0516MXSC0
2B Tornillo base Flair MBV0530MXSC0
3A Separa-cadena base Aries MSN10VXP0000
3B Separa-cadena base Flair MSN10VXD0000
4A Base oval Aries SGMSC10V0000
4B Base oval Flair blanca SMPD10VW0000
4C Base oval Flair negra SMPD10VB0000
5 Pivote MSR10X000000
6 Guarnición/plantilla Aries-Flair PGBSV1000000
7A Prisioneros base Arier MBP080807X00
7B Prisioneros base Flair MBP080808X00
POS. DENOMINACION CÓDIGO
8Arandelas
MBR08X000000
9 Grower MBR08XDE0000
10 Tuercas MBD08MXEN000
11A Reductor 700-1000W MR1000000000
11B Reductor 1400W MR1400000000
12 Tornillo MBD06MXET000
MANTENIMIENTO
E

Quick ARIES Series Specifications

General

Motor Type	Permanent Magnet
Type	Electric
Voltage	12V/24V
Line Speed	Varies depending on model
Drum Capacity	Varies by model
Gear Ratio	Varies by model
Weight	Varies by model
Material	Marine-grade stainless steel AISI 316
Warranty	Limited lifetime
