INSTALLATION
GB
BOW THRUSTER BTQ140 - BTQ185 IT GB - REV002C
PROPELLER
CONTROL PANEL
To install the control panel, consult the “TCD 1022 - TCD 10422 instruction manual.
LO
C
TITE
WARNING: on conclusion of assembly,
make sure that the propeller is exactly po-
sitioned at the central point of the tunnel.

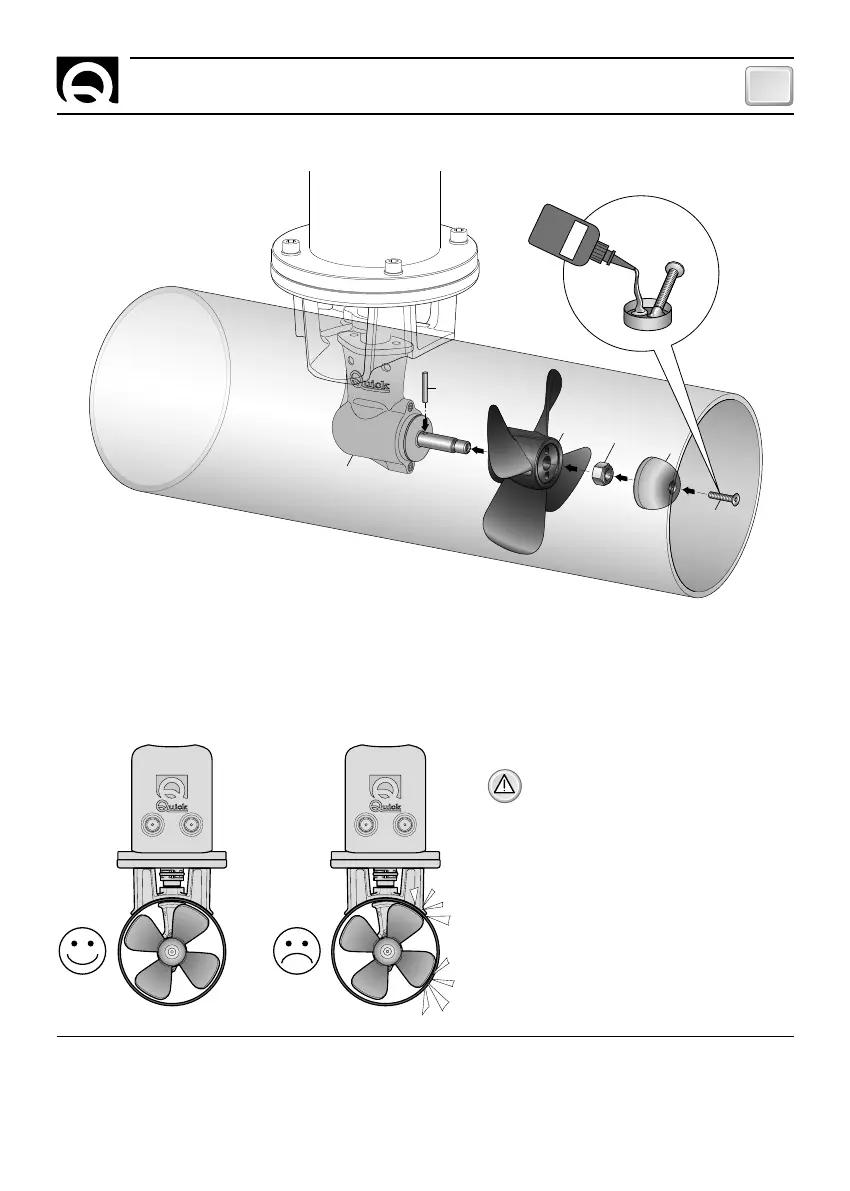

PROPELLER FITTING
Insert the drive pin A into the hole on the gearleg shaft B; assemble the propeller C to the gearleg, making it fit in cor-
rectly with the drive pin A; fix the propeller with the self-braking nut D. The anode E must be locked with the screw F
soaked with building adhesive (such as Loctite)
A
B
C
D
E
F
