GEARLEG AND MOTOR SUPPORT FLANGE
S
I
L
I
C
O
N
E

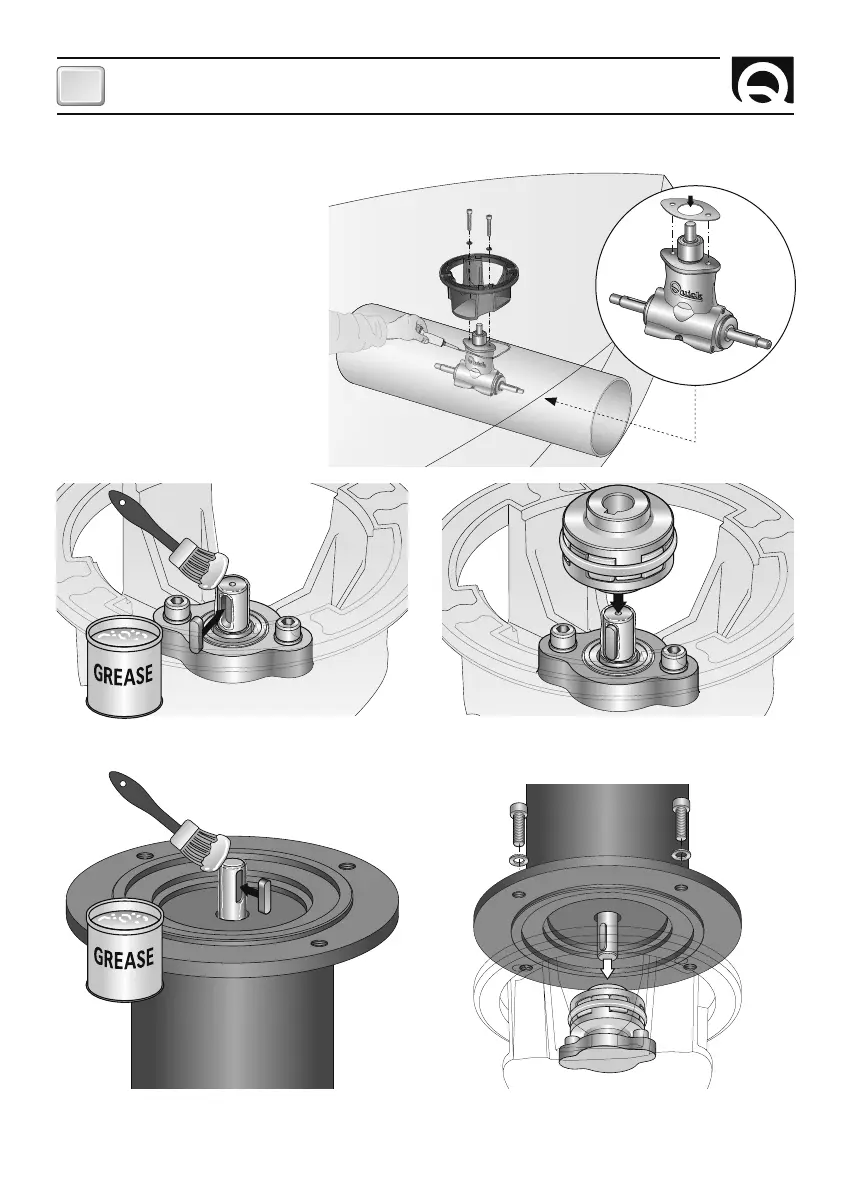

• Grease the terminal part of the gearleg shaft; fi t the
small key into its seat.
• Insert the elastic joint in the terminal part of the gear-
leg shaft.
• Insert the motor onto the elastic joint; fasten it with
the 4 screws and washers provided.
• Grease the terminal part of the gearleg shaft; fi t the
small key into its seat.
• Proceed with fi tting the gearleg with
the special seal gasket.
• For further protection against the entry
of water, apply silicone for nautical use
around the point of contact between
fl ange and tube.
• Fasten everything to the fl ange using
the special screws and washers.
INSTALLATION
