RETRACTABLE THRUSTER BTR185 - IT EN - REV008B

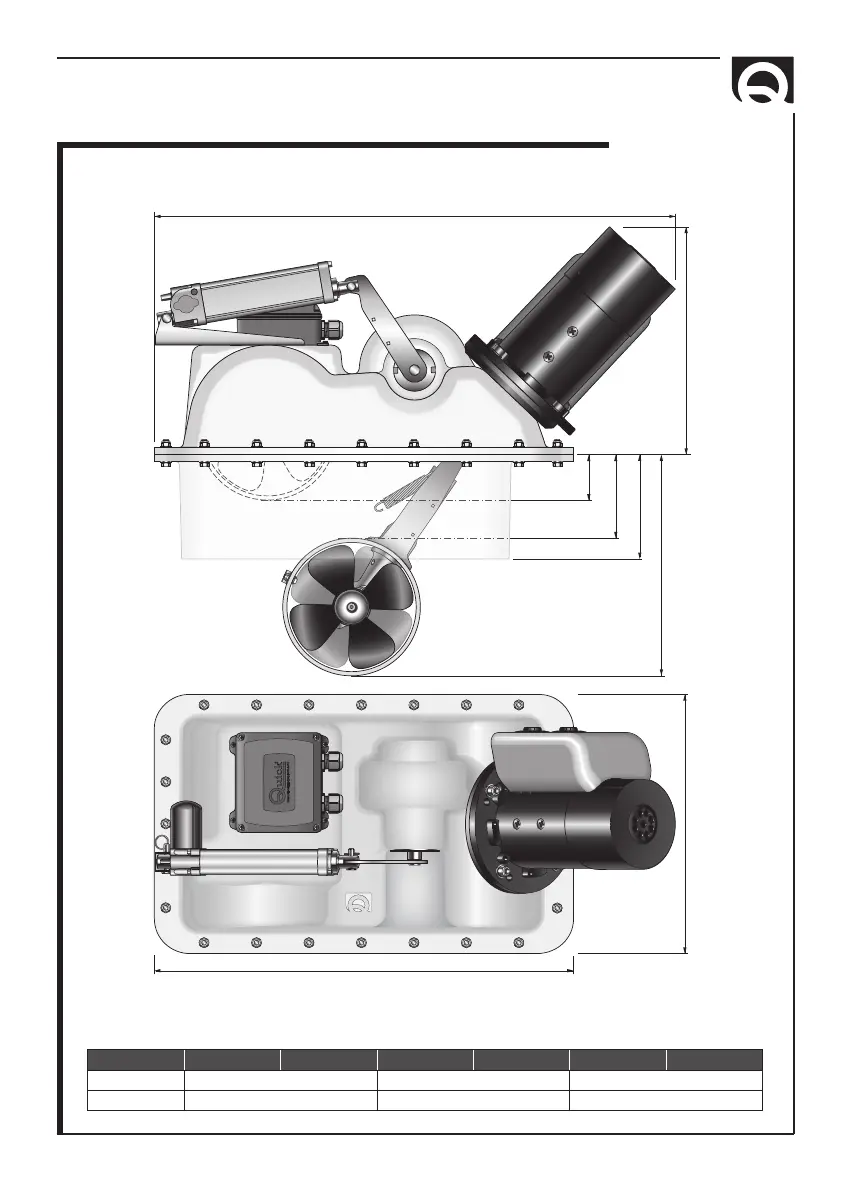

ELICA DI MANOVRA RETRATTILE BTR185 - DIMENSIONI mm (inch)
RETRACTABLE THRUSTER
BTR185
- DIMENSIONS
mm (inch)
MOD. BTR1806512 BTR1806524 BTR1808512 BTR1808524 BTR1810512 BTR1810524
A - mm (inch)
713 (28” 1/16) 743 (29” 1/4) 801 (31” 17/32)
B - mm (inch)
292 (11” 1/2) 323 (12” 23/32) 384 (15” 1/8)
A
60 (2
23
/64)
120 (4
23
/32)
B
317 (12
31
/64)
150 (5
29
/32)
370 (14
9
/16)
599 (23
37
/16)
