16
AFR 700/1000/1400W - REV009B
GB

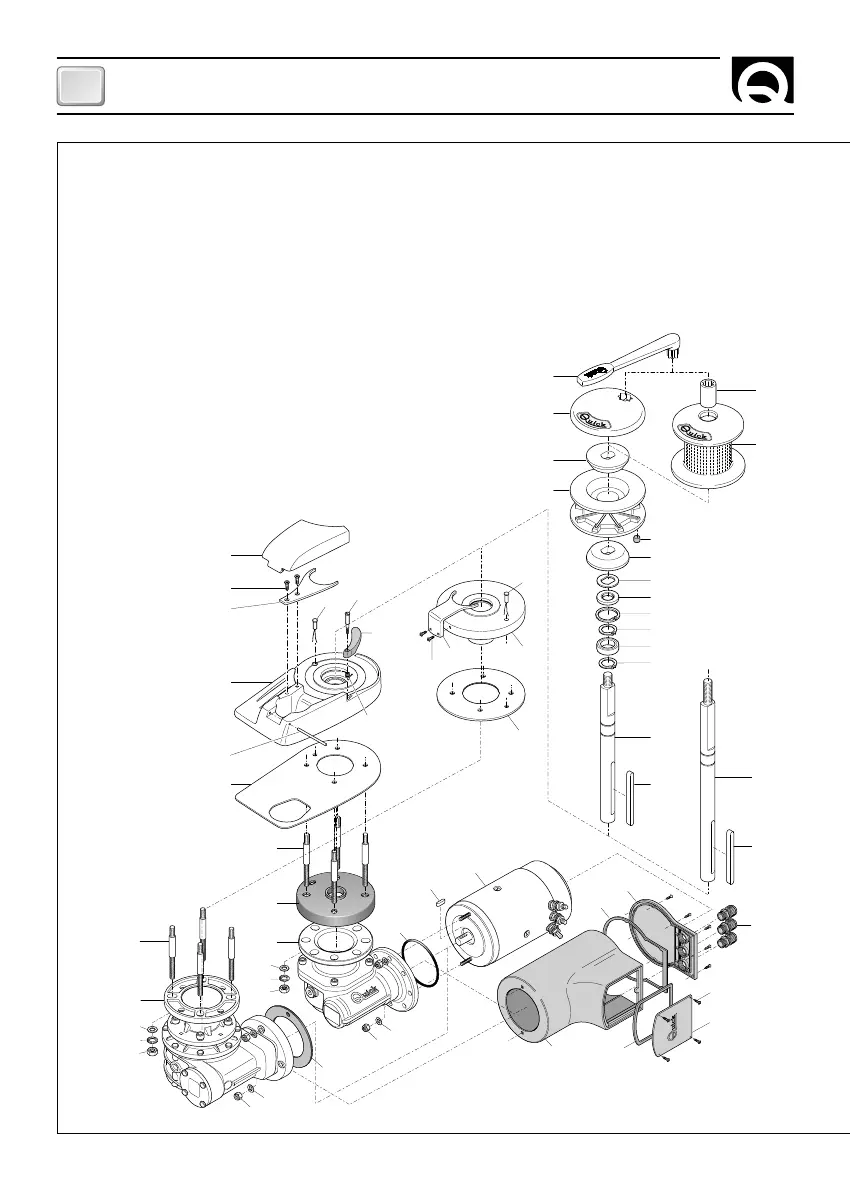

MAINTENANCE
44
45
46
47
48
49
42
43
39
36
34
35
41
40
32
31
30
37
38
33
30
36
34
35
37
38
27
26
15
16
17
18
24
23
28
1
19
4
2
6
14
5
7
5
13
3
25
29
15
11
12
11
10
9
8
19
20
21
22
POS.
DESCRIPTION CODE
1A Handle 700-1000W MSHD00000000
1B Handle 1400W ZSLMSH000000
2 Gypsy cover MSGB10000R01
3 Bush MSD100000R01
4 Drum ZSGMSE100000
5 Clutch cone MSF100000000
6A Gypsy 6 mm ZSB100600000
6B Gypsy 8 mm-5/16" ZSB1008516R4
6C Gypsy 10 mm-3/8" ZSB1010380AR
7 Magnet KPMC08060000
8 Spring washer MBR254025X00
9 Oil seal PGPRL2547700
10 Internal circlip MBAN4717Y000
11 External circlip MBAE2520Y000
POS.
DESCRIPTION CODE
12 Bearing MBJ60052RS10
13 Short shaft MSAS10274R30
14 Long shaft MSAS10308R30
15 Key MBH080780F00
16A Chain guide cover A SGMSGG100000
16B Chain guide cover white F PDGC10DW0000
16C Chain guide cover black F PDGC10DB0000
