RRC HT4/8 - REV001A

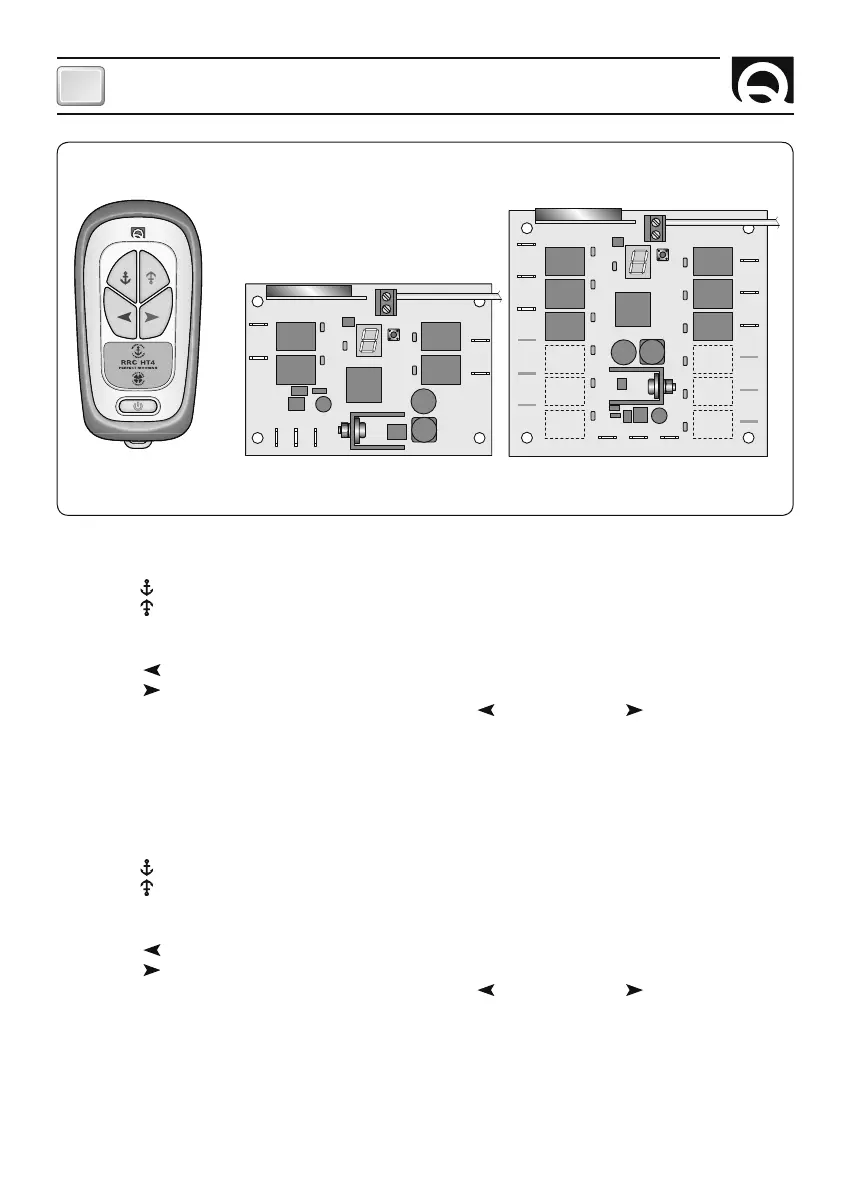

RRC HT4 Thruster handheld transmitter and RRC R04 radio receiver
Pressing the key (anchor ascent) activates relay 1 on the receiver.
Pressing the
key (anchor descent) activates relay 2 on the receiver.
Pressing the two keys simultaneously cancels the transmission.
Pressing the key (bow left) activates relay 3 on the receiver.
Pressing the
key (bow right) activates relay 4 on the receiver.
A 2 second transmission delay is introduced when passing from the
key (bow left) to the key (bow right) and vice
versa.
Pressing the two keys simultaneously cancels the transmission.
Pressing 3 or more keys simultaneously cancels the transmission.
RRC HT4 Thruster handheld transmitter and RRC R06 radio receiver
Pressing the key (anchor ascent) activates relay 1 on the receiver.
Pressing the
key (anchor descent) activates relay 2 on the receiver.
Pressing the two keys simultaneously cancels the transmission.
Pressing the key (bow left) activates relay 3 on the receiver.
Pressing the
key (bow right) activates relay 4 on the receiver.
A 2 second transmission delay is introduced when passing from the
key (bow left) to the key (bow right) and vice
versa.
Pressing the two keys simultaneously cancels the transmission.
Pressing 3 or more keys simultaneously cancels the transmission.
COM
SHEILD
PROG
relè 4relè 3
NO2
NO1
NO4
NO3
V
+ V -
relè 1 relè 2
ANT
COM
SHEILD
PROG
relè 1 relè 2
relè 3 relè 4
relè 5 relè 6
relè 8relè 7
relè 10relè 9
relè 12relè 11
NO1
N
O
3
N
O
5
NO2
NO4
NO6
NO8
NO10
NO12
N
O
7
N
O
9
N
O
1
1
V + V -
ANT
CORRESPONDENCE BETWEEN PRESSED KEY AND ACTIVATED RELAY
RRC HT4 THRUSTER
HANDHELD TRANSMITTER
RRC R04 RADIO RECEIVER RRC R06 RADIO RECEIVER
OPERATION
