Quick HT8 - Operation; Key to Relay Correspondence (HT8)

13
OPERATION
GB
RRC HT4/8 - REV001A

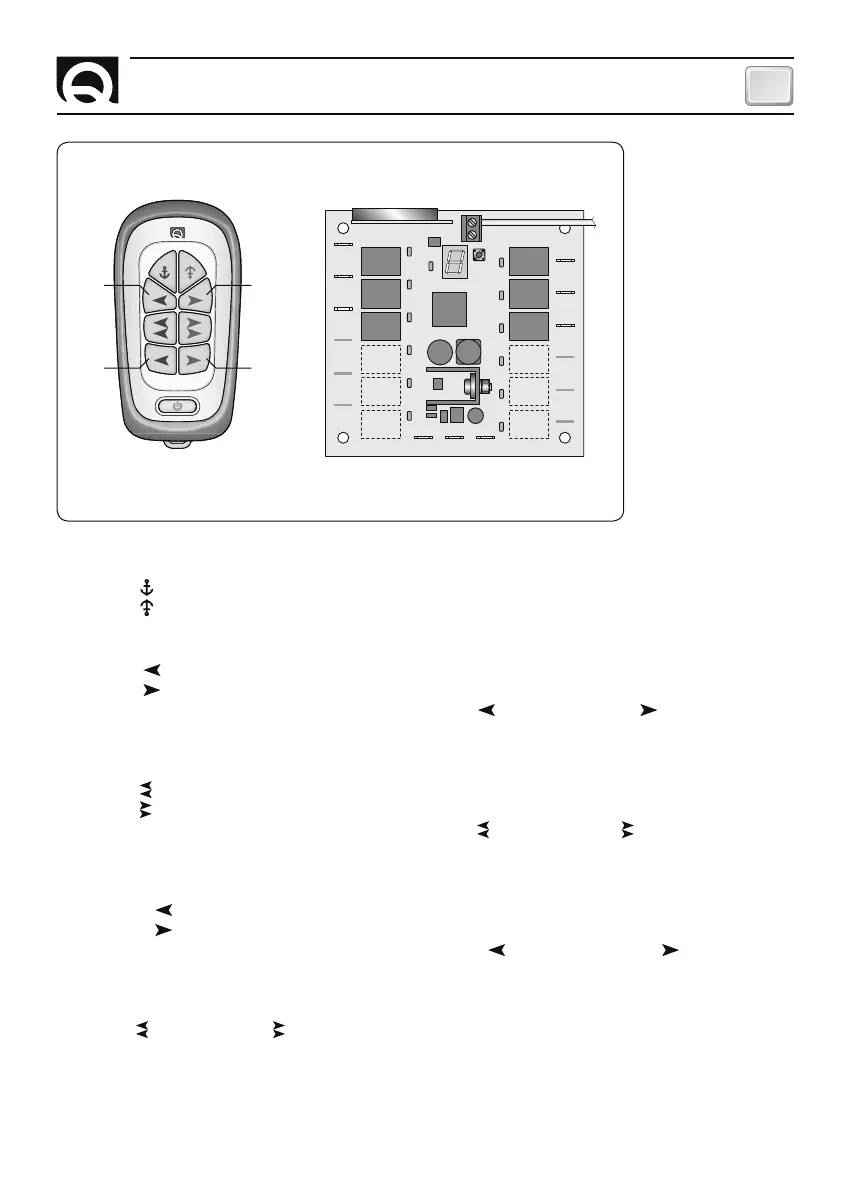

RRC HT8 Thruster handheld transmitter and RRC R06 radio receiver
Pressing the key (anchor ascent) activates relay 1 on the receiver.
Pressing the
key (anchor descent) activates relay 2 on the receiver.
Pressing the two keys simultaneously cancels the transmission.
Pressing the key 1 (bow left) activates relay 3 on the receiver.
Pressing the
key 2 (bow right) activates relay 4 on the receiver.
A 2 second transmission delay is introduced when passing from the
key 1 (bow left) to the key 2 (bow right) and
vice versa.
Pressing the two keys simultaneously cancels the transmission.
Pressing the
key (bow-stern left) activates relay 3-5 on the receiver.
Pressing the
key (bow-stern right) activates relay 4-6 on the receiver.
A 2 second transmission delay is introduced when passing from the
key (bow-stern left) (bow-stern right) and vice
versa.
Pressing the two keys simultaneously cancels the transmission.
Pressing the 3 (stern left) activates relay 5 on the receiver.
Pressing the 4
(stern right) activates relay 6 on the receiver.
A 2 second transmission delay is introduced when passing from the
key 3 (stern left) to the key 4 (stern right)
and vice versa.
Pressing the two keys simultaneously cancels the transmission.
Pressing the
(bow-stern left) or
(bow-stern right) key along with any other key will cancel transmission.
Pressing 3 or more keys simultaneously cancels the transmission.
CORRESPONDENCE BETWEEN PRESSED KEY AND ACTIVATED RELAY
COM
SHEILD
PROG
relè 1 relè 2
relè 3 relè 4
relè 5 relè 6
relè 8relè 7
relè 10relè 9
relè 12relè 11
NO1
N
O
3
N
O
5
NO2
NO4
NO6
NO8
NO10
NO12
N
O
7
N
O
9
N
O
1
1
V + V -
ANT
RRC HT8 THRUSTER
HANDHELD TRANSMITTER
RRC R06 RADIO RECEIVER
1
3
2
4
