Quick PRINCE DP2E Series User Manual

12
GB
DP2E 600/1000/1100 - REV000A

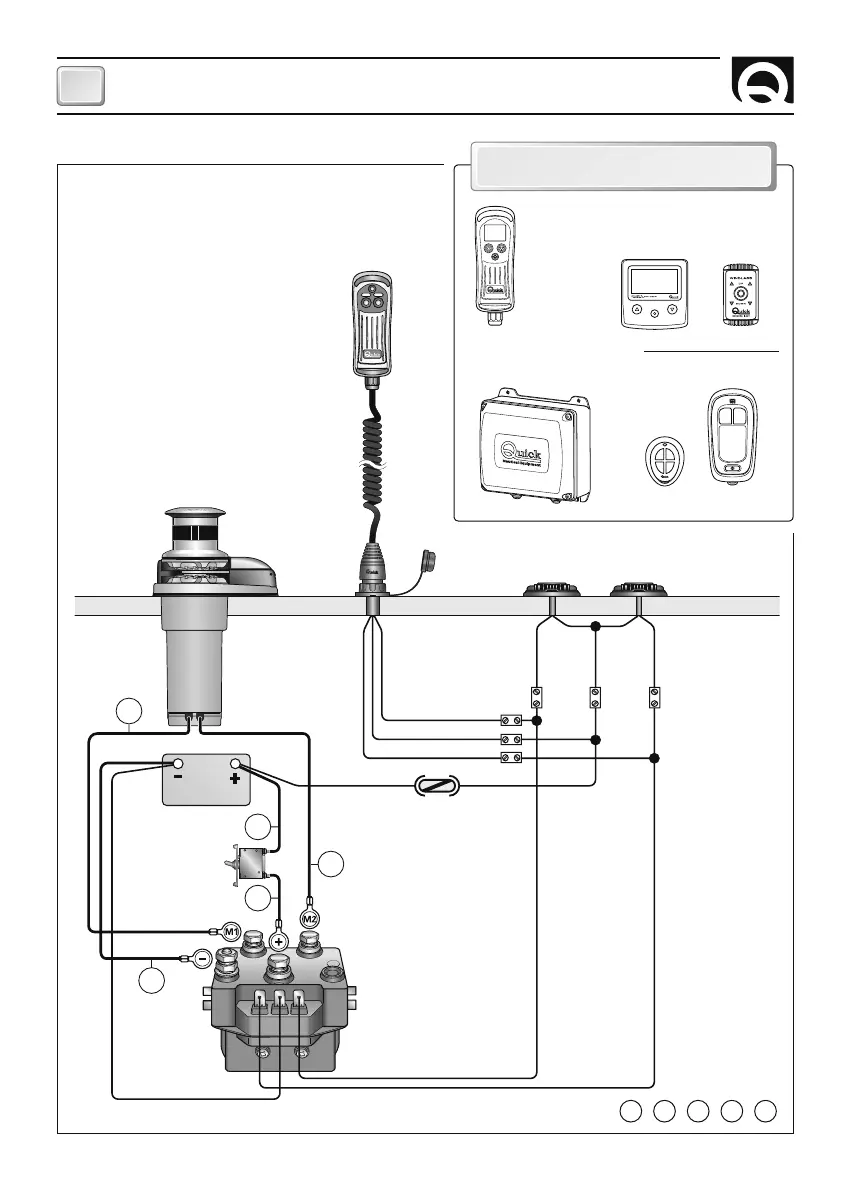

BASIC SYSTEM
SEE PAGE 34
SHOWING THE MAIN
CONNECTION DIAGRAM
MULTI-PURPOSE
WATERTIGHT HAND HELD
REMOTE CONTROL
MOD. HRC 1002
WINDLASS
MOTOR
BATTERY
HYDRAULIC-
MAGNETIC
CIRCUIT BREAKER
(see table
on page 10)
REVERSING
CONTACTOR UNIT
mod. T6415-12 (12V)
mod. T6415-24 (24V)
C
A2
FOOT SWITCHES MOD. 900U AND 900D
BLACK
BROWN
BLUE
BROWN
BLACK
BLUE
A1
FUSE
4A (12V)
2A (24V)
L = L1 + L2 + L3 + L4 + L5
L1
L4
L3
L2
L5
CONNECTION DIAGRAM
RADIO POCKET
WATERTIGHT
PANEL
CHAIN COUNTER
WINDLASSES
CONTROL
BOARD
WATERTIGHT HAND HELD
CHAIN COUNTER
HANDHELD
RECEIVER
QUICK
®
accessories
for windlass operation
TRANSMITTERS
REMOTE RADIO CONTROLS
RADIO POCKET
