SUBFRAMES, HYDRAULIC KITS
Description
Before operating your loader, please read this manual
carefully. Failure to do so may jeopardize its efficient
running and could result in a breakdown.
Separate mounting instructions are supplied with subfra-
mes, valves and hydraulic connections, which are
dependent on the tractor model to be used.
This loader is quick-coupled to subframes, which are
available for a large number of tractor models (and
sizes), from various manufacturers.

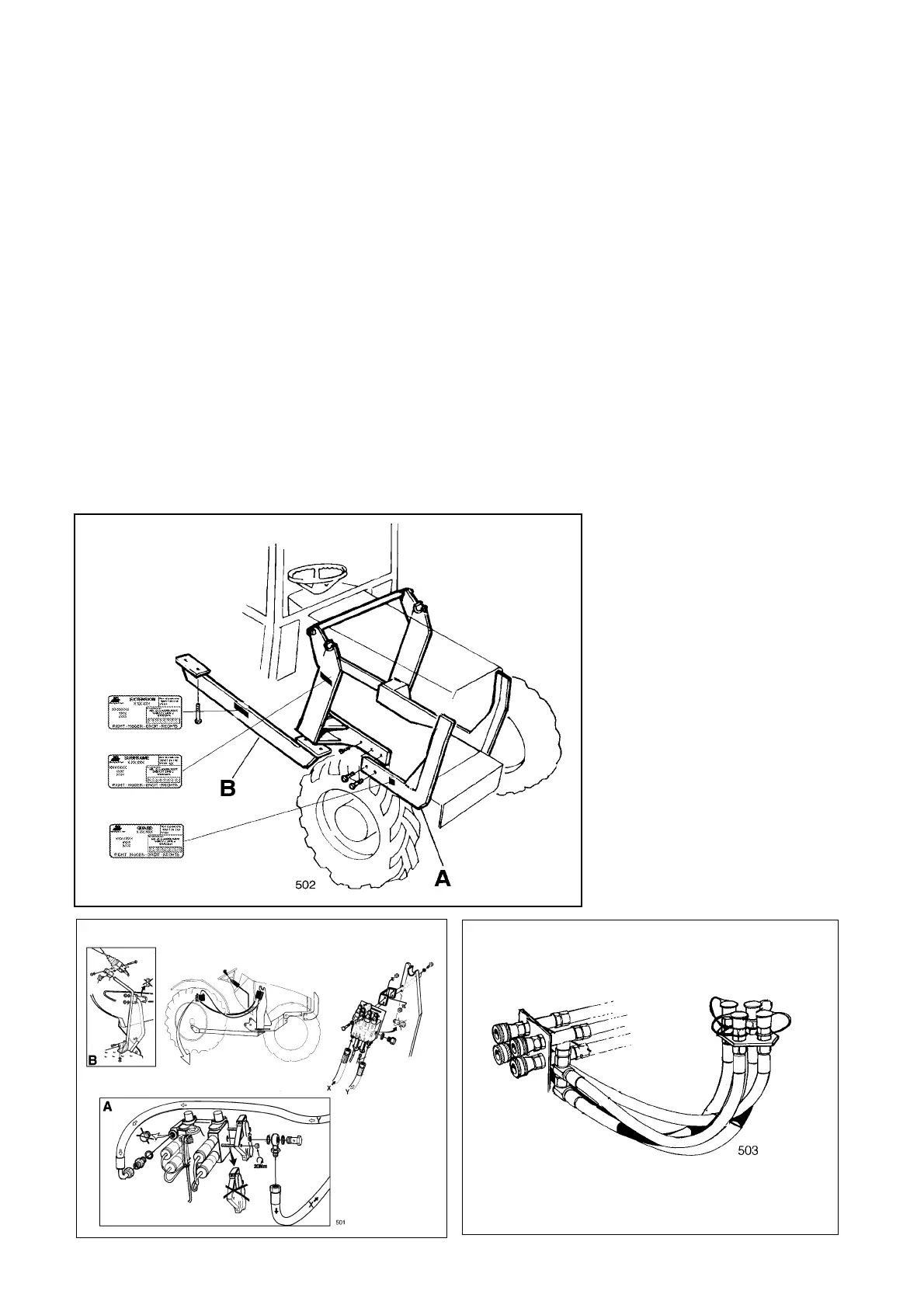

A subframe kit (Illus. 1) contains all the parts needed to
attach the loader to the tractor, as well as a grill guard*
(A). The subframe kits are of different types, e.g.
with
or
without*
extensions (B) to the tractor rear axle.
The loader can be connected to the tractor hydraulics by
the aid of an Ergodrive Kit, Illus. 2, which contains a
control valve with MONO Handle Device and the neces-
sary connections, or by the aid of a hose kit, Illus.3, to
be connected to the original valves of the tractor. In
cases where a hose set is fitted, the tractor shall be
equipped with two double acting valves.
The loader can, when required, be equipped with Elec-
trical valves (SELECTO) for further hydraulic connec-
tions.
* Depending on tractor- and loader model.
