Q2 Plans - Chapter 5 - Page 5-03

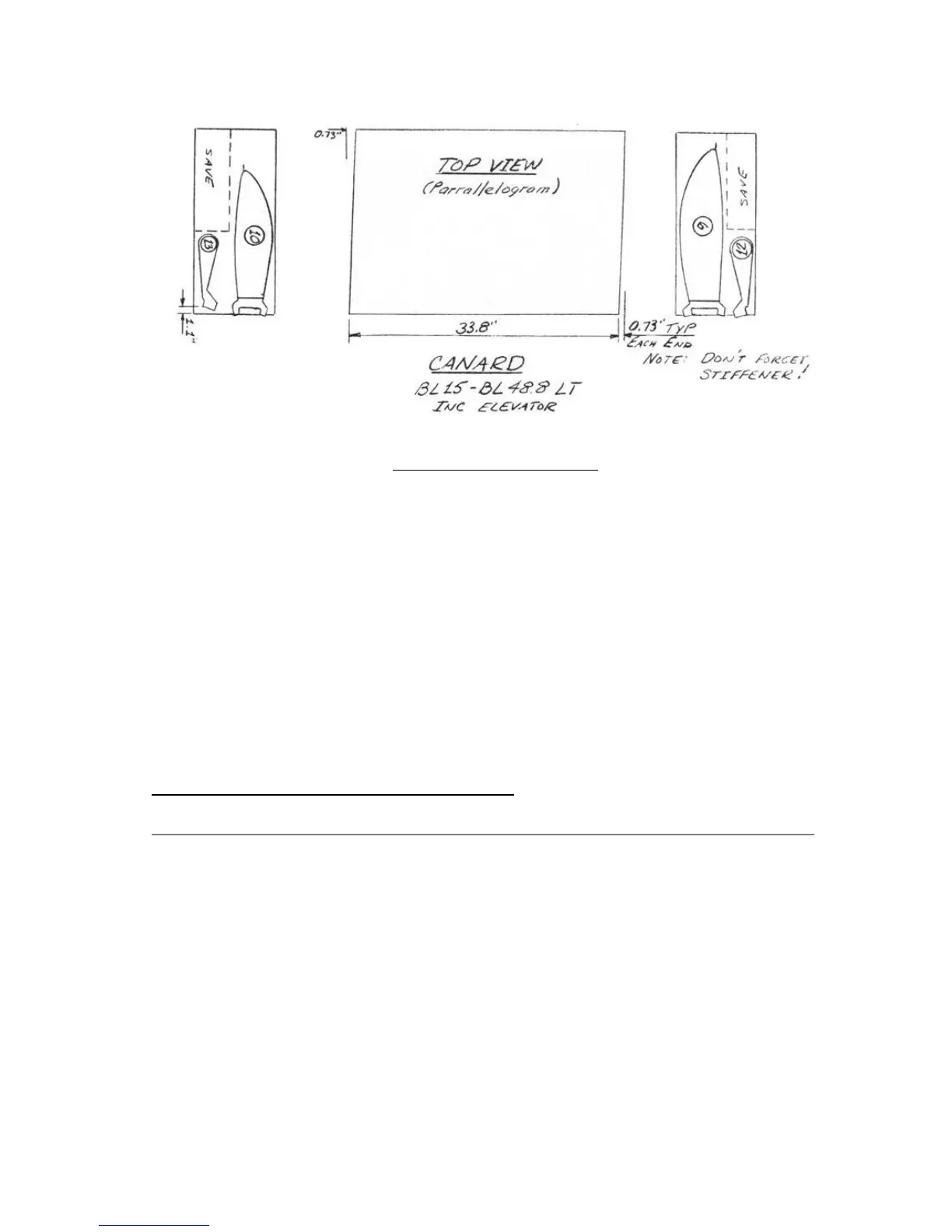

..... Finally, locate the remaining part of the 10" x 20" block and size it
as shown, in order to make the canard center section. Keep the unused
portion for cutting the vertical fin, so don1t make the height over 6.0".
Note the 0.6" taper dimension is to allow for the proper anhedral angle upon
assembly in the canard female jigging templates.
.....Take the two canard template BL48.8 and BL15 and remove the 33-A-B-C-D-
E-F-38 notch in each template. Then, hot-wire the canard stiffener out of
each inboard canard and canard center section foam core, being careful to
line the templates up properly. Store the stiffeners carefully to avoid
damage.
