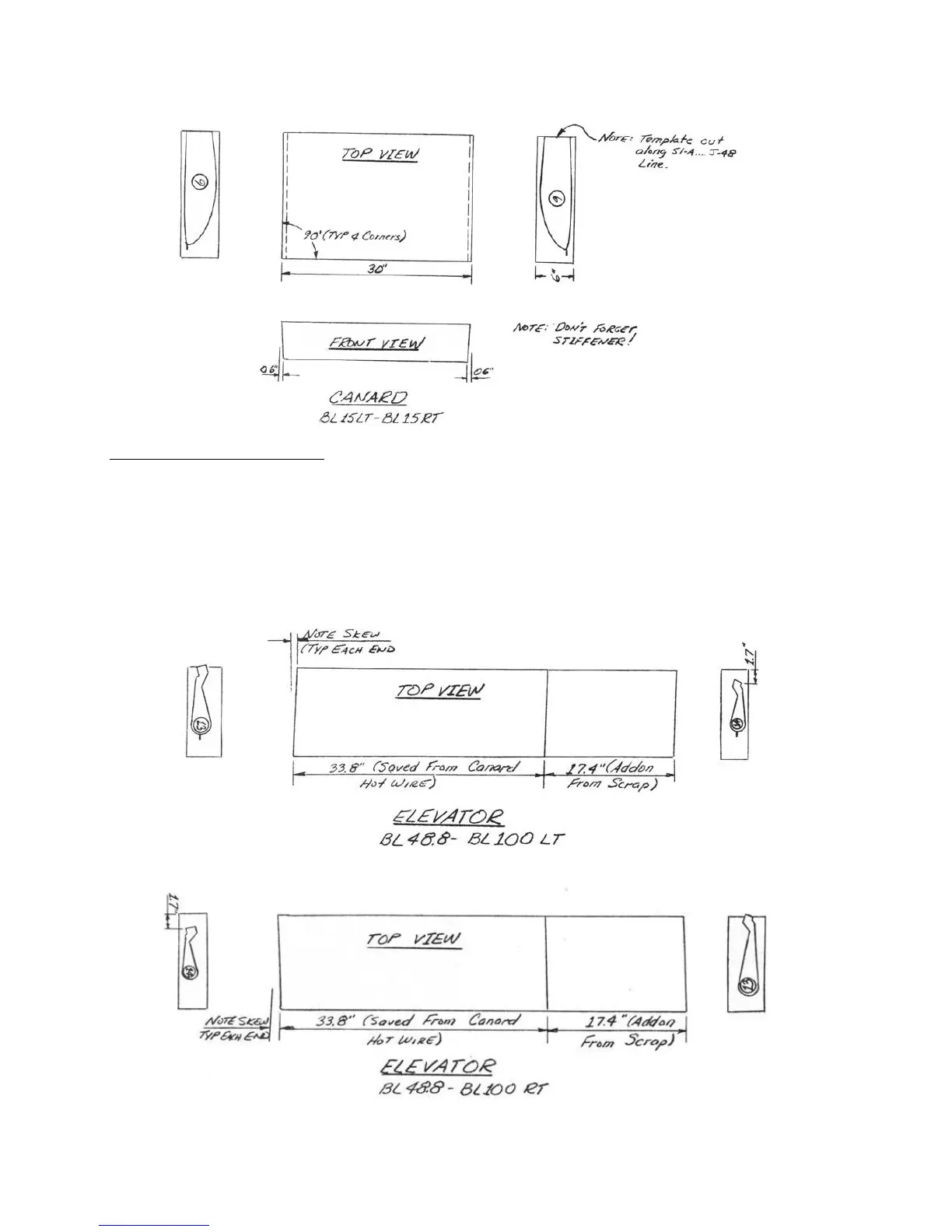

OUTBOARD ELEVATOR CORES
..... Find the two pieces of foam that you saved after hot-wiring the
inboard canard cores. (The areas are marked 'save' on the sketches). Add
some additional scrap pieces, being careful to obtain proper skew throughout
the setup, and make the inboard elevator cores. The template offsets are
necessary to obtain the proper geometry.
.....Hot wire for the elevator torque tubes like you did on the inboard
elevator cores.
