Q700M/Q500M SEDEO LITE
SEAT MOUNTING MATRIX
© 2021 Sunrise Medical (US) LLC
03/2021 P/N 253324 Rev. B
Pg 3 of 9
Customer service: +1 (800) 333-4000
or visit www.SunriseMedical.com

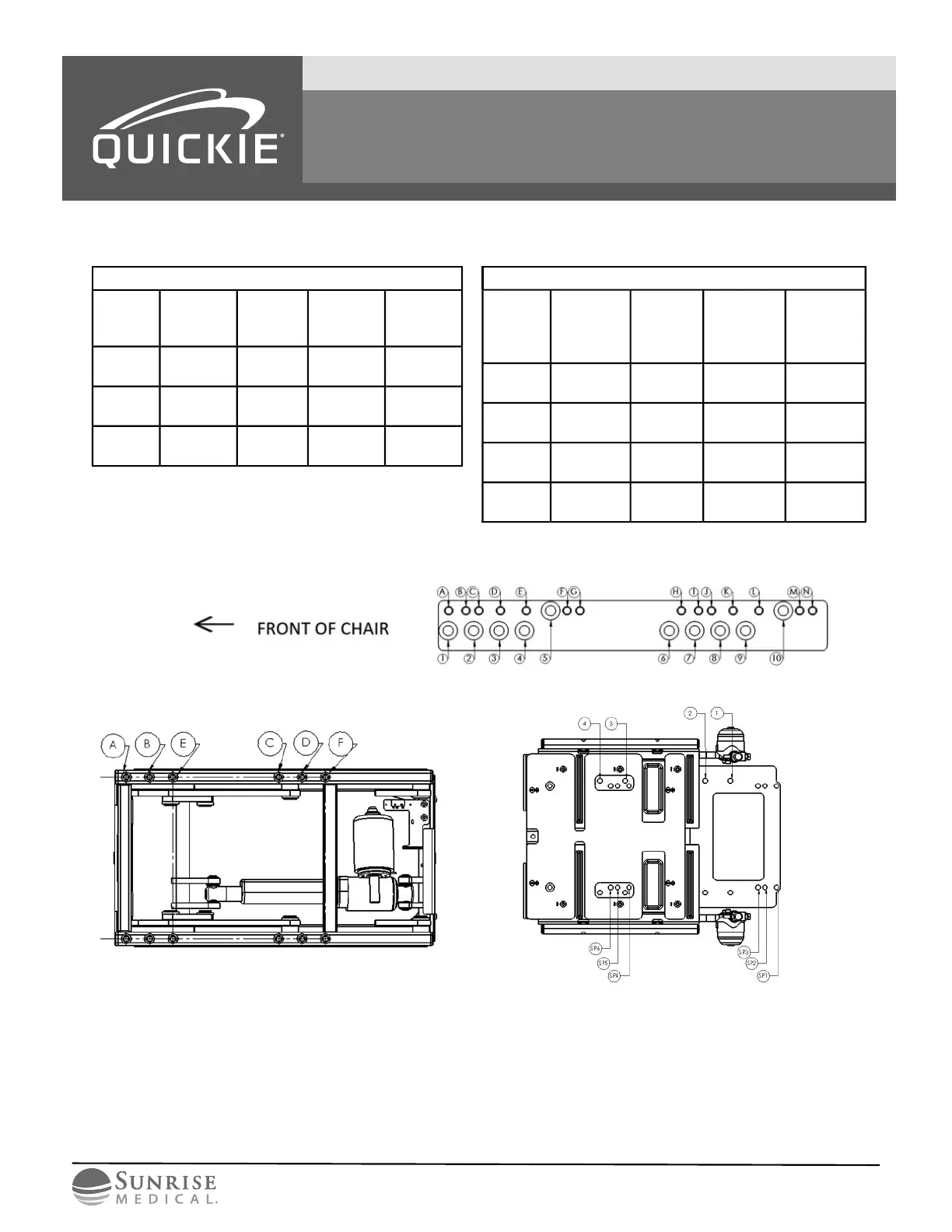

Q700M SEDEO Lite Seat Mounting Matrix
Tilt Power Module
Adapter Plate - Mount Holes
Tilt Power Module – Mount Holes
SEDEO Lite Seat Pan - Mount Holes
Tilt - no Adapter Plates
Seat
Depth
Backrest
Position
Module
Adapter
Plate to
Module
Seat Pan
to
Module
16 1 Tilt N/A
4 - B
2 - D
17 3 Tilt N/A
4 - B
2 - D
18 5 Tilt N/A
4 - B
2 - D
Tilt - with Adapter Plates
Seat
Depth
Backrest
Position
Module
Adapter
Plate to
Module
Seat
Pan to
Adapter
Plate
19 7 Tilt
5 - B
10 - D
3 - E
1 - L
20 9 Tilt
5 - B
10 - D
3 - D
1 - K
21 11 Tilt
5 - B
10 - D
3 - E
1 - L
22 13 Tilt
5 - B
10 - D
3 - D
1 - K
