Q700M/Q500M SEDEO LITE

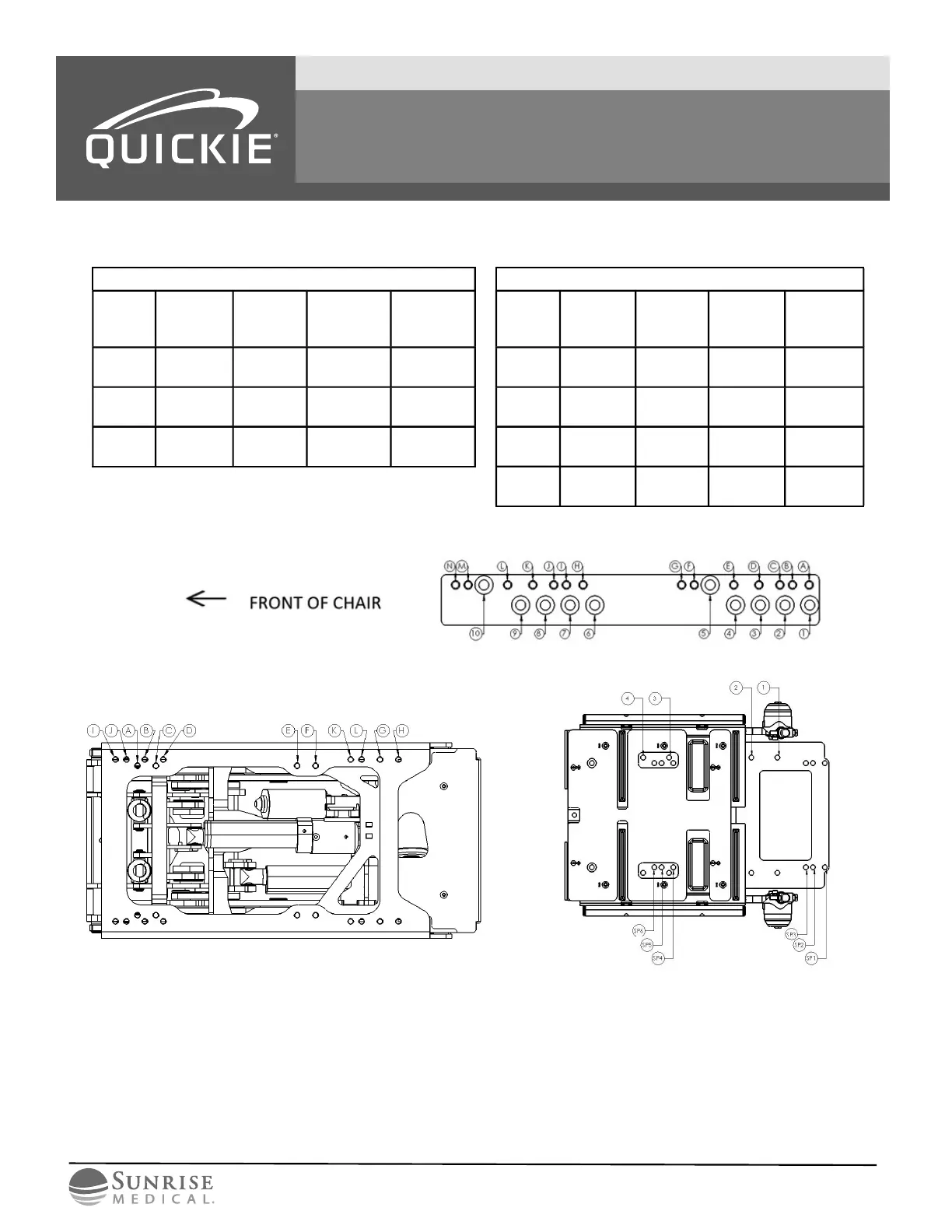

SEAT MOUNTING MATRIX
© 2021 Sunrise Medical (US) LLC
03/2021 P/N 253324 Rev. B
Pg 4 of 9
Customer service: +1 (800) 333-4000
or visit www.SunriseMedical.com
Tilt Lift Combo (TLC)
Adapter Plate - Mount Holes
TLC Power Module – Mount Holes
SEDEO Lite Seat Pan - Mount Holes
Q700M SEDEO Lite Seat Mounting Matrix
Tilt Lift Combo (TLC) - no Adapter Plates
Seat
Depth
Backrest
Position
Module
Adapter
Plate to
Module
Seat Pan
to
Module
16 1 TLC N/A
SP6 - D
SP3 - H
17 3 TLC N/A
SP6 - D
SP3 - H
18 5 TLC N/A
SP6 - D
SP3 - H
Tilt Lift Combo (TLC) - with Adapter Plates
Seat
Depth
Backrest
Position
Module
Adapter
Plate to
Module
Seat Pan
to
Module
19 7 TLC
7 - A
2 - E
3 - H
1 - A
20 9 TLC
7 - A
2 - E
3 - I
1 - B
21 11 TLC
7 - A
2 - E
3 - K
1 - D
22 13 TLC
7 - A
2 - E
4 - N
2 - G
