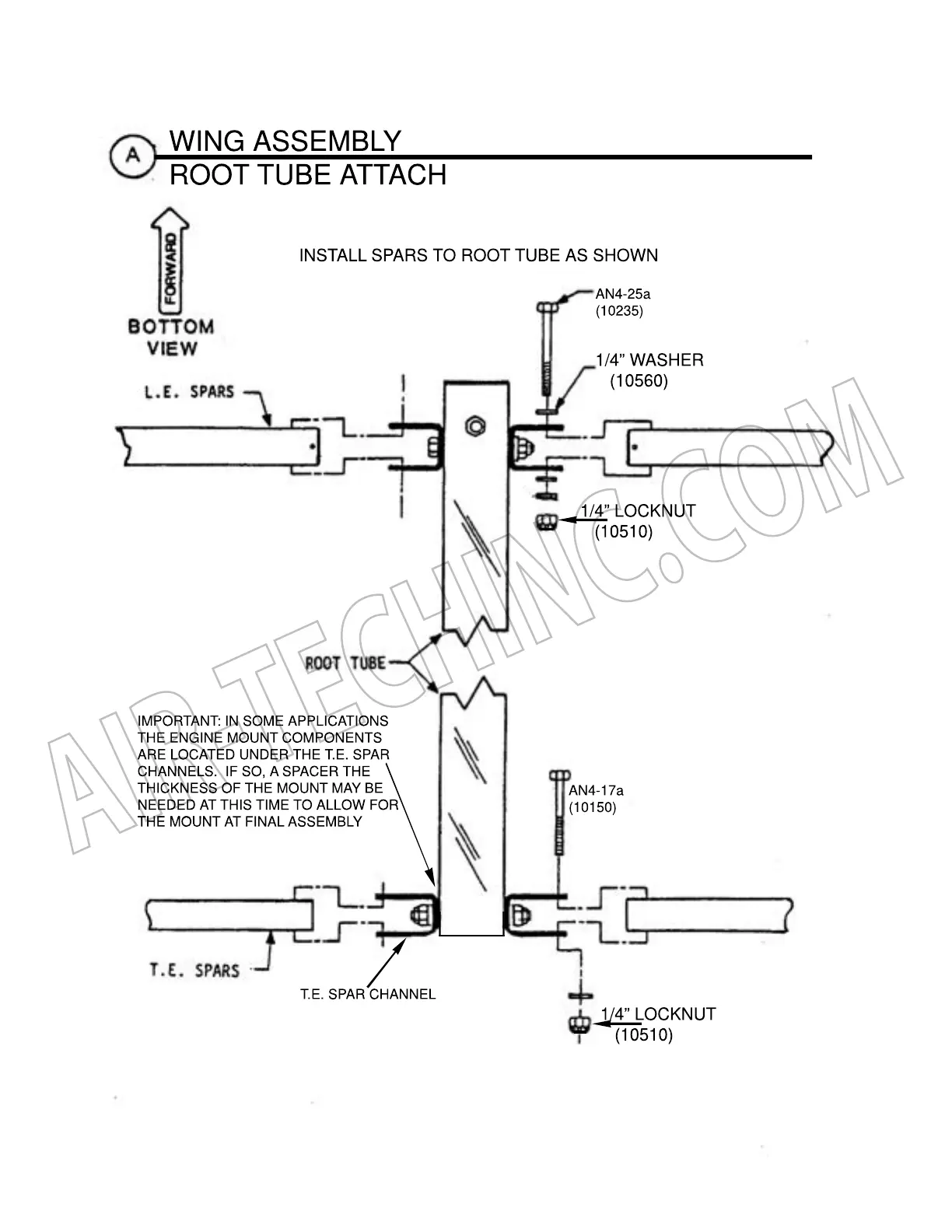

WING ASSEMBLY
ROOT TUBE ATTACH
T.E. SPAR CHANNEL
IMPORTANT: IN SOME APPLICATIONS
THE ENGINE MOUNT COMPONENTS
ARE LOCATED UNDER THE T.E. SPAR
CHANNELS. IF SO, A SPACER THE
THICKNESS OF THE MOUNT MAY BE
NEEDED AT THIS TIME TO ALLOW FOR
THE MOUN
THE MOUNT AT FINAL ASSEMBLY
1/4” LOCKNUT
(10510)
1/4” LOCKNUT
(10510)
INSTALL SPARS TO ROOT TUBE AS SHOWN
1/4” WASHER
(10560)
AN4-17a
(10150)
AN4-25a
(10235)
