QuietCool QC-1500 User Manual

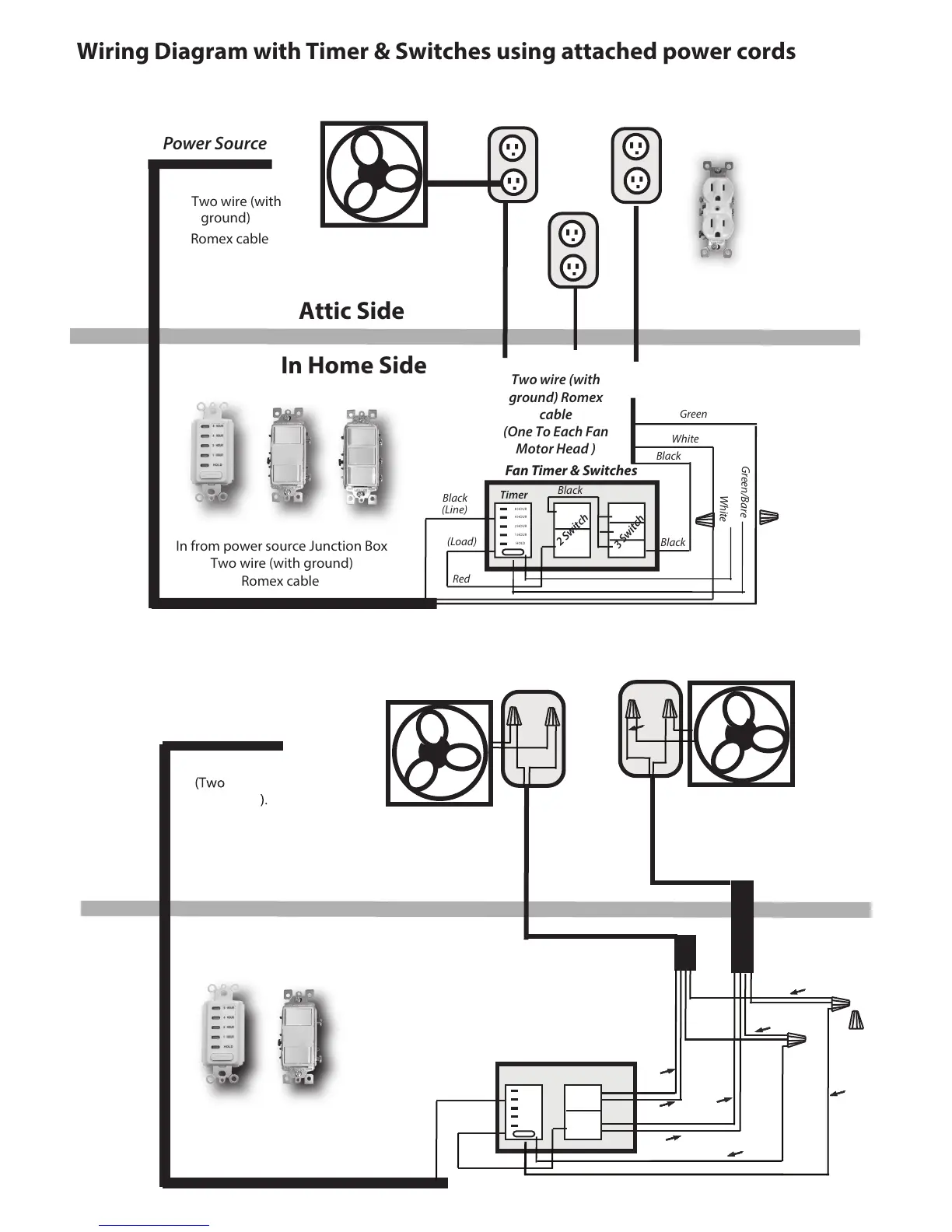

Wiring Diagram with Timer & Switches using attached power cords
Romex cable
Two wire (with
ground)
Power Source
Fan Timer & Switches
In from power source Junction Box
Two wire (with ground)
Romex cable
Two wire (with
ground) Romex
cable
(One To Each Fan
Motor Head )
In Home Side
Attic Side
Red
Timer
2 Switch
3 Switch
(Line)
(Load)
Black
Black
Black
Green/Bare
etihW
Green
Black
White
8 HOUR
4 HOUR
2 HOUR
1 HOUR
HOLD
Wiring Diagram with Timer & Switches and Direct Wiring
Romex cable
wire with
ground
Power Source
Fan Timer & Switches
In from power source Junction Box
Two wire with ground
Romex cable
Three wire with
ground Romex
cable
(One To Each Fan
Motor Head )
In Home Side
Attic Side
Red
Timer
(Line)
(Load)
Black
Black
White
Green
Black
White
8 HOUR
4 HOUR
2 HOUR
1 HOUR
HOLD
Green
White
Red
Red
Green/Bare
