7. Feed the 3 wire Romex into the handy box. Tie the blue & black wire together for high speed. Tie the
yellow and white taped wire together for medium speed. Tie the red wires together for low speed.
8. Feed the 2 wire Romex from your timer into the handy box. Feed the 2 wire Romex from your power
source into the handy box.
9. Tie your three remaining black wires together. Tie your three remaining white common wires
together. Tie the three bare copper wires and the two green ground wires together.
10. Carefully reinstall the handy box cover.
Power
Timer
Tie All Ground & Bare Copper Wires Together
Whole House Fan
14-2 Wire
14-2 Wire
Switch
14-3 Wire
Low Speed
High Speed
Medium Speed
White Common Wires Together
Black Wires Together
White - Marked w/ Tape
Black
Red
Figure 4.3B
14-2 Wire
Power Source
Black Wires
Together
Red Switch Leg
Low
/
Med
High
LowMed

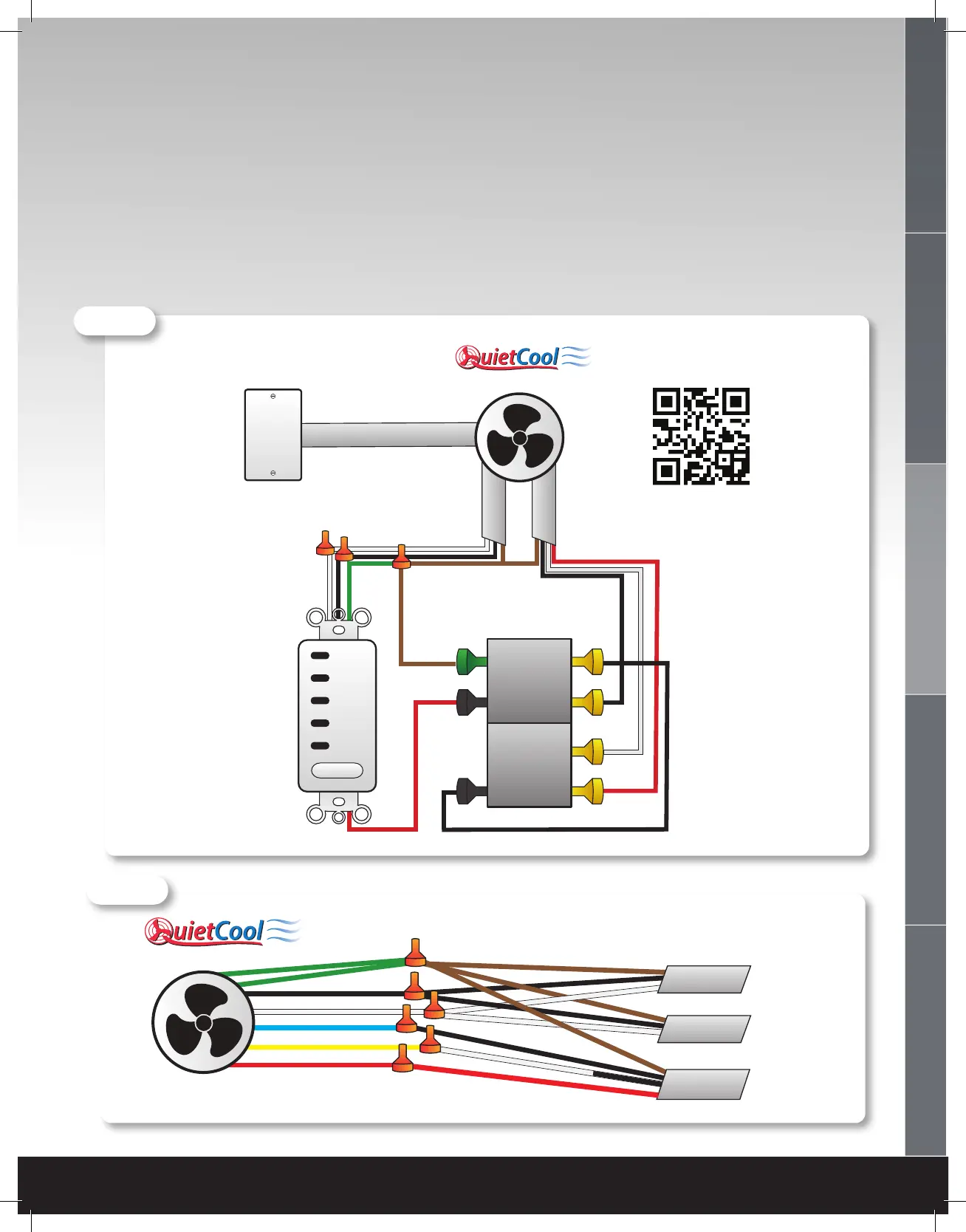

Three Speed Wiring
Tie White Common Wires
Together
Red Low Speed
White Medium Speed
Whole House Fans
Tie All Ground & Bare
Copper Wires Together
14-2 Wire
8 HOUR
4 HOUR
2 HOUR
1 HOUR
HOLD
14-3 Wire
Black High Speed
Jumper Wire
CONSTANT POWER REQUIRED
Figure 4.3A
