7- UNLOCKING THE MOTOR MANUALLY

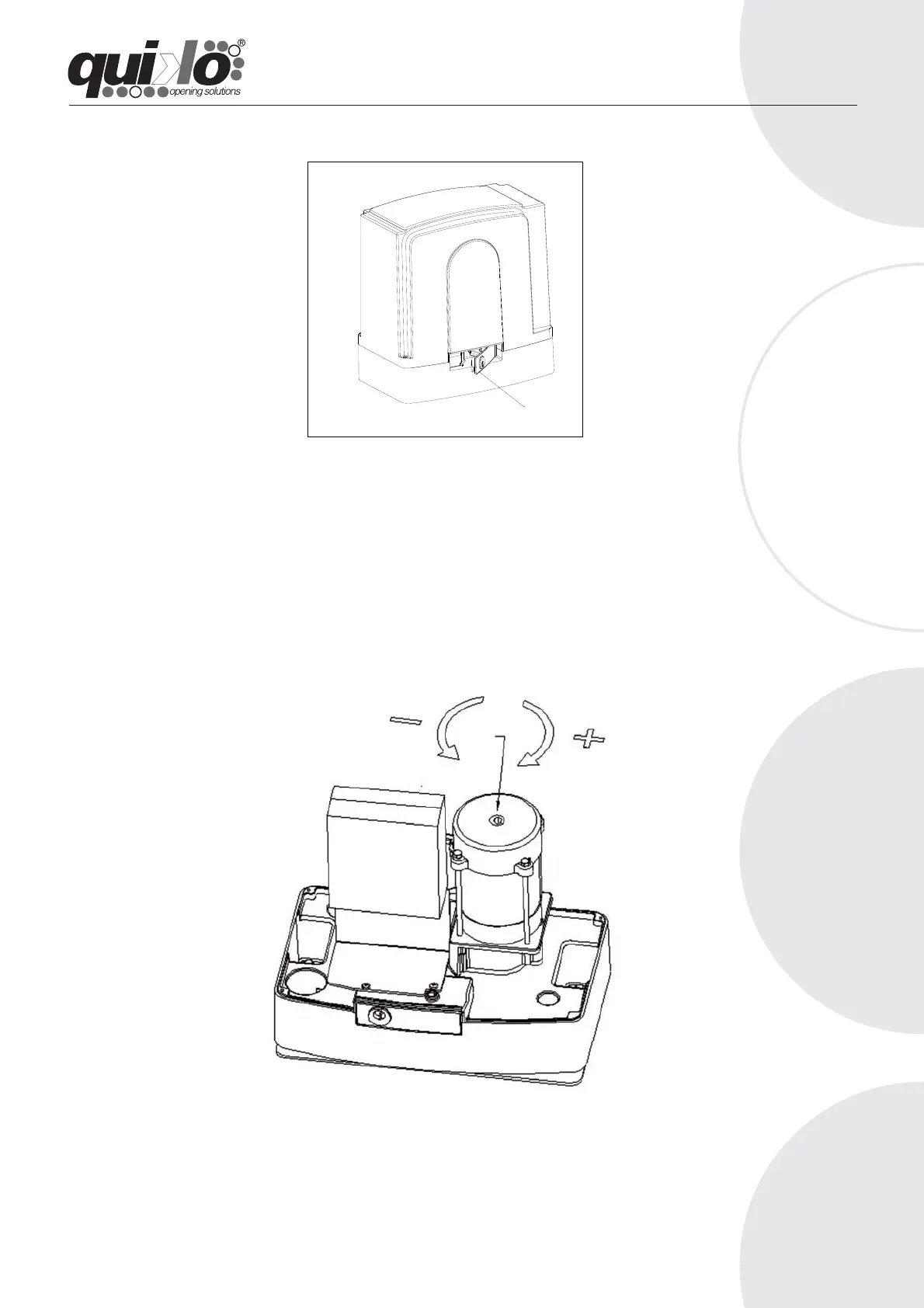

FIG.6
RELEASE INSTRUCTION
In case of fault or power failure, insert the key in the lever lock and turn it of 90°CW. Pull and turn the lever
approx. 90°until it stops and the gate move manually.
WARNING: perform locking and lock release operations with motor cut off.
LOCK INSTRUCTION
To re-lock the gearmotor, return the lever in closed position and lock it and take the key away.
8- ADJUSTING THE CLUTCH (ONLY FOR QK-M2000T MODEL)
FIG. 7
With a spanner turn the adjusting bolt:
CCW for reducing the gate thrust
CW for increasing the gate thrust.
THE GATE THRUST SHALL BE ADJUSTED ACCORDING TO THE EN 12453 and 12455.
