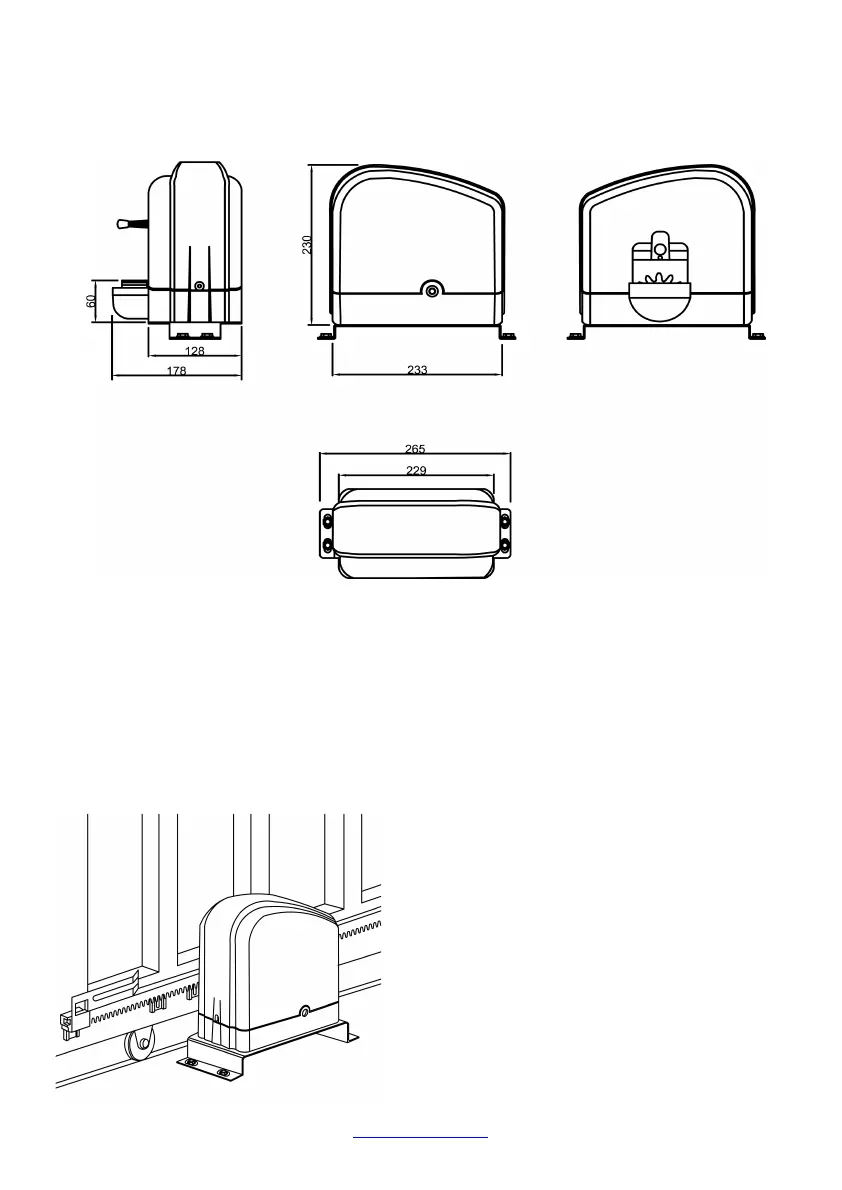

External measures
Fig. 1
3. POSITIONING FOR BASE PLATE
Prepare the sub structure in order to fix
base plate, respecting approximately
measures like Fig. 1
