1 Drilling hole
Select a suitable position for the
mixer tap (see examples).
Using the correct drill bit, drill a hole
of 35 mm through the work top.
Drilling hole

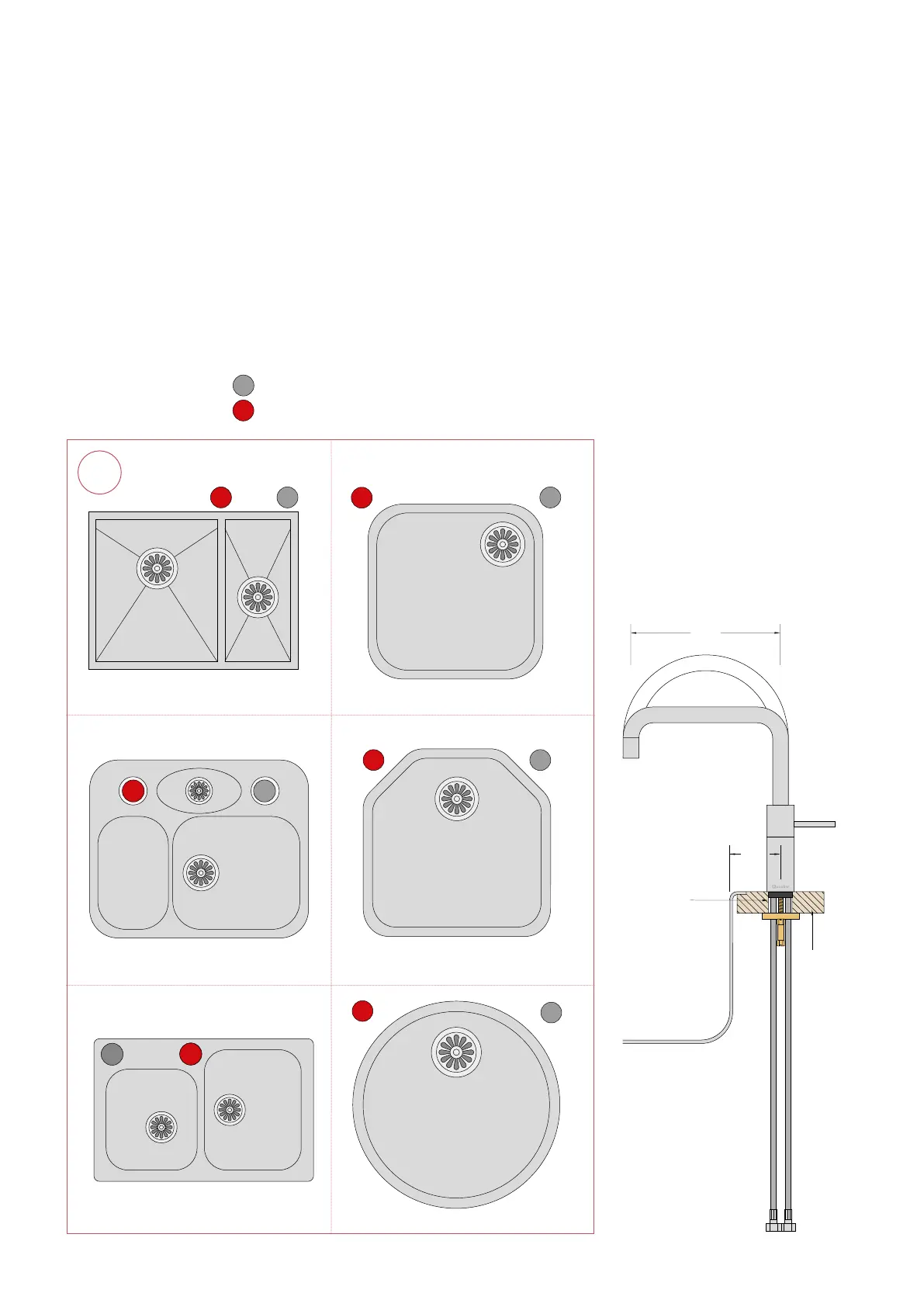

The images below offer some advice on where to best position the mixer tap.
The Nordic mixer taps have a reach of 22.5 cm from the centre of the tap hole – keep this
in mind when choosing the tap position.
M Q
M
Q
M
Q
Q
M
M Q
Q
M
Q
M
M
Q
Hole Ø35
75
Dimensions in mm
±70
220
75214500
Max. thickness 50
77
Boiling-water tap
Mixer tap
