8.3 Procedure for the regulation of the extension sides and the front scraper (check also the part
minimum working height from the table technical characteristics page 8):
1. Put the machine on an homogeneous floor;
2. Turn the register roller clockwise; the roller height compared to the floor indicates the working
depth while working;
3. Adjust the extension sides and the front scraper in such a way that the lower profile of these parts
has the same level of the lower part of the roller. (Fig. 11).

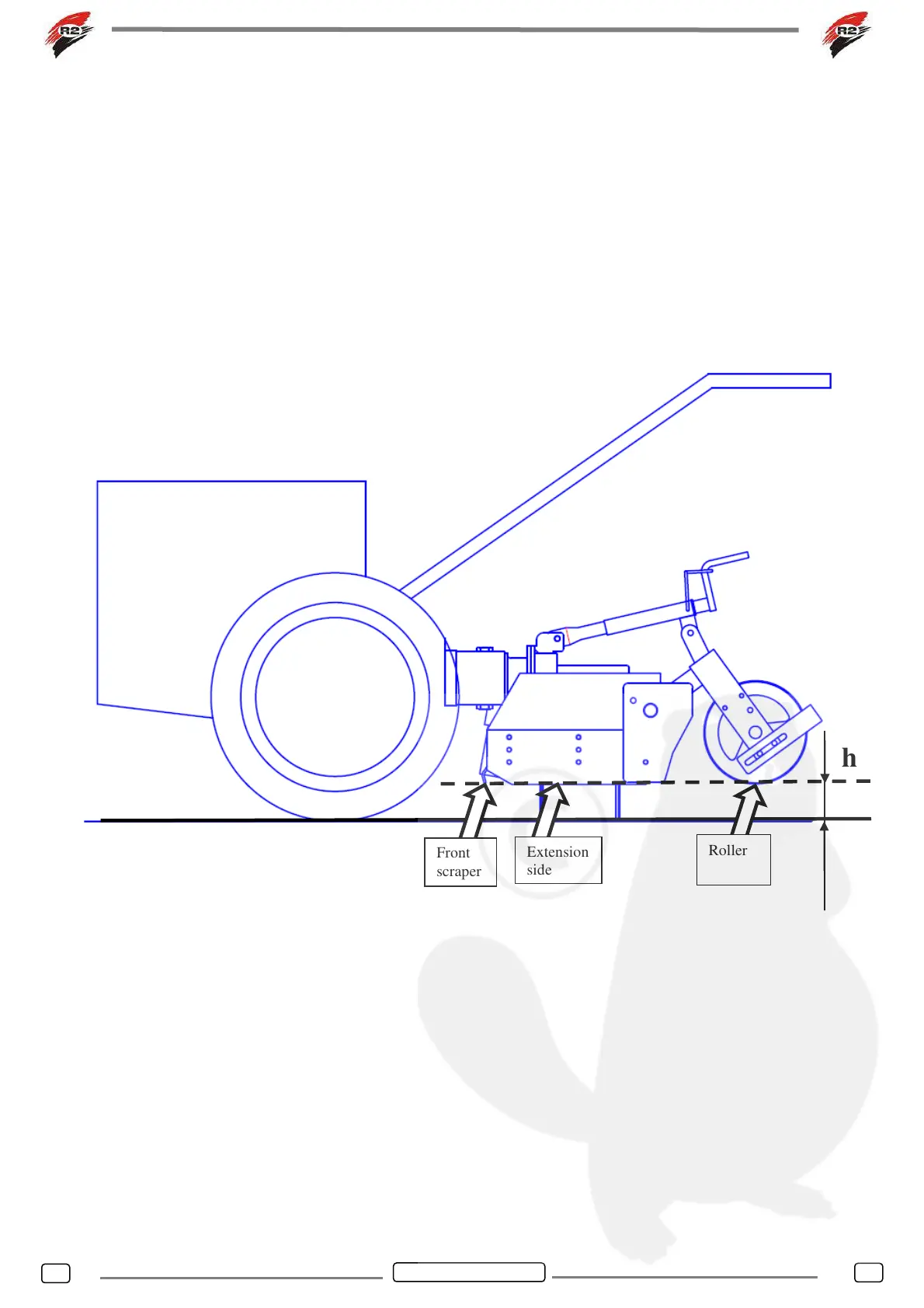

Fig. 11
Extension
Front
scraper
Roller
