(*note 5 mod. hi)
In the hydraulic machines the register roller is a screw crank and follow the same steps as those
described in the paragraph for the rod register.
In this type of machines the tractor connection is supplied by the reseller. Address to the reseller for
the assembly connection instructions of the Mill Grader R2-Tractor.

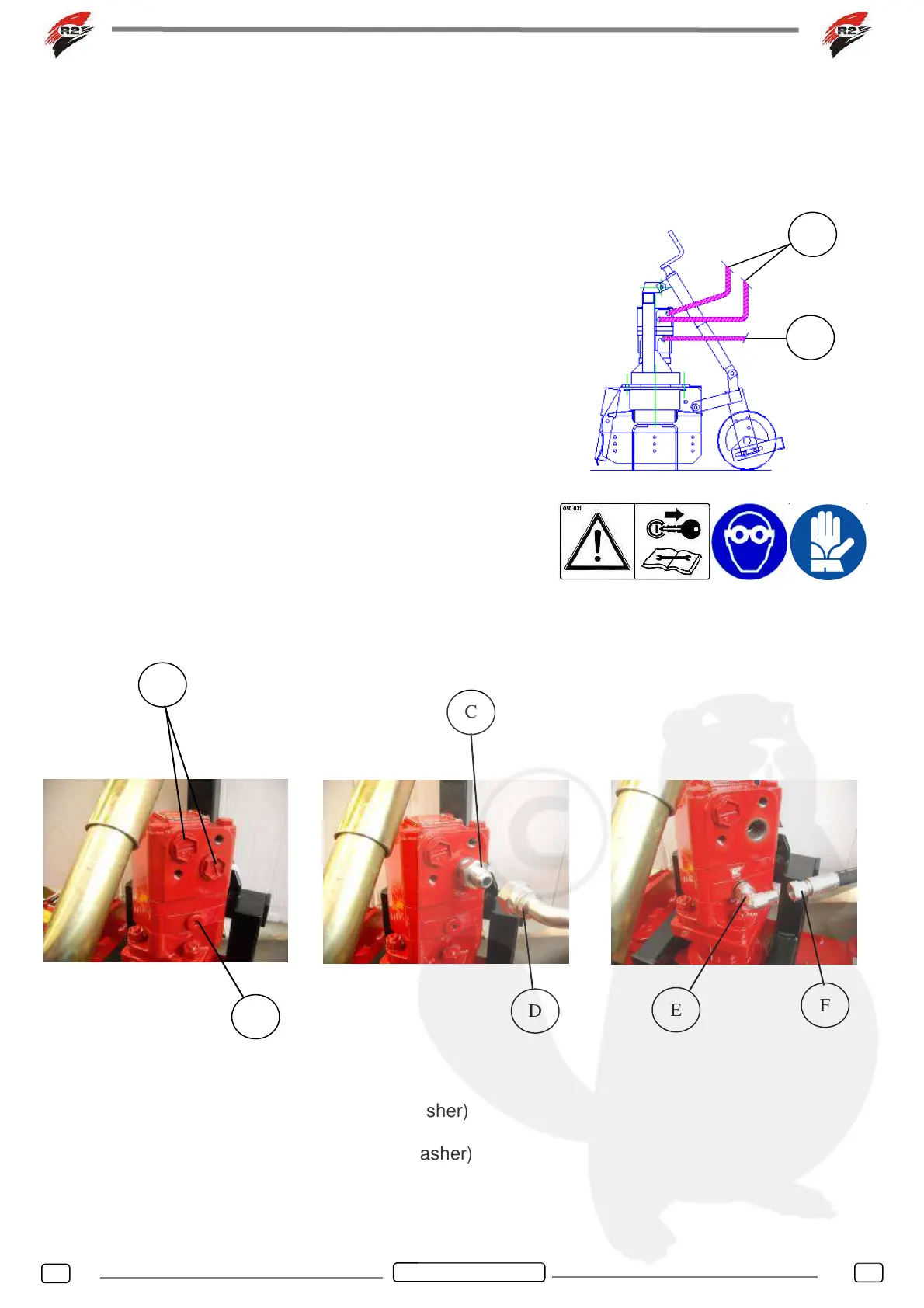

Fig. 19
Hydraulic circuit connection
A –
G1/2” main ports thread depth 15 mm
B –
G1/4” drain port thread depth 15 mm
Screw the hoses to the engine and fit them through the
quick coupling to the feed circuit and tractor drain (Fig. 19,
20).
Note: the Mill grader R2 can work in both sense of rotation.
Always wear gloves and protective glasses.
Fig. 20
A: Main ports
B: Drain port
C: Pipe-connecting feed hose ( with sealingwasher)
D: Feed hose
E: Pipe-connecting drain hose (with sealing washer)
F: Drain hose
A
B
C
D
E
F
A
B
