Eurgle 2.4Ghz 3 Ch LCD Wheel
Digital Programmable Radio Gear
rcps2805004
Join our FREE Membership and accept 10%off Offer! R2hobbies.com

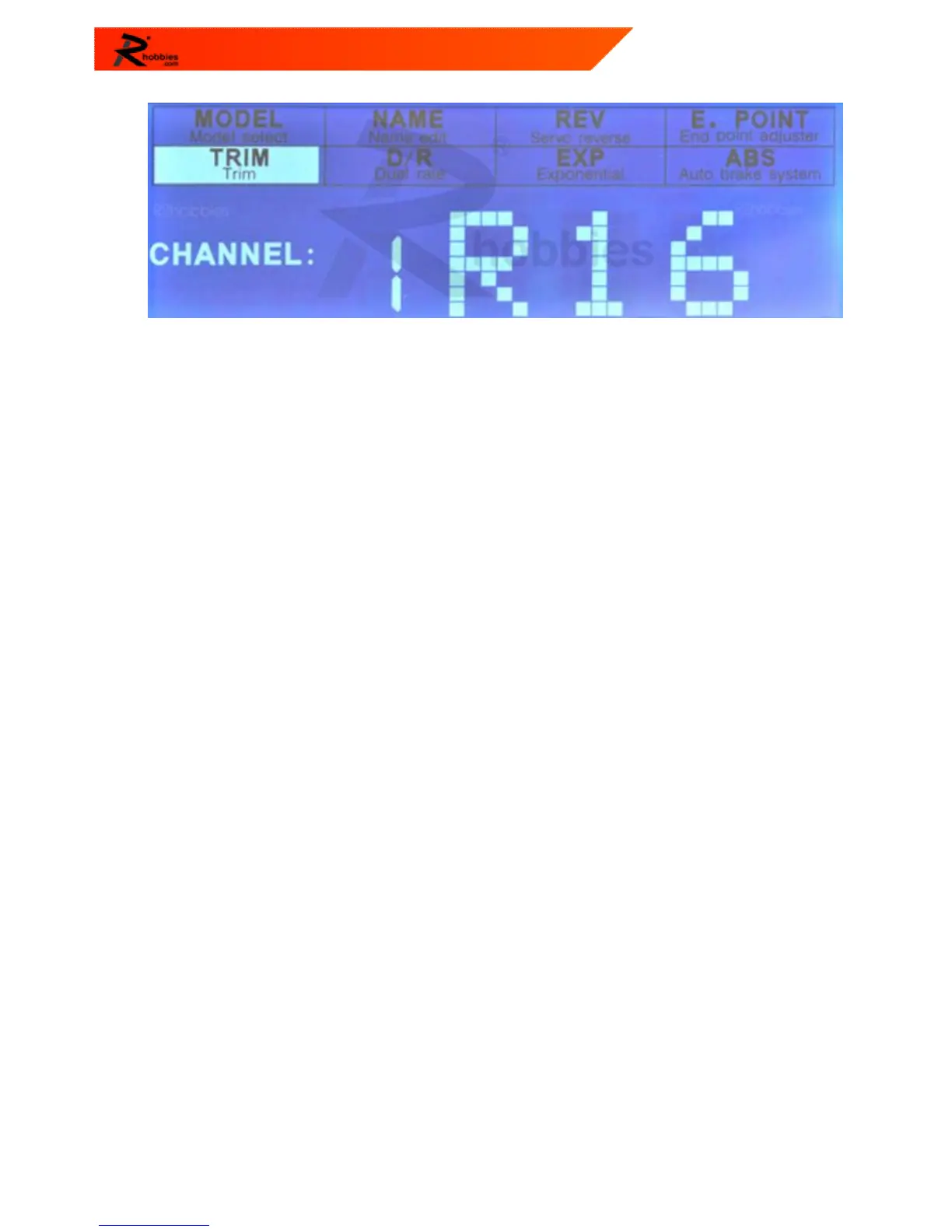

 TRIM
1. Function explanation
- Use this function to adjust the neutral position of the steering, throttle and channel 3 servos.
2. Parameter specification
- CHANNEL: 1 to 3
- R30: steering or 3rd channel right side, adjustment range: 0~30(initial value isN00)
- L30: steering or 3rd channel left side, adjustment range: 0~30(initial value is N00)
- F30: throttle forward side, adjustment range: 0~30(initial value is N00)
- B30: throttle backward side, adjustment range: 0~30(initial value is NOO)
3. Operation
- Press the “ENTER” button and turn to select the TRIM option. The selected function will be
blinking.
- Select the channel by turning the “ENTER” button, and then press the “END” button (now
the percentage will be blinking). Turn the “ENTER” button to adjust the rate.
- Press the “END” button to finish the setting. The rest can be done in the same way. After
finishing the setting of three channels.
- Press the “ENTER” button to return to menu screen.
- Press “BACK” to return to the opening screen.
