Eurgle 2.4Ghz 3 Ch LCD Wheel
Digital Programmable Radio Gear
rcps2805004
Join our FREE Membership and accept 10%off Offer! R2hobbies.com
D/R
1. Function explanation
- By setting the dual rates function, you can limit the total travel of each individual Channel.
2. Parameter specification
- CHANNEL : 1 to 3
- Dual Rate : 100%,
When you want to increase the servo travel, turn the button to increase the rate.
When you want to decrease the servo travel, turn the button to decrease the rate.
0% is no signal output, 100% is maximum signal output.
- Adjustment range : 0~100% (Initial value is 100%)
3. Operation

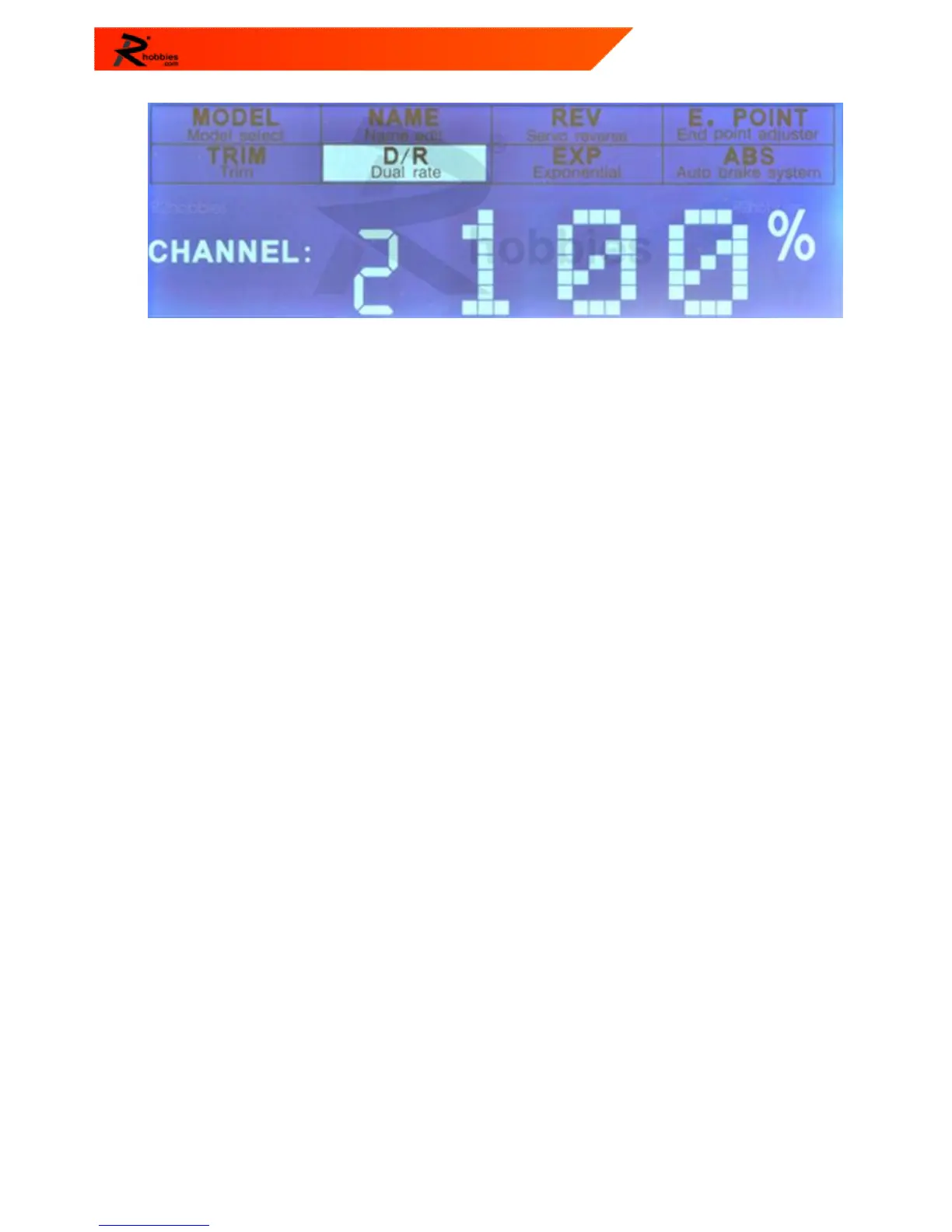

- Press the “ENTER” button and turn to select the D/R option. The selected function will be
blinking. Select the channel by turning the “ENTER” button, and then press the “END” After
this, press the “END” button to finish the setting. The rest can be done in the same way.
- Press the “ENTER” button to return to menu screen.
- Press “BACK” to return to the opening screen.
