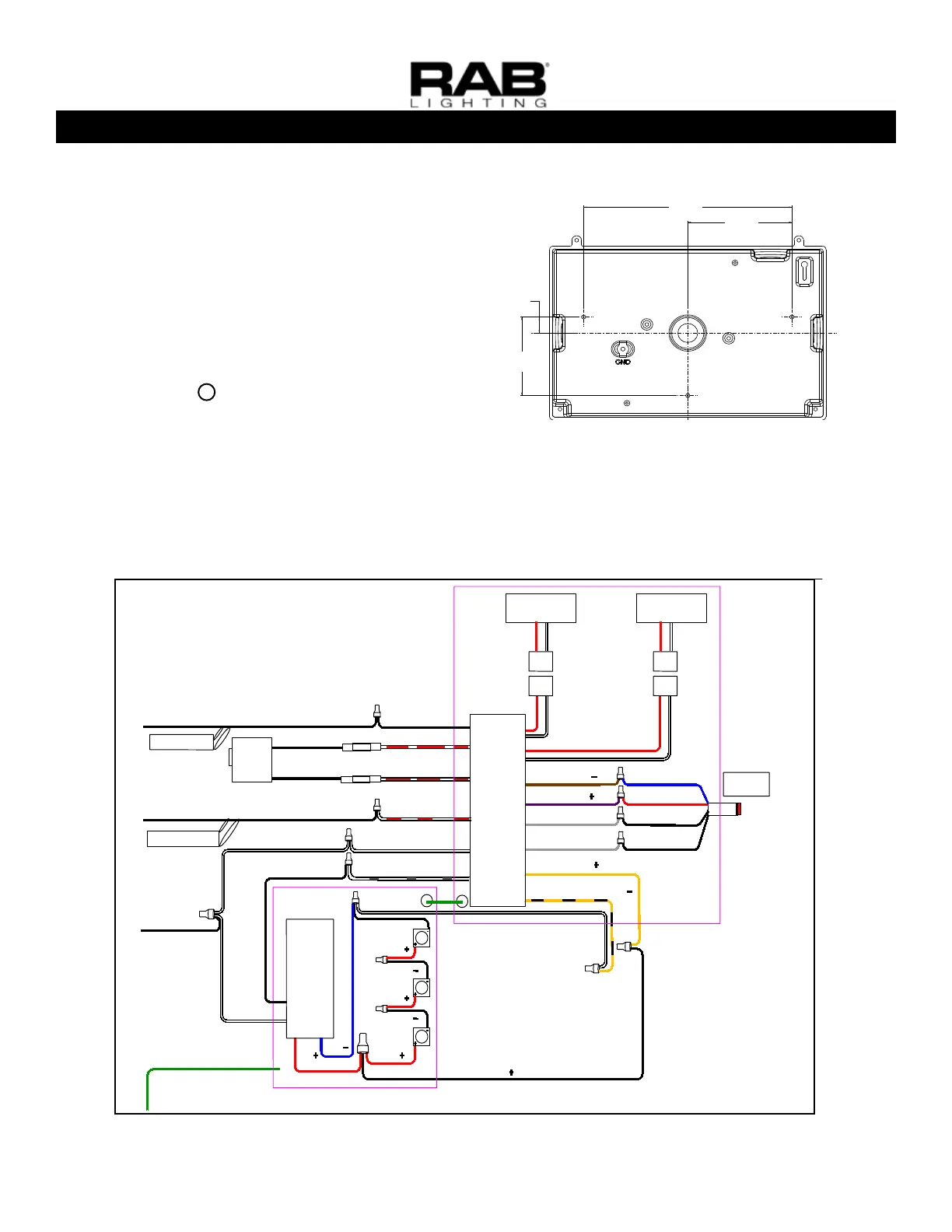

FFLED18 EMERGENCY INSTALLATION SHEET
CLEANING & MAINTENANCE
CAUTION: Be sure xture temperature is cool
enough to touch. Do not clean or maintain while
xture is energized.
1. Clean glass lens & xture with non-abrasive glass
cleaning solution.
2. Do not open xture to clean the LED. Do not touch
the LED.
US: Pat. D643,147; CN: ZL201130171304.1; MX: pending;
TW: Pat. pending; CA: D RAB Lighting Inc. Patent Pending.
Note: These instructions do not cover all details or variations
in equipment nor do they provide for every possible situation
during installation, operation or maintenance.
2.940
[74,68]
7.500
[190,5]
.600
[15,24]
3.750
[95,25]
DRILL TEMPLATE
FFLED18 (3X6)
EMERGENCY 120V OR
277V
WIRING DIAGRAM
2.22.12
LED18W EMERGENCY
120V OR 277V WIRING
KS
AC DRIVER
COM
GROUND
BODINE
BSL722 LED
EMERGENCY
DRIVER
BATTERY 1
LEAVE OPEN
DO NOT CONNECT
DURING
MANUFACTURING
CUSTOMER SHOULD
CONNECT ONLY AFTER
FINISHING WIRING TO AC
POWER. BATTERY COULD
HAVE CHARGE & SHOCK
RED-WHITE STRIPE
RED
FUSE
HOLDER
CHARGING
INDICATOR LIGHT /
TEST SWITCH
BLUE
WHITE
YELLOW
YELLOW - BLACK STRIPE
FFLED18
UNSWITCHED HOT
CHARGING
INDICATOR/
TEST
SWITCH
BLACK
WHITE
WHITE/BLACK
VIOLET
BROWN
BLACK
RED-WHITE STRIPE
BLUE
BLACK
BLACKGREY
GREY
WHITE
WHITE
WHITE
WHITE
WHITE - RED STRIPE
WHITE
BLACK
WHITE
BLACK
BLACK
BLACK
BLACK
SWITCHED HOT
BLACK
RAB LABEL - ADD
RAB LABEL - ADD
LABEL PROVIDED
BATTERY 2
EMERGENCY
HOUSING
RED
RED
RED
RED
RED
RED
RED
BLACK
RED
FFLED18/E WIRING DIAGRAM (Refer to next page for FFLED18/EC wiring diagram)
7.5”
3.75”
0.6”
2.94”
