FUTURE FLOOD INSTALLATION INSTRUCTIONS
Thank you for buying RAB lighting xtures. Our goal is to design the best quality products to get the job done right. We’d like to hear your comments.
Call the Marketing Department at 888-RAB-1000 or email: marketing@rabweb.com
TROUBLESHOOTING
1. Is the proper lamp is installed? Check the wattage and
ANSI code on the xture label against markings on
the lamp. Refer to Replacement Lamp table above for
verication.
2. Make sure the lamp is not defective. Try a lamp known to
be in operating condition.
3. Check that the line voltage at xture is correct. Refer to
wiring directions.
4. Is there voltage at the lamp socket? If there is no voltage,
check all connections.
5. Is the xture is grounded properly?
6. Is the photocell is functioning properly (if used)?
ACCESSORIES AND
REPLACEMENT PARTS
Chrome Wire Guard: GDFF
Door and Frame with Glass: LFF (bronze)
LFFW (white)
Swivel Arm: FFLARMA (bronze)
FFLARMW (white)
Factory Installed Photocell: “/PC” (120V)
“/PC2” (277V)
“/PCS” (Swivel 120V)
Note: These instructions do not cover all details or variations in
equipment nor do they provide for every possible situation during
installation, operation or maintenance.
FF-IN-0113

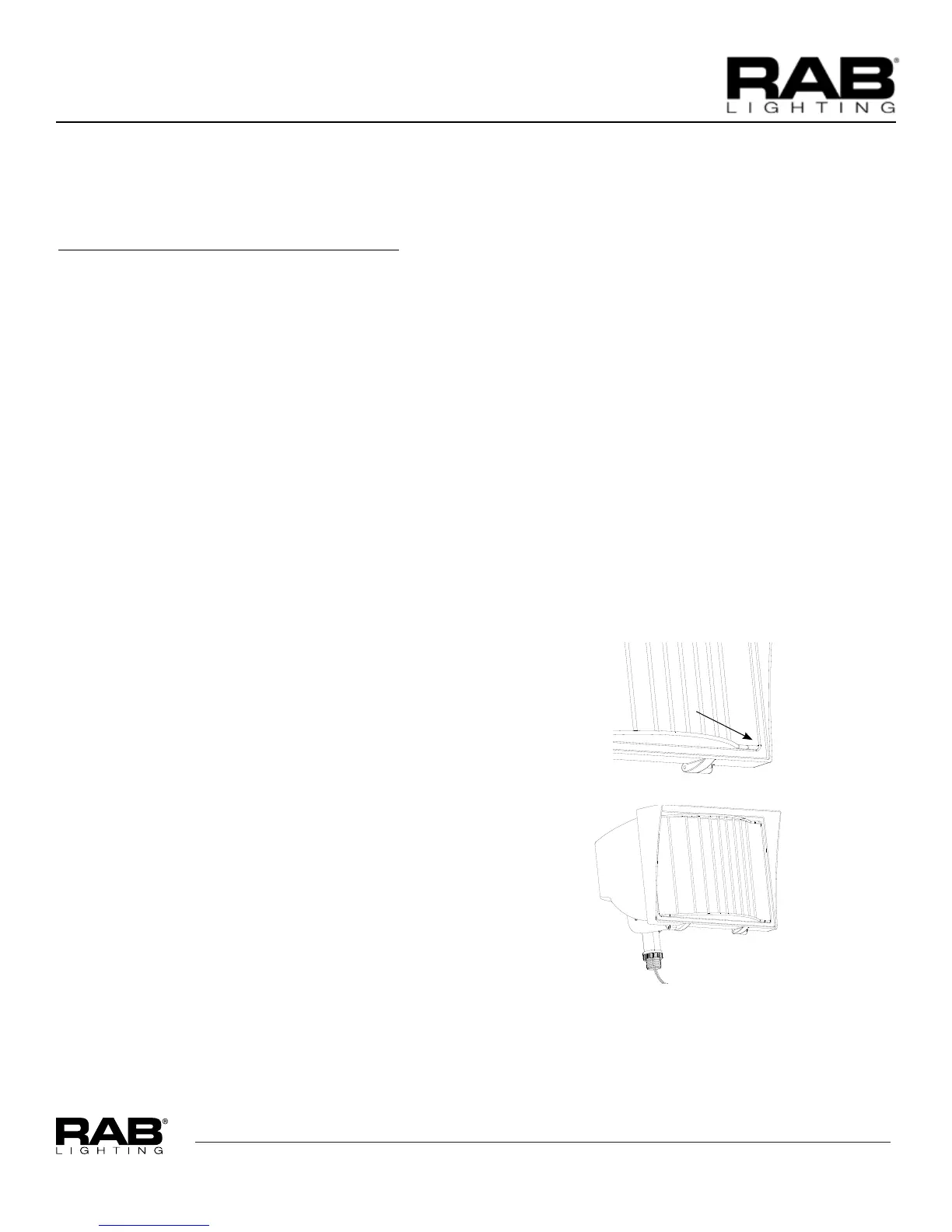

GUARD INSTALLATION
1. Slide top and bottom ends of one side of guard into
notches in the door frame.
2. Squeeze guard and slide the other ends of the guard into
notches on the opposite side of the frame.
Easy Installation & Product Help
Tech Help Line
Call our experts 888 RAB-1000
©2012 RAB LIGHTING Inc.
No
rthvale, New Jersey 07647 USA
rabweb.com
Visit our website for product info
email
Answered promptly sales@rabweb.com
REPLACEMENT LAMPS AND BALLASTS
Lamp ANSI Ballast
Wattage Catalog# Code Catalog#
High Pressure Sodium
35 LHPS35 S76 BHPSN35
50 LHPS50 S68 BHPSN50
70 LHPS70 S62 BHPSN70
100 LHPS100 S54 BHPSN100
150 LHPS150 S55 BHPSN150
Metal Halide
50 LMH50 M110 BMHN50
70 LMH70 M98 BMHN70
Compact Fluorescent Base Type
42 LCFL42 GX24q-4 BCLF42
