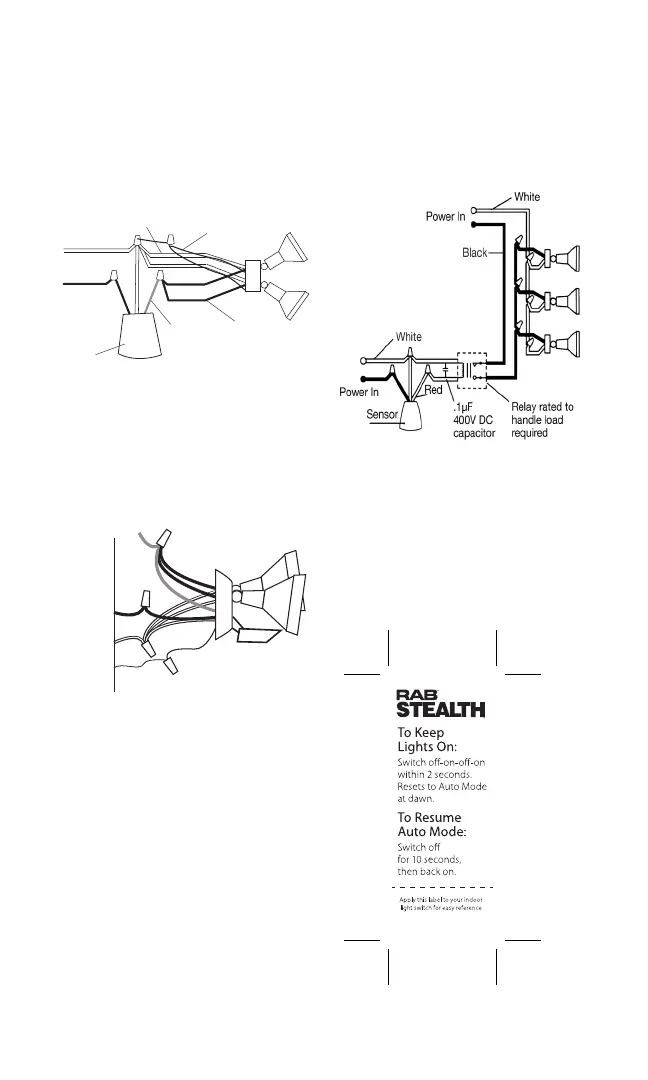

RAB Stealth STL110 - Wiring Diagrams; Basic Wiring Diagram; Basic Kit Wiring Diagram; Multiple Fixtures

4
Multiple Fixtures
Black
Black
Red
Red
(pigtail)
Ground
Ground
Power In
White
White
Red pigtail only used to switch remote or additional xtures
Wiring Diagrams
Basic Wiring Diagram
Power In
Sensor
Red
Black
White Ground
Basic Kit Wiring Diagram
Note: Pigtail is only used to switch
remote or additional light xtures.
• Multiple xtures may be wired to
a single sensor
• To handle loads greater than
300W watts, a qualied
electrician should install a relay.
Switchplate Label
Switchplate label has self-adhesive backing.
Power Quality
It is not recommended to install
sensors on a circuit that also feeds
motor loads such as HVAC equipt-
ment, kitchen appliances, or garage
door openers. The STEALTH circuit is
surge and transient protected to IEC
specications. However, if voltage
varies signicantly from 120 volts,
sensor may malfunction.
Attach
STEALTH
operating
instruction
label to
switchplate
for quick
and easy
reference.
