Getting Started Manual
About This Manual
This manual provides instructions for installing, testing, configuring, and interconnecting
the Rabbit 2000 microprocessor using the Jackrabbit controller and the Jackrabbit Devel-
opment board.
Assumptions
Assumptions are made regarding the user’s knowledge and experience in the following
areas:
• Understanding of the basics of operating a software program and editing files under
Windows on a PC.
• Knowledge of basic assembly language and architecture for controllers.
For a full treatment of C, refer to the following texts:
The C Programming Language by Kernighan and Ritchie (published by Prentice-
Hall).
and/or
C: A Reference Manual by Harbison and Steel (published by Prentice-Hall).

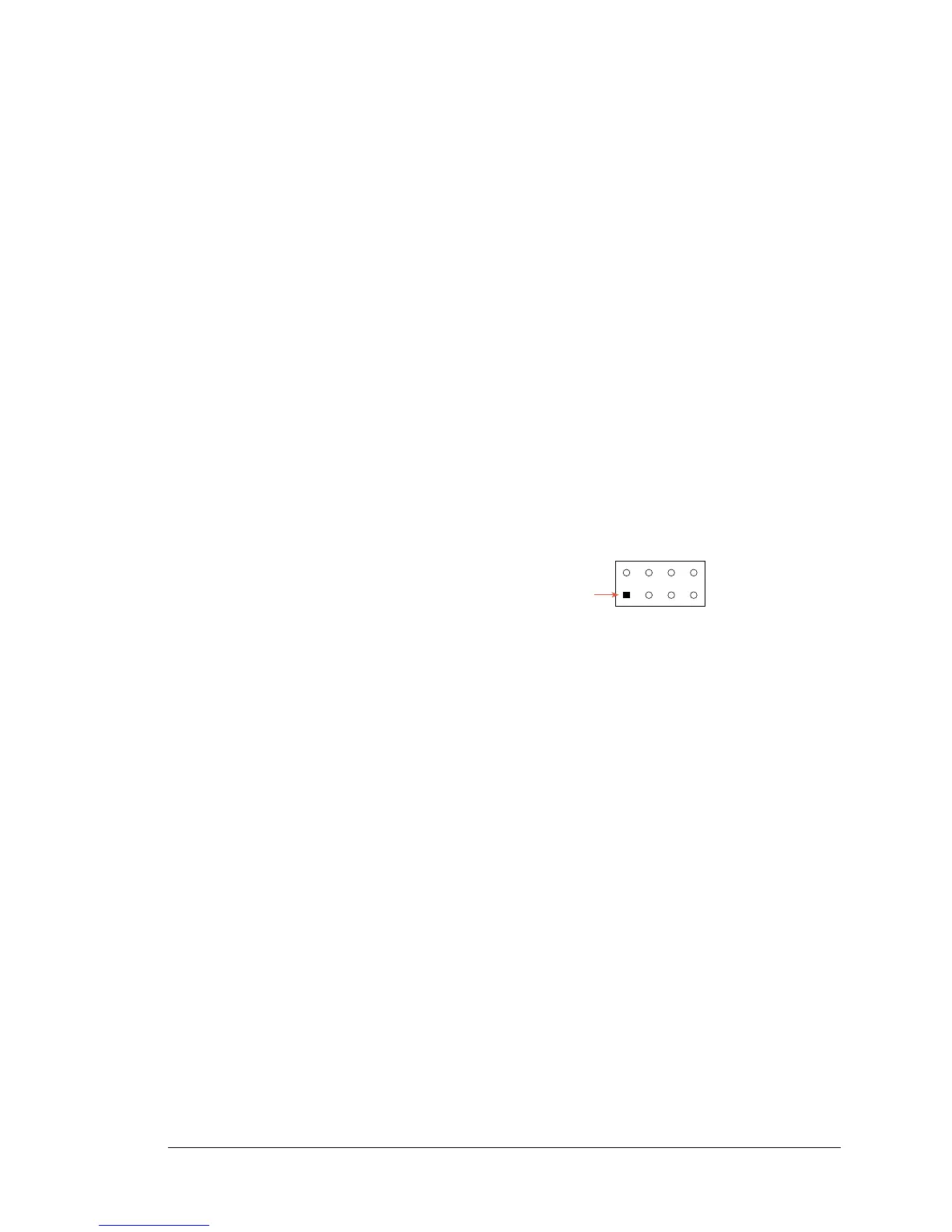

Pin Number 1
A black square indicates pin 1 of all headers.
Measurements
All diagram and graphic measurements are in inches followed by millimeters enclosed in
parenthesis.
