Cabling Diagrams
G-6 Verbatim Owner's Manual

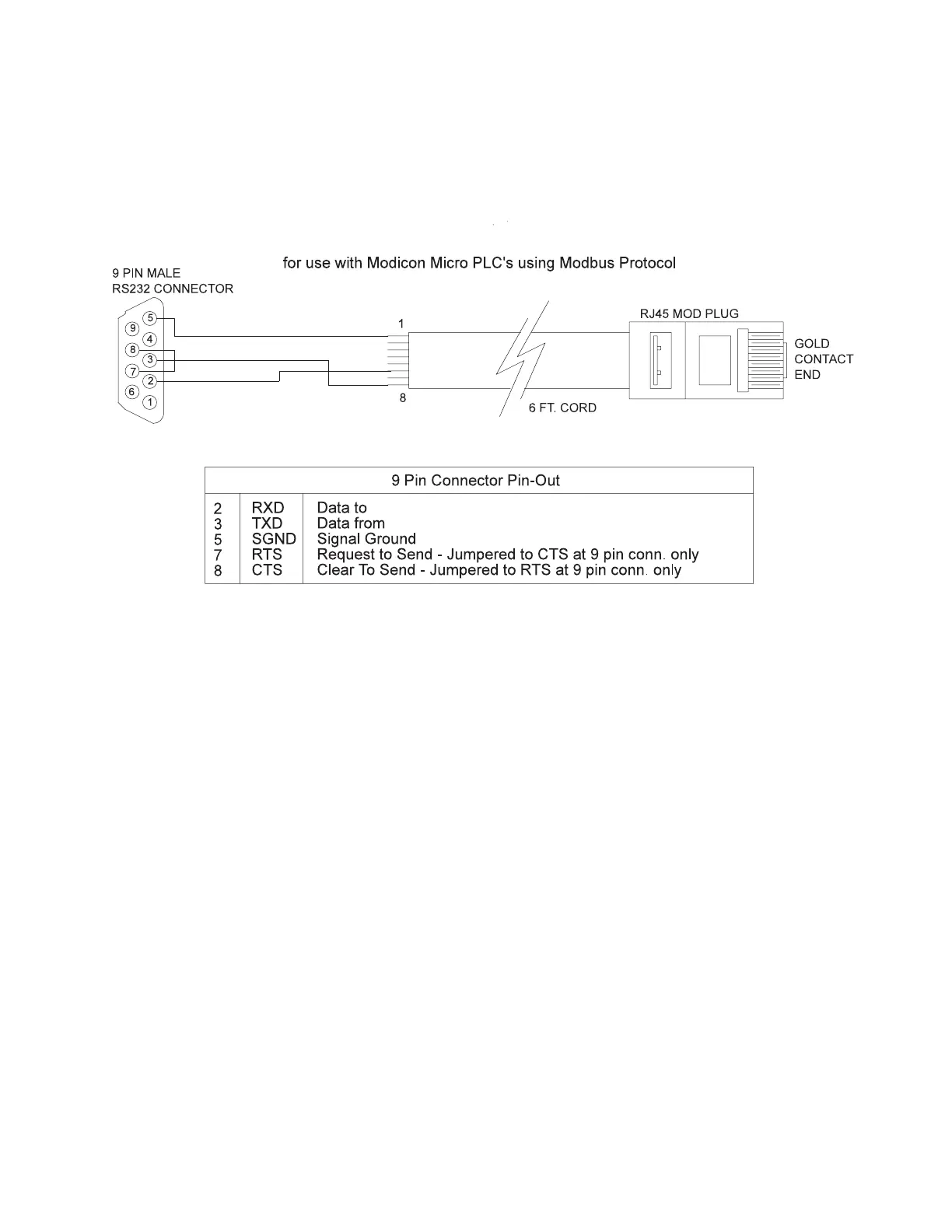

G.5 RACO VMBM-1 Serial Cable Connection
Diagram
Note:
Connection to Modicon Micro PLC requires use of Modicon Cable Part
Number 110XCA28201, 110XCA28202, or 110XCA28203 plus adaptor
110XCA20300. This combination of cable plus adaptor mates with above
RACO cable. The Modicon cable is a flat, eight wire cable with RJ-45 male
connectors on each end. The Modicon adaptor is an RJ-45 female to D-sub 9
Pin female adaptor.
