H.1 Adjusting Internal Speaker Volume

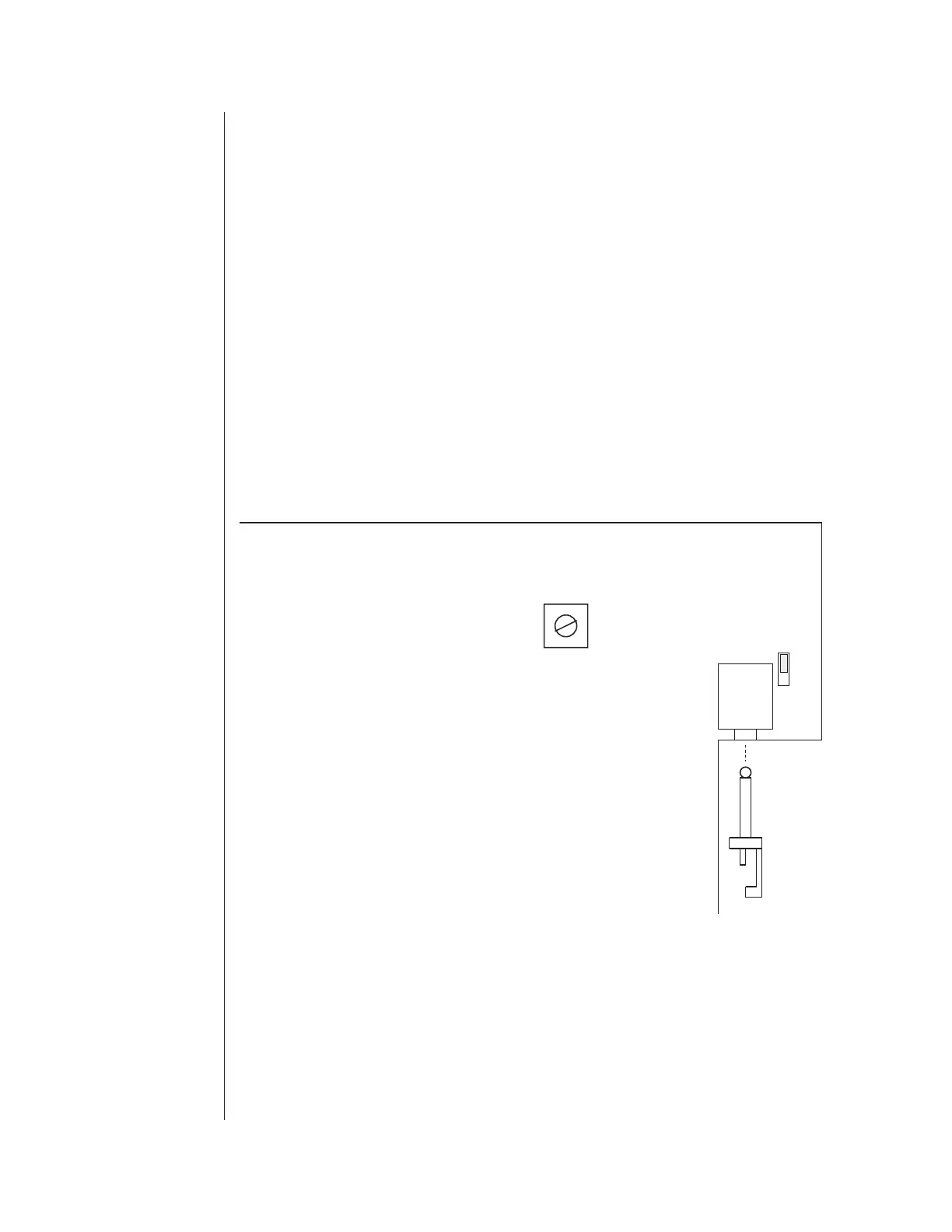

Speaker volume may be adjusted via the trimpot marked SPKR VOL located in
the upper right hand area of the main circuit board.
This trimpot also adjusts the level of the audio signal that can be obtained via
jack AJ1. However, sensitive audio systems may require an additional signal
level attenuator in order to prevent overloading.
AJ1
JB8
SPKR
VOL
MINI PLUG
HOT
COMMON
GROUND
