Installation
Verbatim Owner's Manual 2 - 3
The common returns for all inputs are connected to TS1 terminals marked "C". These four
"C" terminals are connected together and to electrical ground.
4 Channel Verbatim: Connect one side of each contact to the corresponding numbered
terminals on TS1. The other side of each contact connects to the common return
(the "C" terminals on TS1).
8 Or More Channel Verbatim: Connect one side of each contact to the corresponding
numbered terminals on the VX32 expansion card. Connect the other side of each contact to
the common return (the "C" terminals on TS1 of the main board). Note that TS1 terminals 1
through 4 are not used in this case.

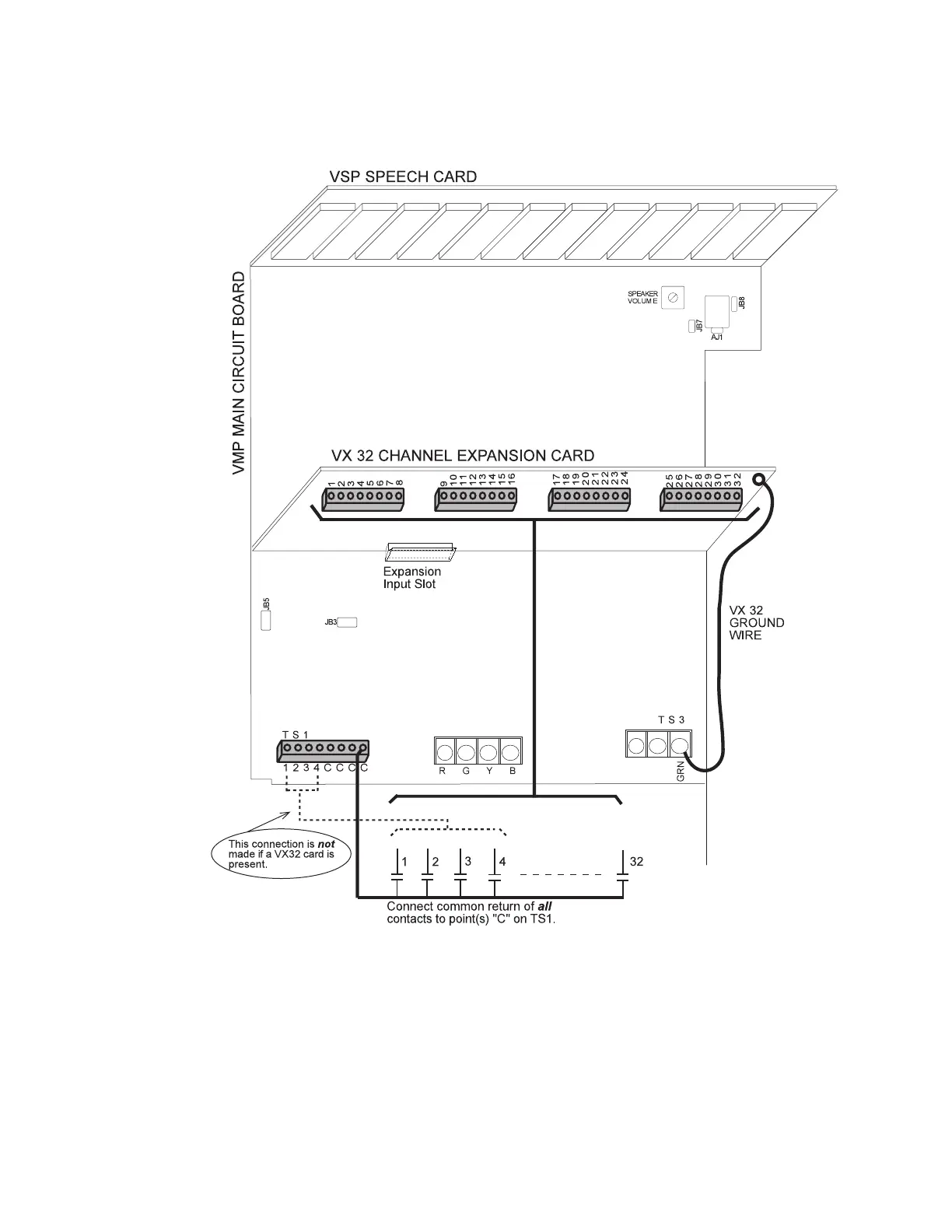

Electrical Connection Diagram For Dry Contact Inputs
Connect
12 Volt DC
Power
