Page 6

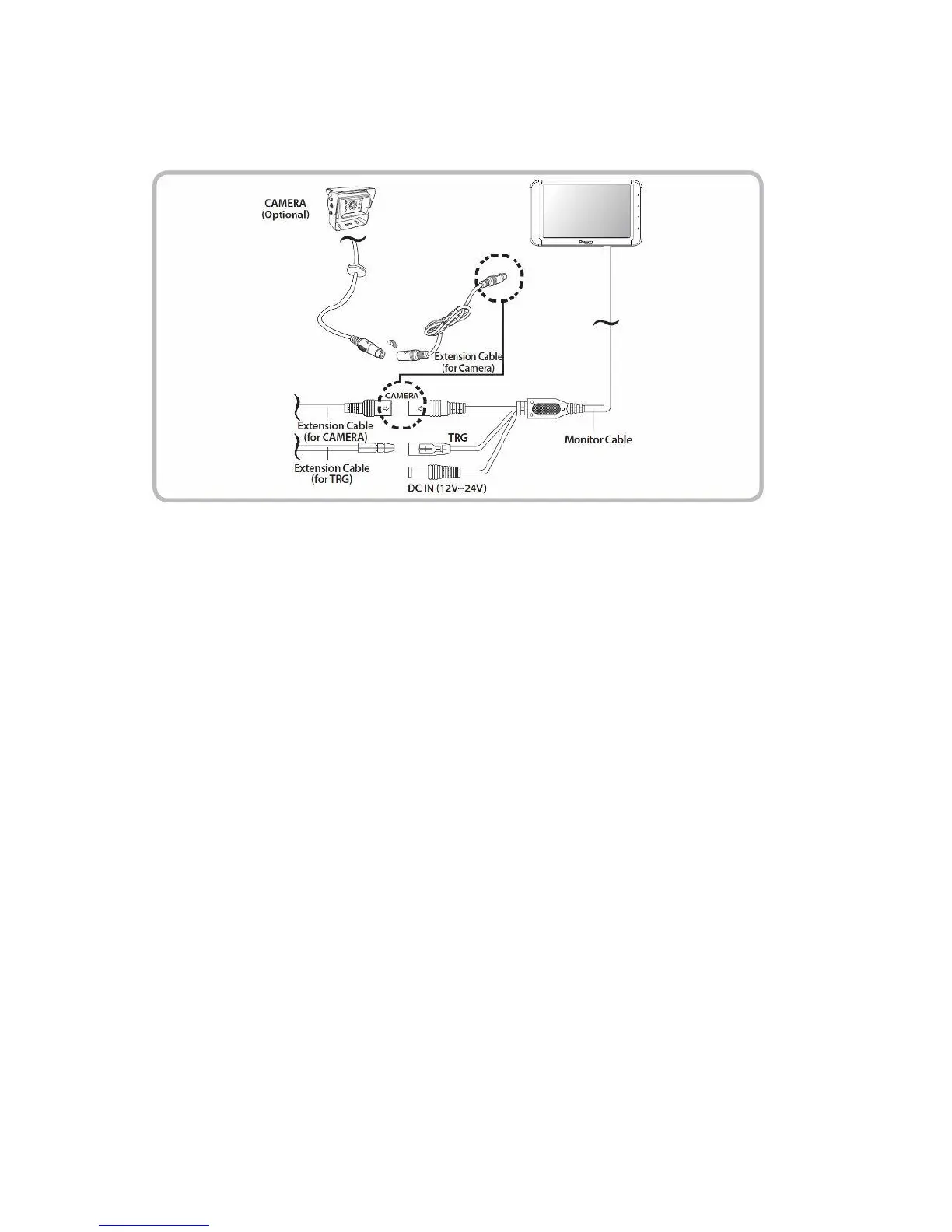

Cable Connection
 To avoid a short circuit, disconnect the ground terminal of the
vehicle battery prior to installation.

The arrows on the camera connection must align before fully
inserting connectors together.
 Test after installation to insure proper function of both the
monitor and camera.
