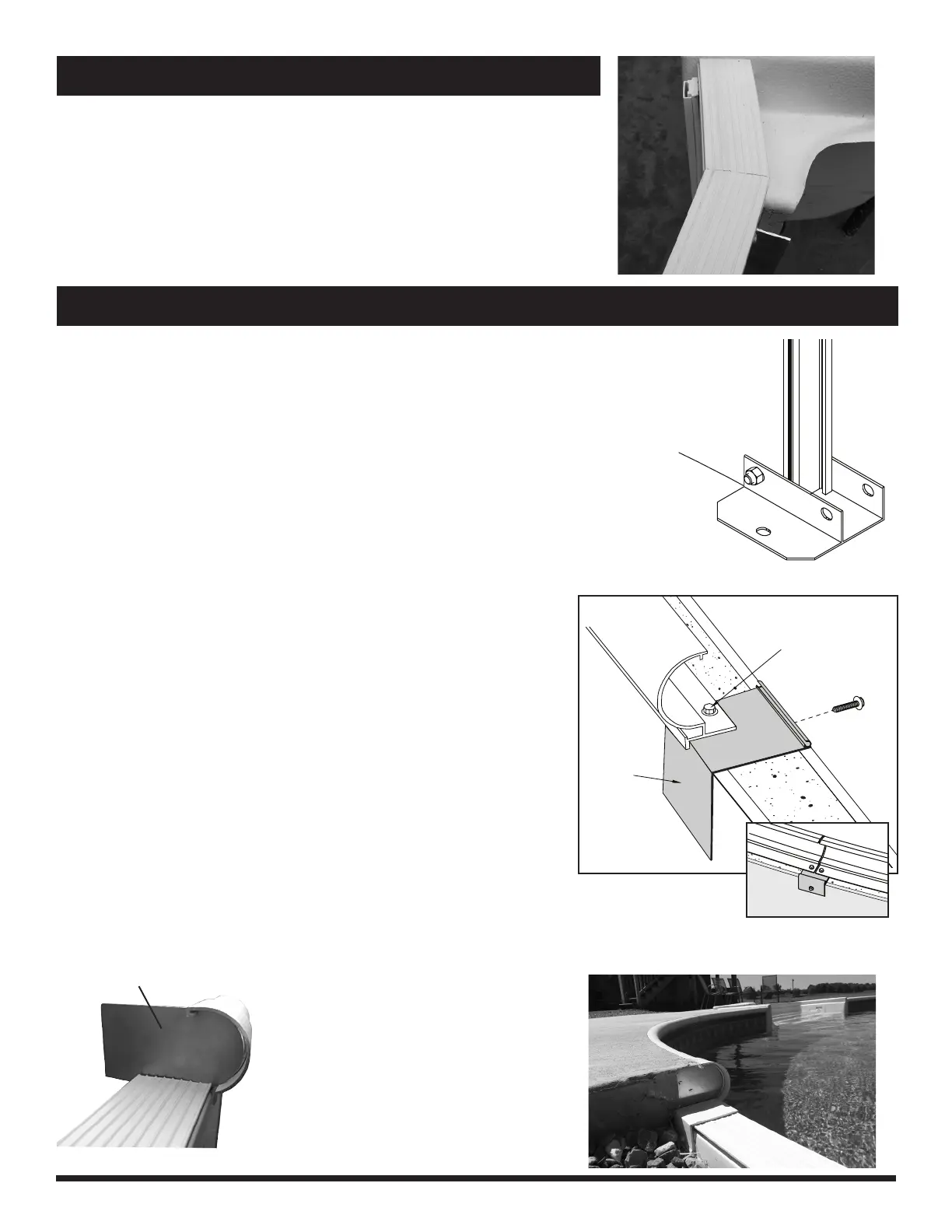

Wall Clips and Coping
CP2 and Paver coping installation must start with Radiant Nassau wall clips. They provide
a hard surface on the top of the wall to attach the coping to. CP2 coping is pre-bent to
a particular radius, Paver coping is notched to accommodate standard radii.
Place Nassau clips on the wall every 12” for paver coping and 18” for
CP2 coping, with the clip ridge on the pool exterior side. Do not Tek
screw to the wall yet as final placement will vary with coping length.
Place CP2 or Paver coping lengths on wall panel with a Nassau wall
clip centered at the beginning and end of the length. Secure the wall
clips to the panels and the coping to the wall clips with Tek screws
on the exterior side of pool.
The next length is placed adjacent to the end of the first length,
continuing around the pool. It is not necessary to leave spacing as
with the white plastic coping. If you are installing a walk-in step, start
at the step and continue around the pool, cutting the last length to fit.
Important: When all lengths are installed, apply a barrier between
the bottom of the coping and the top of the pool wall to prevent sand
and debris from getting in behind the liner. Silicone, foam sealant
or duct tape can be used.
For CP2 coping, install coping clips to cover the ends of the lengths.
Anchor Plates
Wall anchors are located at each compression seam. With a high speed metal drill
bit, drill two 7/16” holes on each side of the compression seam in each wall anchor
as shown. Insert a provided nut and 2 ½” bolt through each drilled hole as illustrated,
with the nut on the outside of the pool (fig.B).
Duplicate this process with the remaining anchor plates.
INGROUND: ANCHORS PLATES AND CP2/PAVER COPING INSTALL
Pool
Exterior
B.
Transition with Mixed Coping
End caps are available for installation
of CP2 and Metric plastic coping
combination. The end cap provides
a clean finish to the concrete and fits
inside the CP2 coping before the lower
profile of the Standard 2” or Premium
4” coping starts.
Tek screw
Wall Clip
Tek screw
Pool Exterior
Step to Radius Wall Panel
When installing a walk-in step with Standard 2” or Premium 4” plastic
coping, the coping length at the step should be miter cut to follow the
profile of the inside of the pool (as shown at right). Fill in gap between
coping and top of step with expandable foam to prevent any debris from
getting behind the liner.
INGROUND: WALK-IN STEP INSTALLATION
End Cap
To Next Page
