Radiant RSF 20 E - Page 23

Installation Manual
Combi - cod. 99943NA – November 2002
20

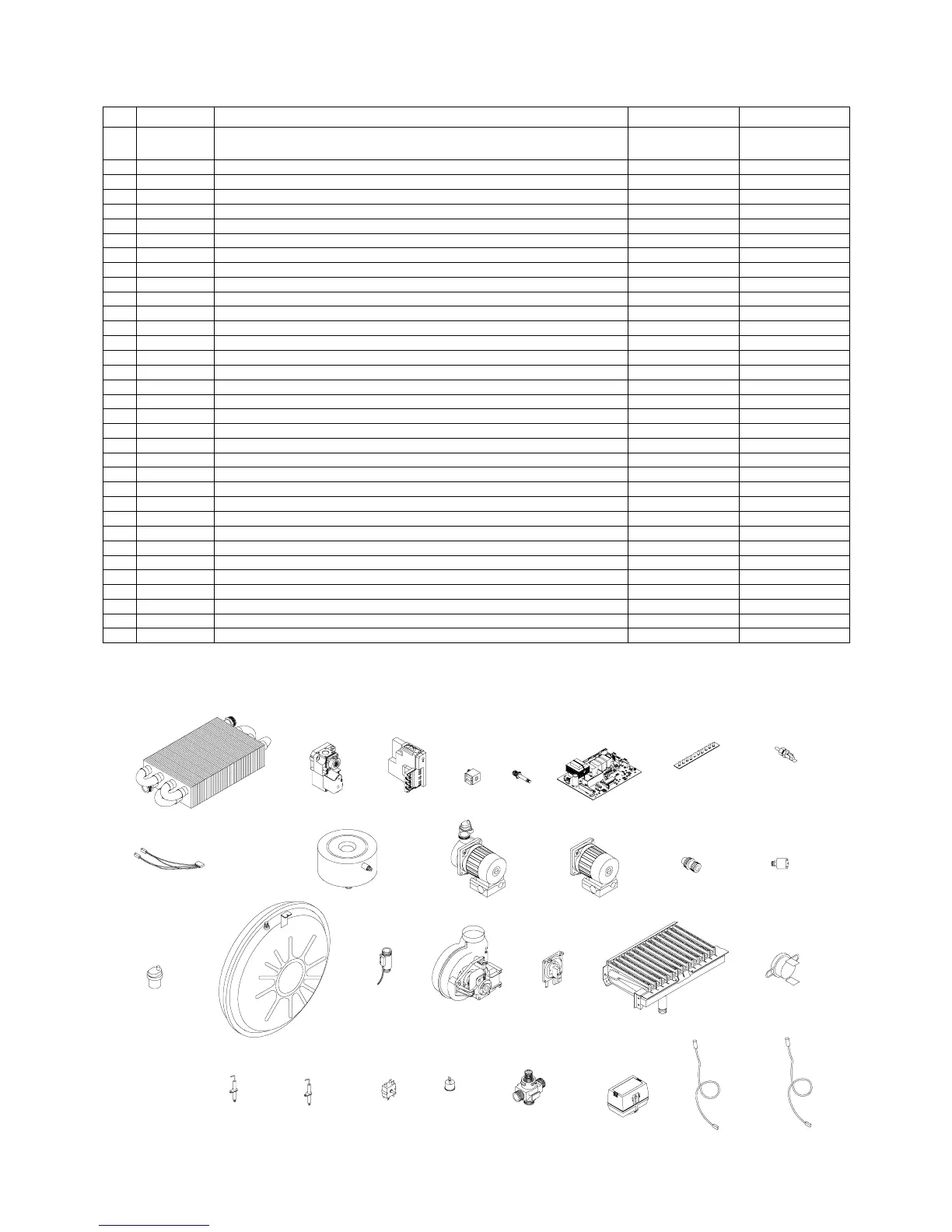

SPARE PARTS SHORT LIST
n° CODE DESCRIPTION RSF 20 E RSF 24 E
Room Sealed
Electronic Ignition
Room Sealed
Electronic Ignition
1 58006LP MAIN HEAT EXCHANGER Mod. 20.000 - 63 A
9
58007LP MAIN HEAT EXCHANGER Mod. 24.000 - 66 A
9
2 36064LA ELECTRONIC GAS VALVE VK4105 A 1035B
9 9
3 76616LA ELECTRONIC IGNITION BOARD S4565 A 2019
9 9
4 18003LA MODULATING COIL
9 9
5 97007LA MODULATING UNIT
9 9
6 76623LA PRINTED CIRCUIT BOARD RAMIRE 3 SM 20012
9 9
7 76622LA INDICATORS P.C.B. RAVI 2 CE
9 9
8 73507LA D.H.WATER – HEATING 1/8” SENSOR
9 9
9 31011LA D.H.W. – HEATING SENSOR WIRE
9 9
10 20029LA D.H. WATER EXCHANGER H20-H20 PC21
9
20035LA D.H. WATER EXCHANGER H20-H20 PC25
9
11 24027LA CIRCULATING PUMP GOLD 50V1 SHUL CLF6 W/ AIR VENT
9 9
12 24028LA CIRCULATING PUMP MOTOR
9 9
13 96008LA 3 BAR PRESSURE RELIEF VALVE 1/2’’
9 9
14 59010LA WATER PRESSURE SWITCH 1/8’’
9 9
15 96030LA AUTOMATIC AIR VENT VALVE 5020 3/8’’
9 9
16 95011LA 8 LT. EXPANSION TANK W/BRACKET
9 9
17 96007LA ELECTRONIC FLOWSWITCH - 1/2’’ CONNECTIONS
9 9
18 37008LA EXHAUST FAN 230V
9 9
19 59006LB AIR PRESSURE SWITCH CE C6065AH1095
9 9
20 21001LA GAS BURNER 13 R. 1,25 NATURAL GAS
9 9
21002LA GAS BURNER 13 R. 0,75 L.P.G.
9
21004LA GAS BURNER 13 R. 0,77 L.P.G.
9
21 86006LA SAFETY THERMOSTAT 95°C WATER
9 9
22 35007LA IGNITION ELECTRODE x ELECTRONIC
9 9
23 35009LA IONISATION ELECTRODE
9 9
24 47021LA 3 POSITION COMMUTATOR SWITCH R11C2X401
9 9
25 47014LA LOCK-OUT INDICATOR 60118C00
9 9
26 96023LA DIVERTER VALVE BODY VCZMG6000E
9 9
27 96022LA DIVERTER VALVE VC6012 MOTOR
9 9
28 31054LA IGNITION ELECTRODE CABLE x ELECTRONIC
9 9
29 31055LA IONISATION ELECTRODE CABLE
9 9
19
22
16
24
23 25
18
17
9
1
11 12
2
3
B
AB
A
26
H
27
20
21
2928
13
14
4
5
6
15
7
8
10
