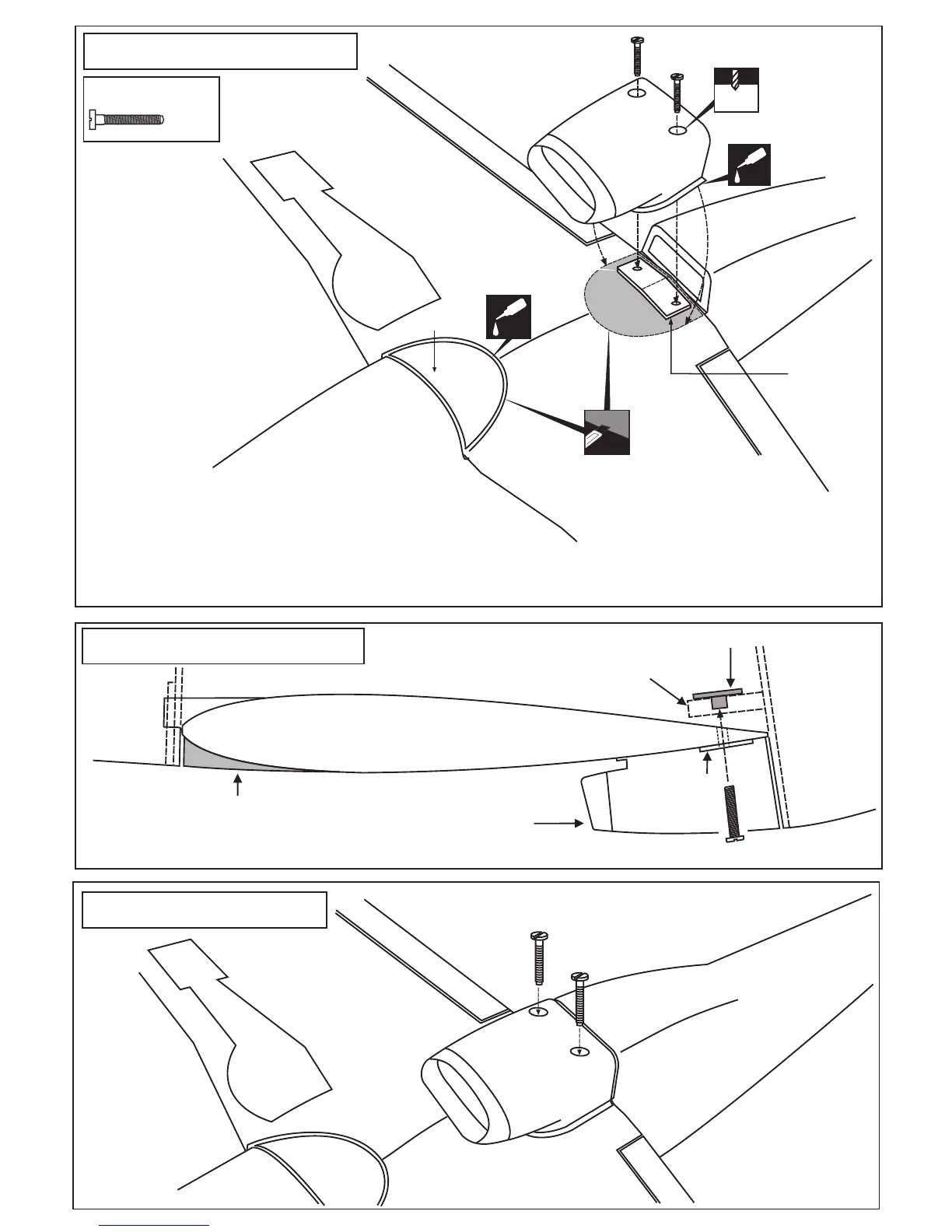

17- Installing the wing
BOTTOM-VIEW
Nylon wing bolt
CA
Cut away the covering inside the line
before install the air scoop and wing cover
Plastic air scoop
CA
Wing cover
BOTTOM-VIEW
Wing bolt plat
1/8”(3mm) ply
Wing bolt mount
Plastic air scoop
Plastic cover
6x40 plastic bolt
(Ply wood)
Plastic mount nut
Bottom
Wing bolt plat
1-Using the ABS air scoop as a template, trace around the outside edge of the ABS air-scoop,and then remove it.
2-Using a sharp hobby knife, cut away the covering inside the lines. Not to cut into the wood.
3-Apply the ABS air scoop in place and secure with CA glue. Do the same way with the ABS wing cover.
12mm
15/32”
6x40mm nylon bolt
.........2
WING
16- Air Scoop/wing cover
15- Air Scoop/wing cover
